Application
This reversing valve is used to switch the material flow in equipment pipelines and is widely used in industries such as food, brewing, beverages, dairy products, toothpaste, cosmetics, biopharmaceuticals, etc.
Work principle
This model uses compressed air to push the piston inside the pneumatic actuator up, and the piston rod and valve stem are connected with positioning cards. At the same time, when the air compression pushes the piston inside the pneumatic actuator up, it also pulls the valve stem up, that is, the valve opens. When the air compression is lower than the spring force or there is no gas compression, the piston is pushed down by the spring and drives the valve stem to move down, closing the lower valve port. Mainly used for fluid cut-off in pipeline systems, applied in pipeline systems.
Material Flow Diagram

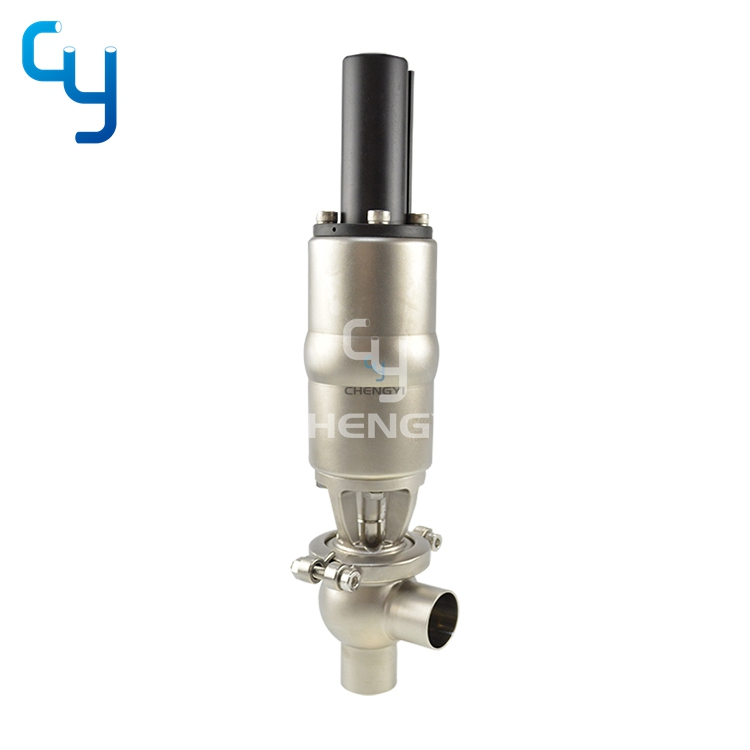

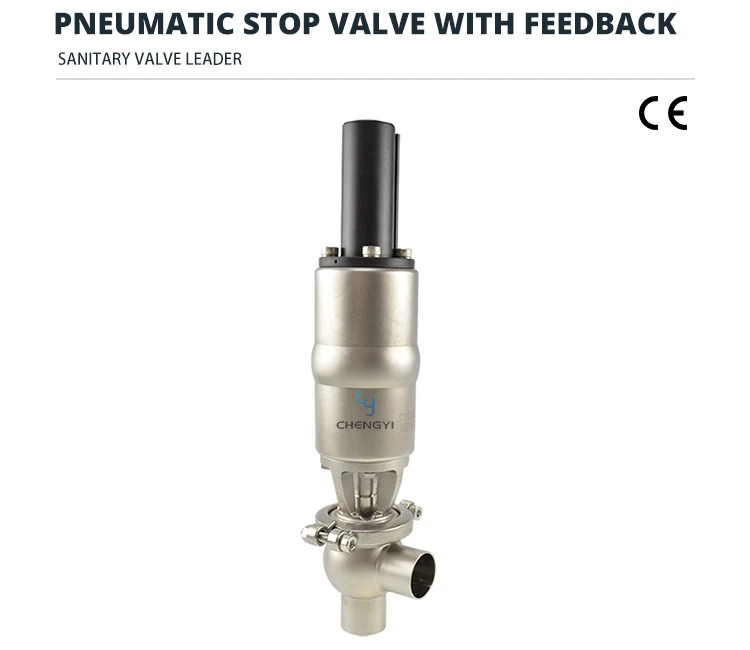

Pneumatic Stop Valve With Feedback
Interface Shape
Body Combination
