Application
This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.
Design features

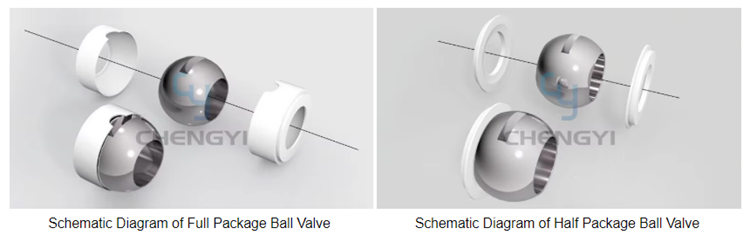

All-inclusive tee design,no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning, and heat resistance of 180℃, the highest pressure 10 bar.
Available with a variety of structures, such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key automatic control system.
Valve body can be replaced in any connections, and the length will not change.

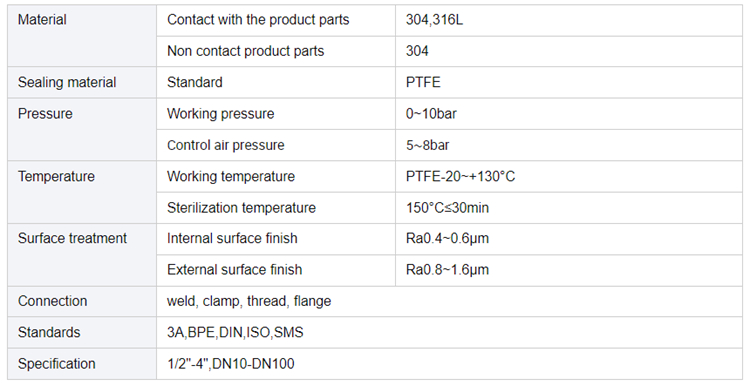

Technical Data
Material | Contact with the product parts | 304/316L(1.4301/1.4404) |
Non contact product parts | 304(1.4301) | |
Sealing material | Standard | PTFE |
Pressure | Working pressure | 0～10bar |
Control air pressure | 5～8bar | |
Temperature | Working temperature | PTFE(-20～+130℃) |
Sterilization temperature | 150℃≤30min | |
Surface treatment | Internal surface finish | Ra0.4～0.8μm |
External surface finish | Ra0.8～1.6μm | |
Connection | Connection: clamp, weld, thread, flange, etc | |
Standards | 3A, DIN, SMS, IDF, RJT, ISO | |

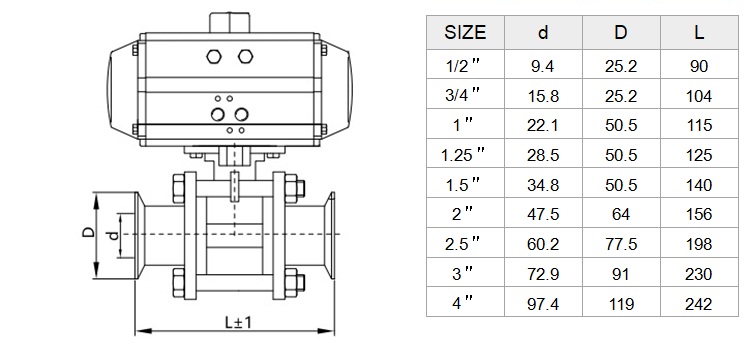

Specification | 1/2"-4", DN15-DN100 | |
Pneumatic control | Pneumatic head and fixed bracket | |

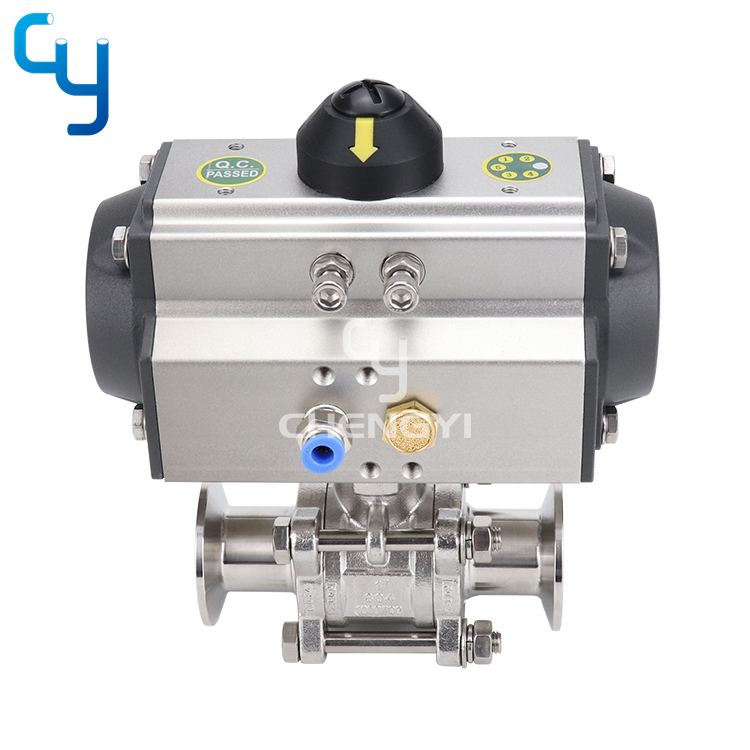

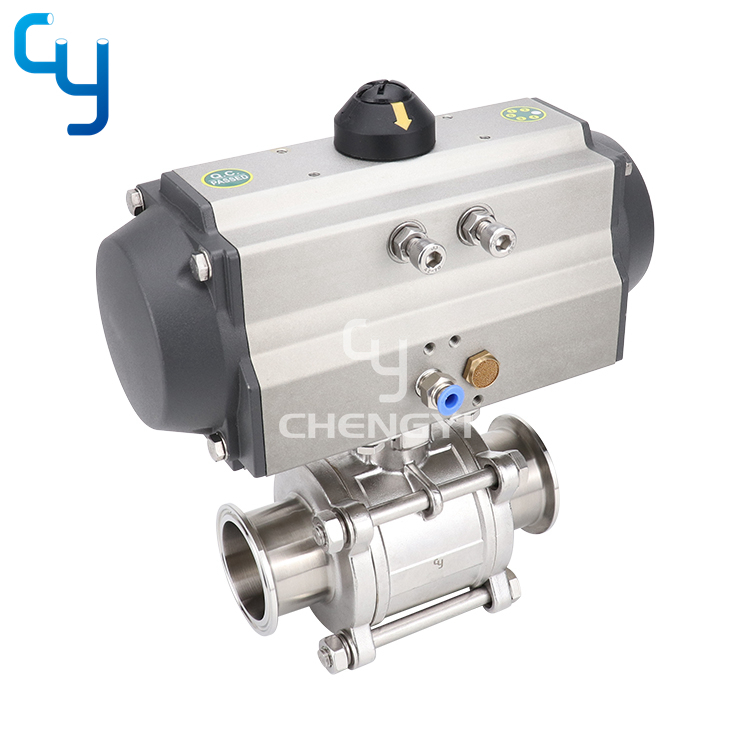

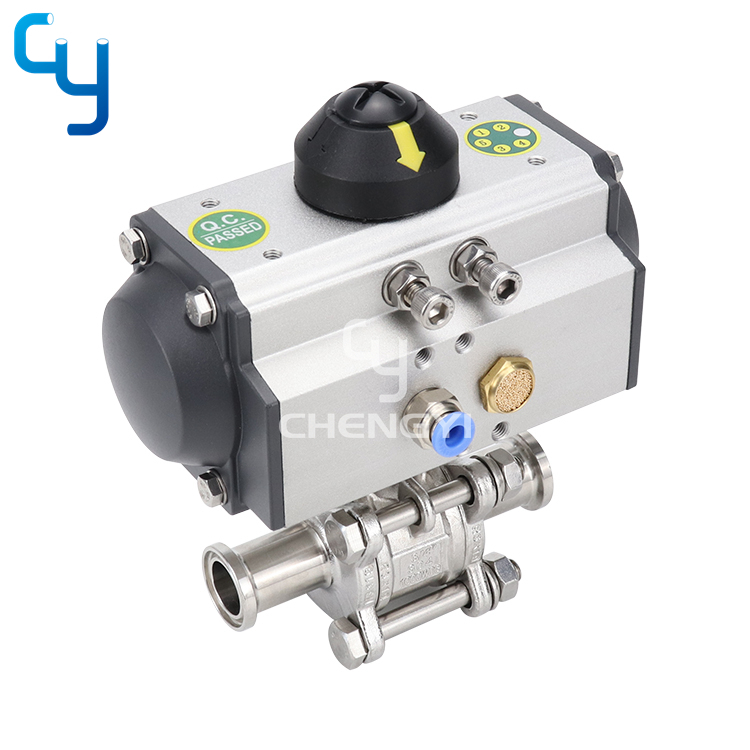

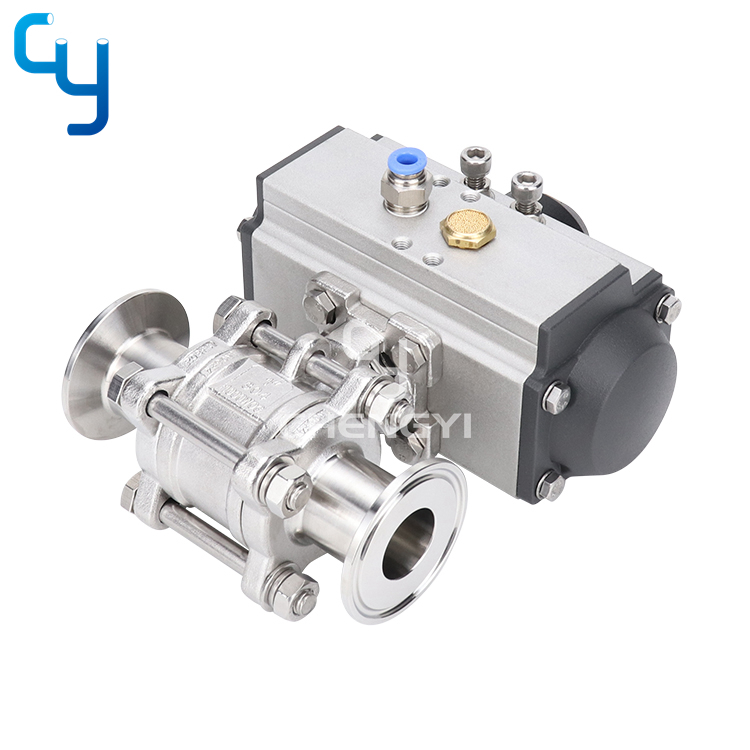

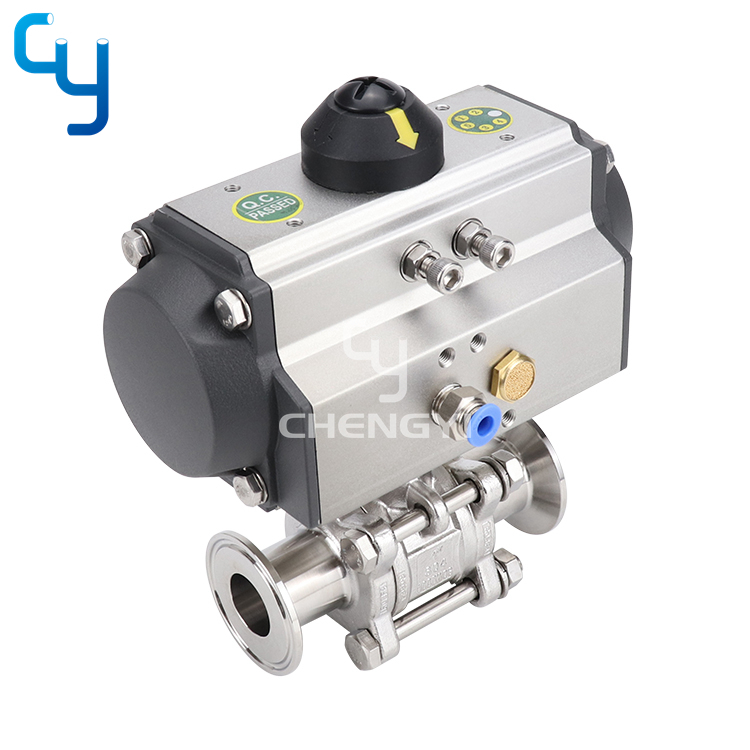

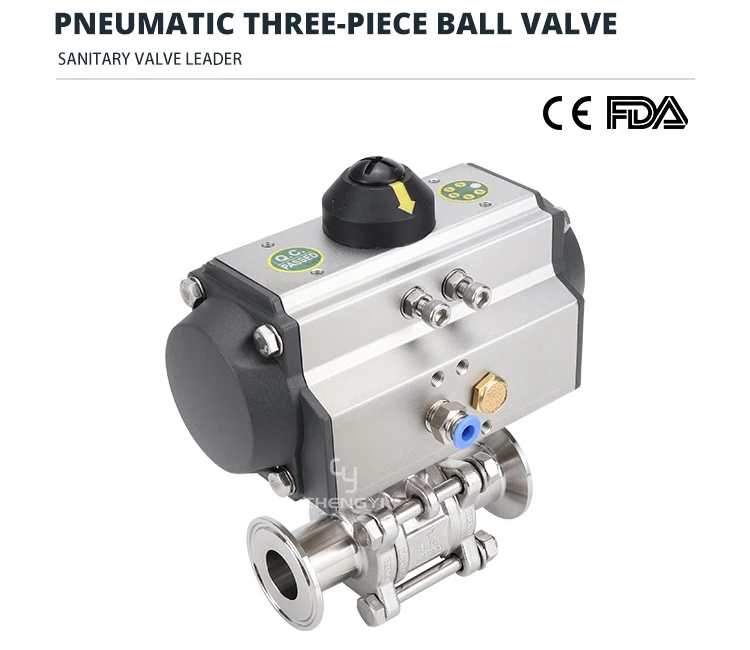

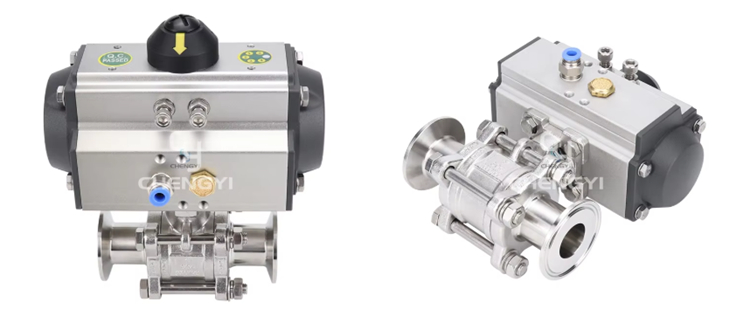

Three-piece pneumatic ball valve
