Application
This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.
Design features
All-inclusive tee design,no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning, and heat resistance of 180℃, the highest pressure 10 bar.
Valve body can be replaced in any connections,and the length will not change.

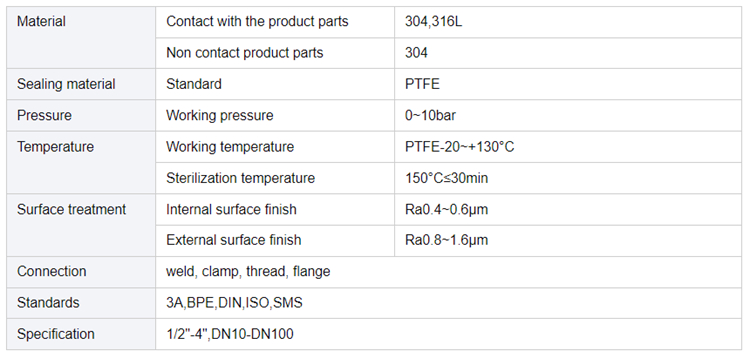

Technical Data
Material | Contact with the product parts | 304/316L(1.4301/1.4404) |
Non contact product parts | 304(1.4301) | |
Sealing material | Standard | PTFE |
Pressure | Working pressure | 0～10bar |
Temperature | Working temperature | PTFE(-20～+130℃) |
Sterilization temperature | 150℃≤30min | |
Surface treatment | Internal surface finish | Ra0.4～0.8μm |
External surface finish | Ra0.8～1.6μm | |
Connection | Connection:clamp, weld, thread, flange, etc | |
Standards | 3A, DIN, SMS, IDF, RJT, ISO | |

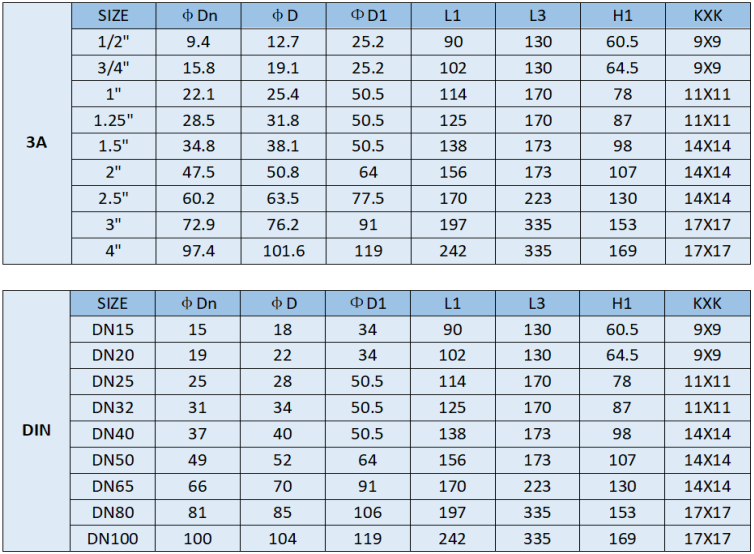

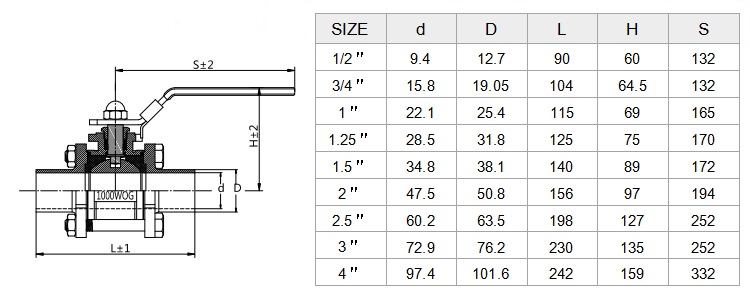

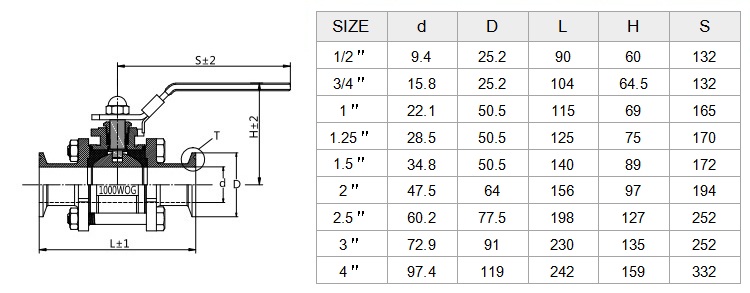

Specification | 1/2"-4", DN15-DN100 | |

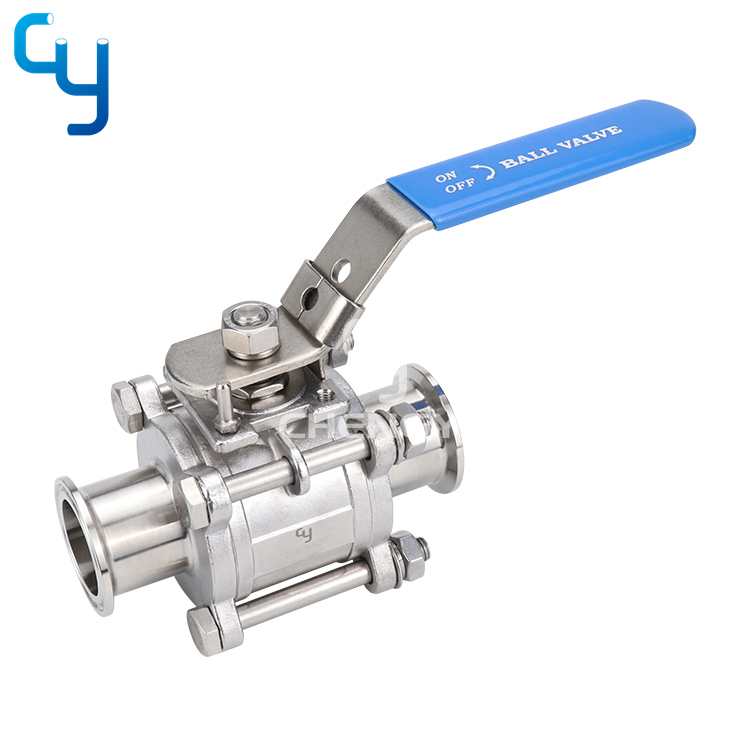

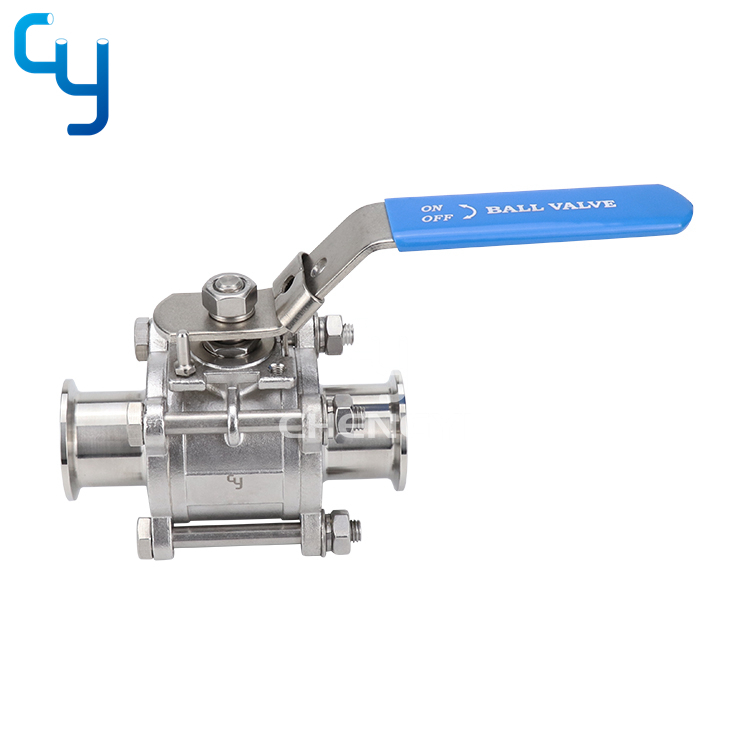

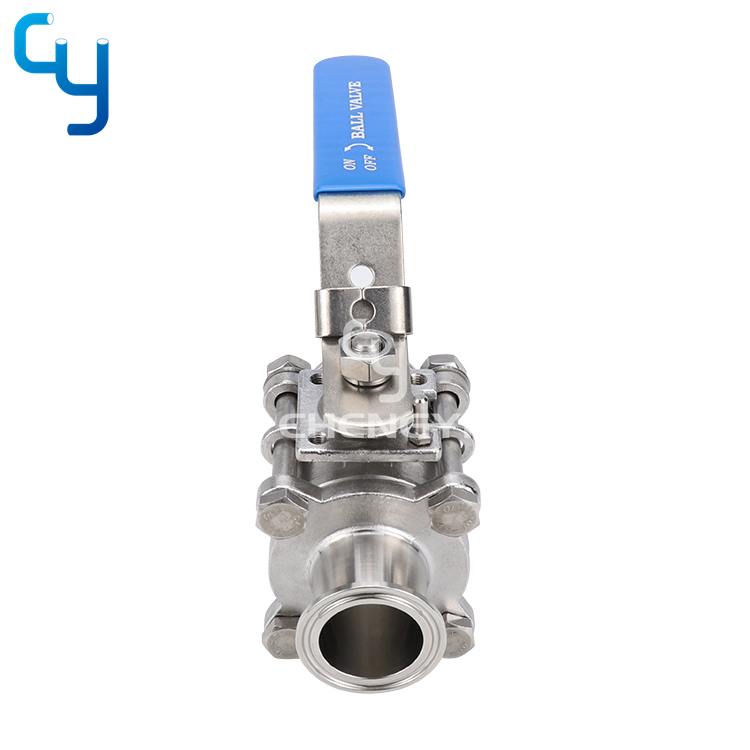

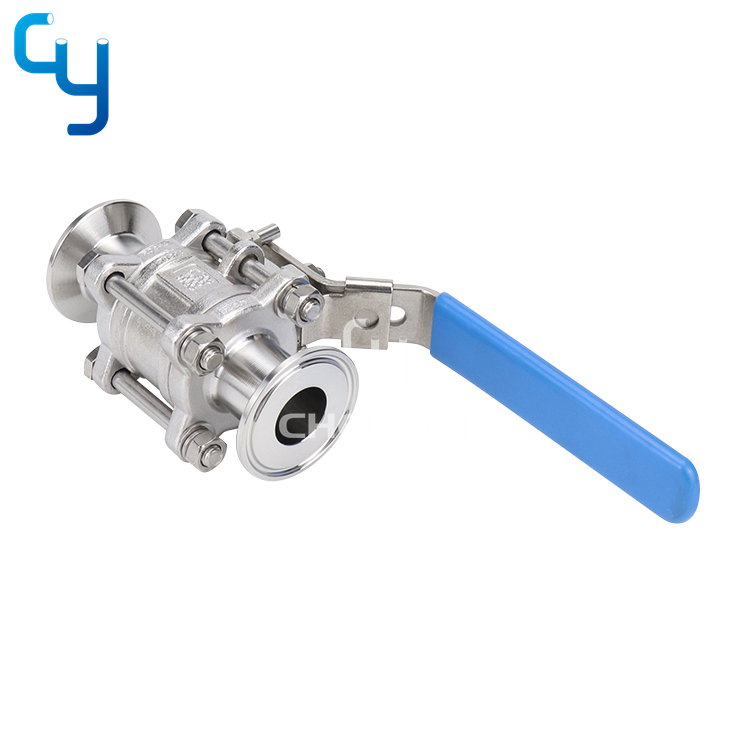

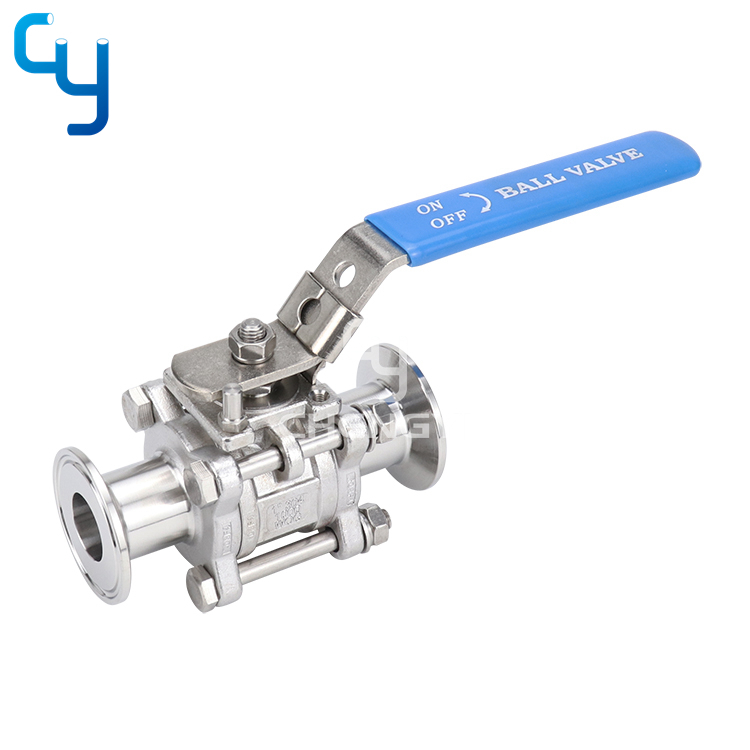

Manual three-way ball valve
