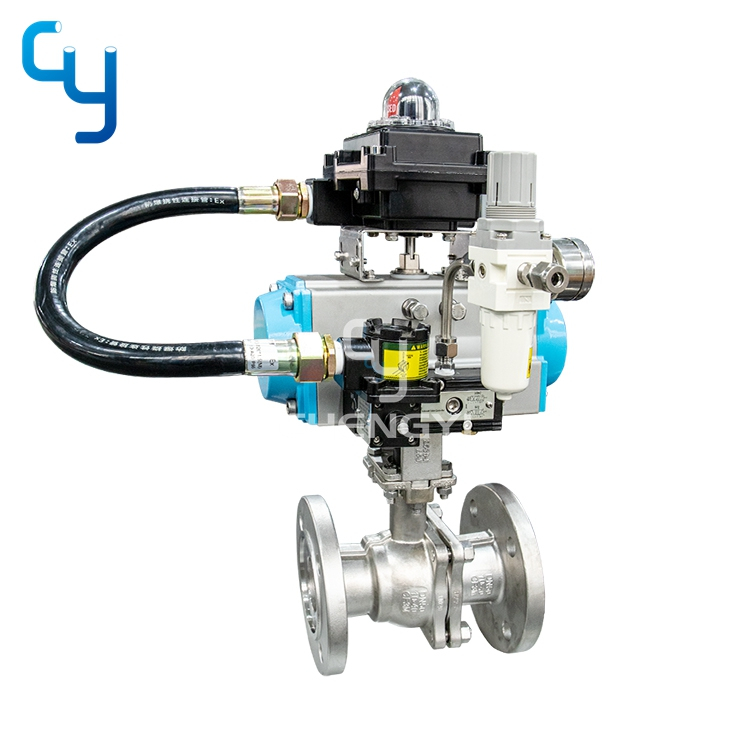

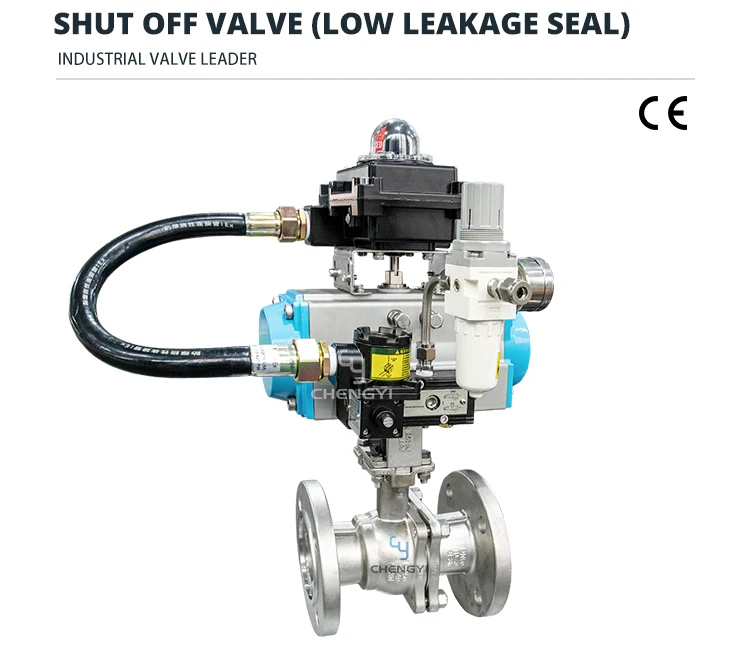

Production introduction
It is a kind of efficient, reliable and simple structure control valve. The opening and closing of the valve are controlled by
rotating the ball Angle. Its sealing material is usually fluoroplastics. According to different working conditions, temperature
and pressure, appropriate valve seat is selected and the sealing is zero leakage.
rotating the ball Angle. Its sealing material is usually fluoroplastics. According to different working conditions, temperature
and pressure, appropriate valve seat is selected and the sealing is zero leakage.
Product characteristic

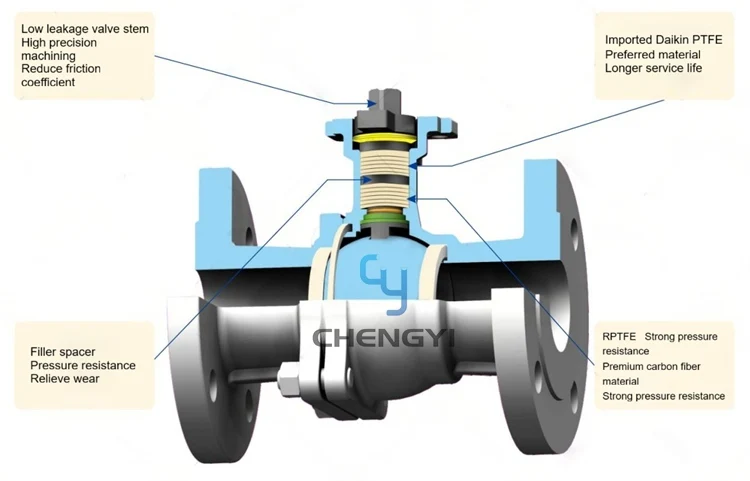

Low leakage valve stem: the outer circle of the valve stem is rolled and polished to make its surface roughness less than Ra0.4 micron, reducing the friction between the valve stem and the packing.
Double-layer packing seal: Composed of two different sealing materials. The lower layer typically uses harder materials like reinforced PTFE to ensure sealing integrity and compressive strength. The upper layer can employ softer materials such as Daikin PTFE, which enhances sealing performance while reducing operational effort.
The packing sleeve is usually made of metal: it can withstand high working pressure, protect the upper packing to a certain extent and relieve the wear of the packing on the pressure and prolong the service life
Advantages

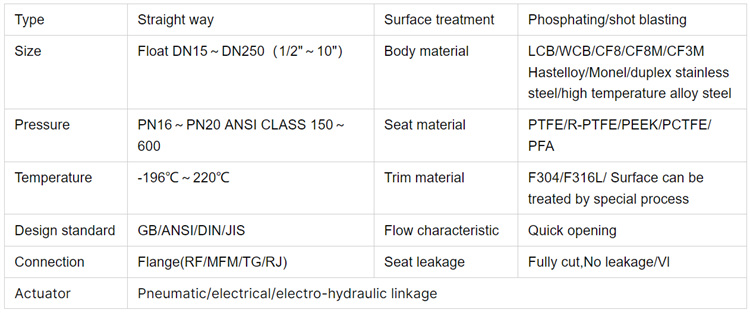

1/2"-10",DN15-DN250
