High Efficient Sanitary Centrifugal Pump-CKS
High Efficient Sanitary Centrifugal Pump-CKS
Product description



Application

The CKS Series centrifugal pump is your solution to a lower cost of ownship while providing the the flexibility your operations need. Its stainless steel construction provides the durability, intergrity and absolute quality required for your sanitary fluid transfer operations.

Standard design

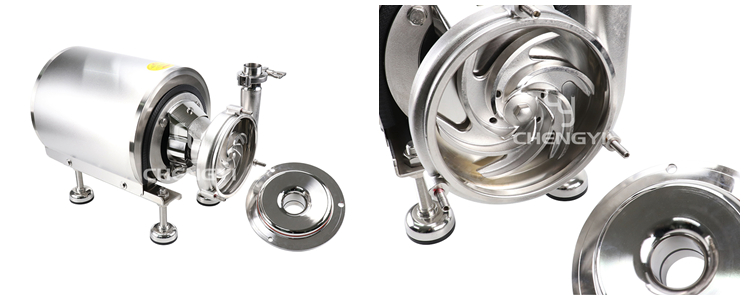

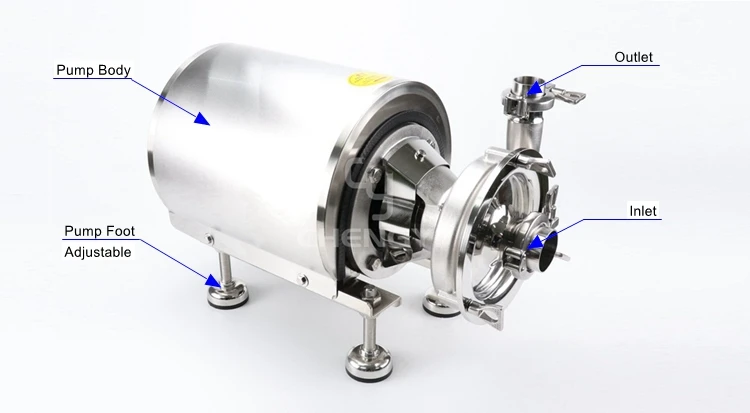

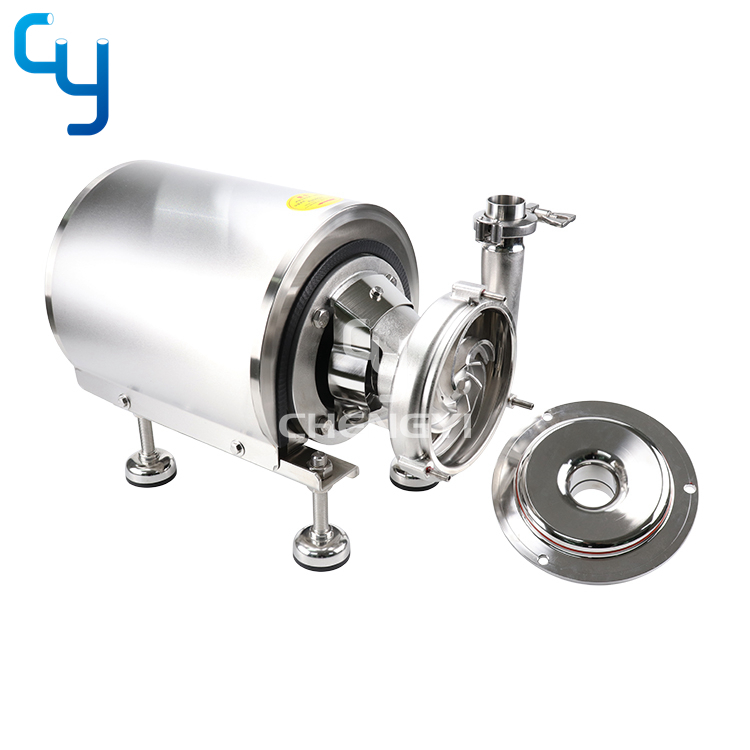

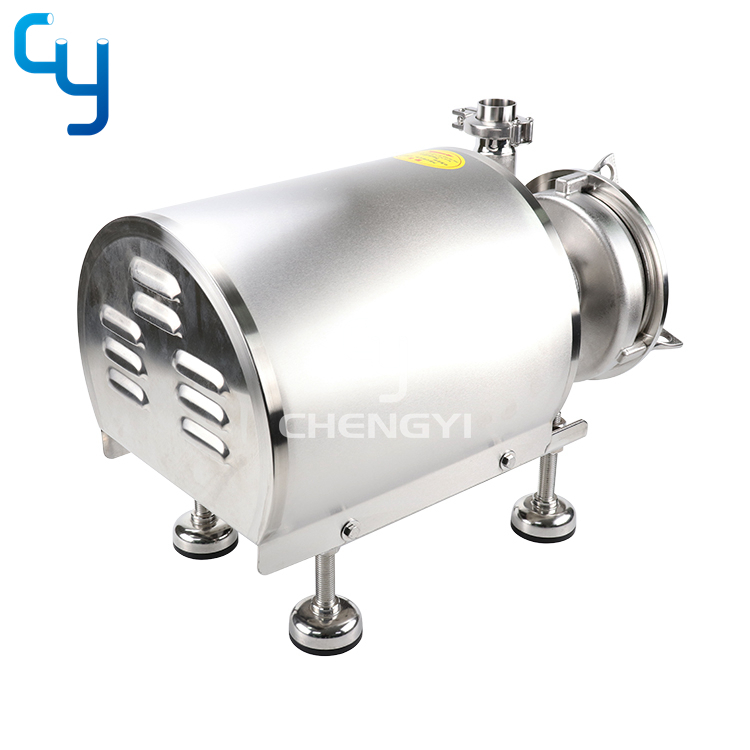

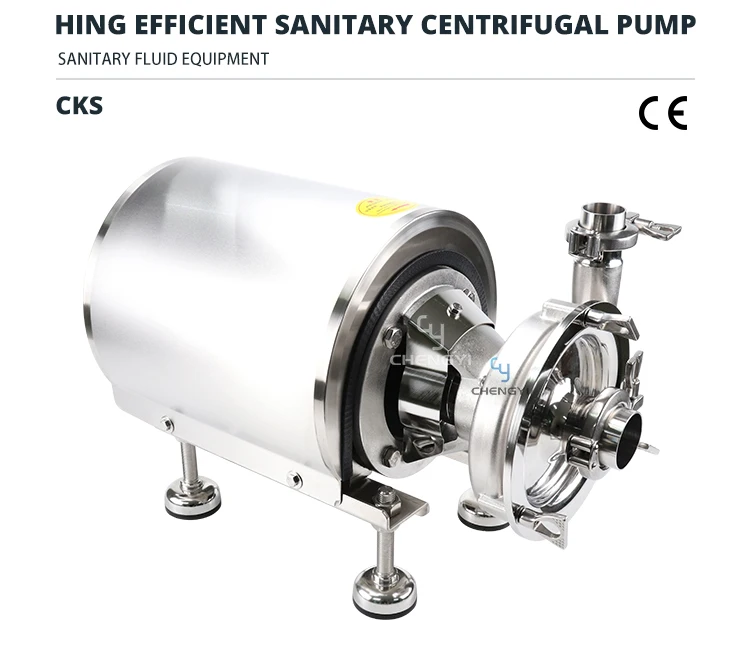

The CKS sanitary centrifugal pump is composed of motor, pump shaft, mechanical clamping jacket, sanitary mechancial seal, connection support, rear plate cover, impeller, pump shell, etc.  It has large internal round chamfer and cleaning type seal. It specially designed for CIP. It has the stainless steel protection cover used for protecting the motor.

Shaft seal

This pump is provided with a set of externally mounted single mechanical seal or water injection mechanical seal (double mechanical seal). The static ring of the mechanical seal is made of stainless steel seal, silicone carbide or tungsten alloy. The dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. The seal ring of the water injection type seal (double mechanical seal is durable lip seal. The series of pump products can also be equipped with the double end mechanical seal.

Motor

1. usually standard is domestic brand motor. International is optional. when you order, please contact with us for it.
2. Excellent electric performance, low noise, low vibration, protection grade of high permance IP54, IP55. special IP56 can
optional, please contact with us.
3. Standard power is 380V/50HZ/3phase, we can make speical power and special power, please contact with us when ordering.
4. If you need explosion proof pump, please also contact with us.




High Efficient Sanitary Centrifugal Pump


Installation instructions


Installation Method and Place:
It is very necessary to check the following before installation:
The drive is in good condition.
Whether the on-site power supply is the same as the rated power on the motor nameplate.
Whether it meets the environmental conditions (avoid flammable and explosive environment or acid corrosion environment).

Installation Location:
The installation foundation of the pump should generally be level and sufficient-strengthened ground. Install it as far as possible on the lowest position of the equipment, that is, at the position with the maximum head height.

Piping Installation:
The diameter of pump, pipe and the inlet and outlet of the pump should be the same, and the diameter of the inlet pipe should not be too small. When the diameter of the pipe is smaller than the diameter of the pump, adjust it with an eccentric reducer to shorten the diameter of the pipe so as to avoid formation of a gas leak. The outlet pipe diameter must not be too large either. When the outlet pipe diameter is larger than the pump outlet, try to extend it. Distance from the pump outlet to avoid overloading the pump motor.

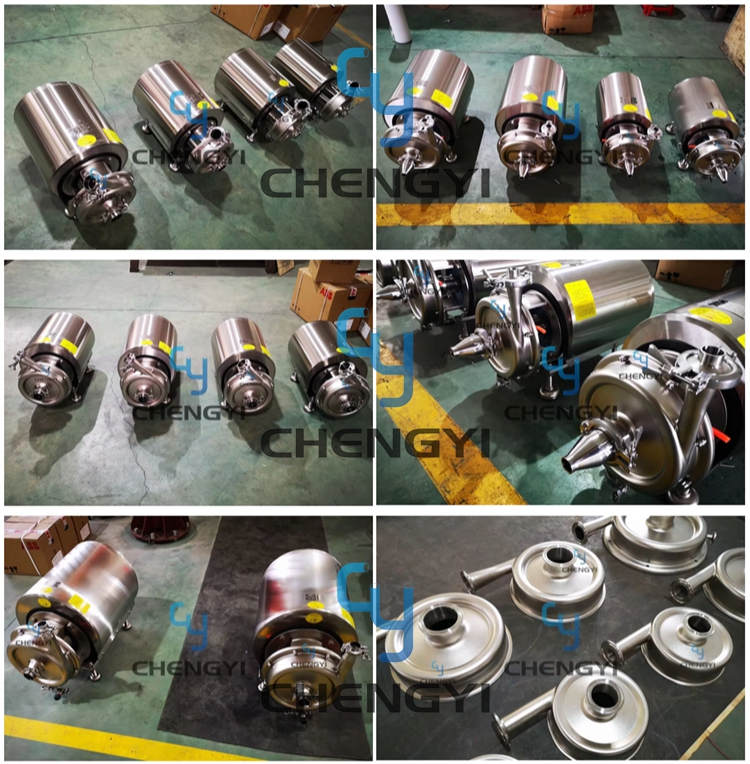

离心泵CKH发货图 - 副本.jpg
