Application:

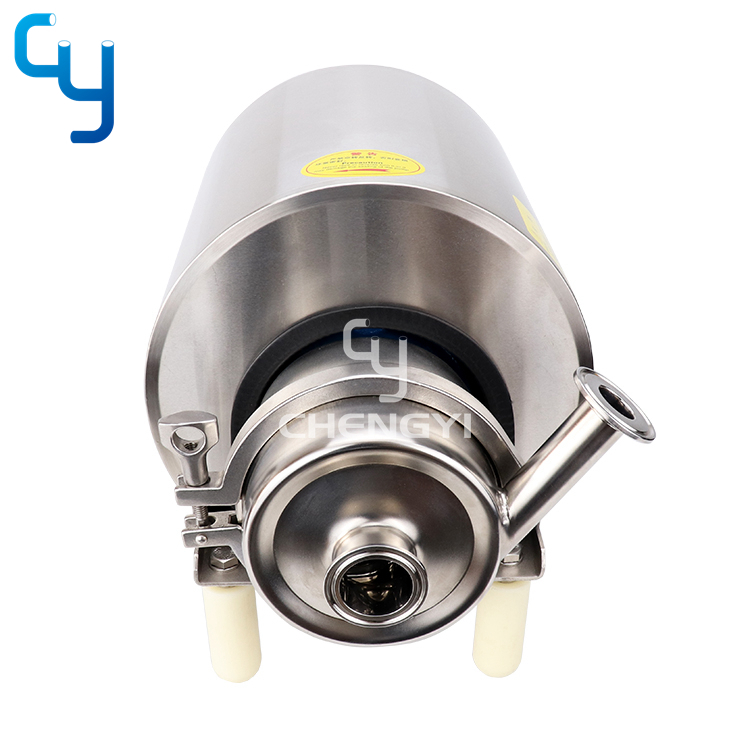

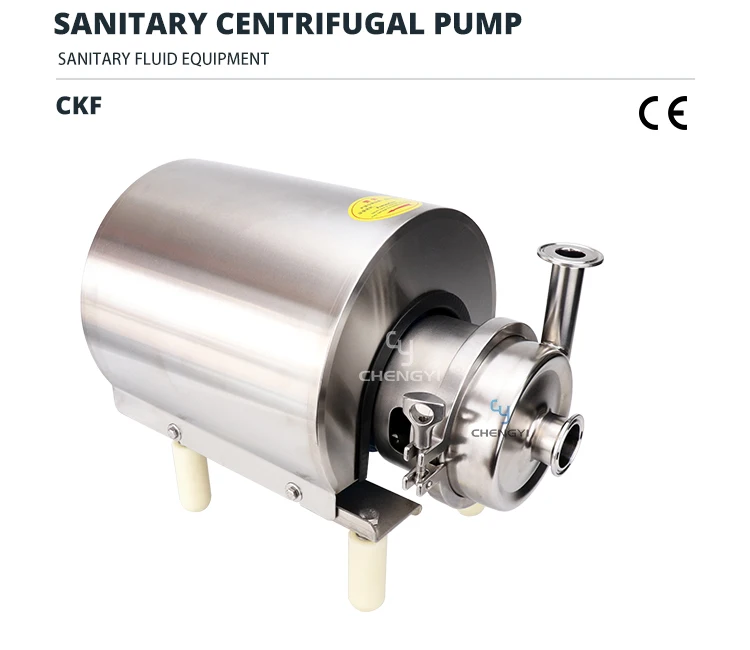

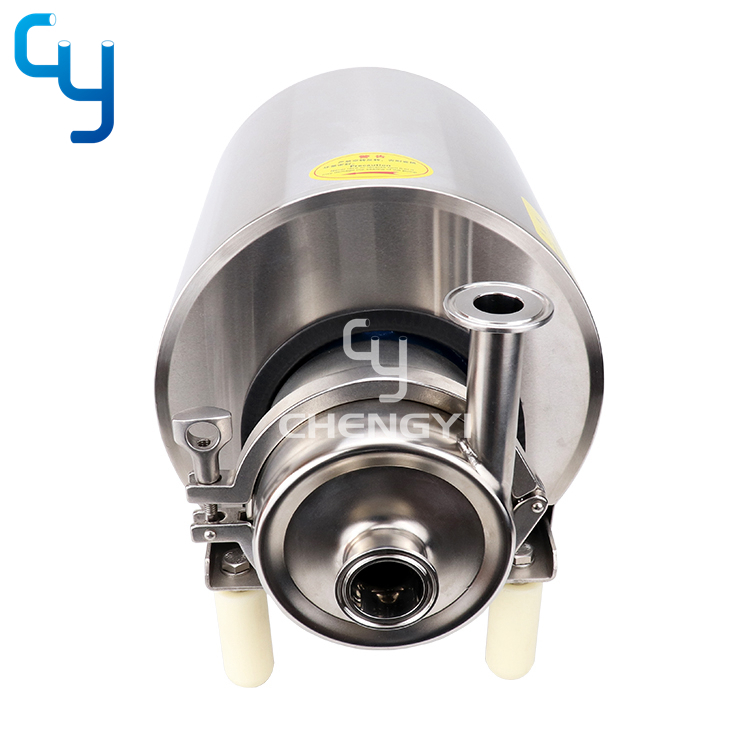

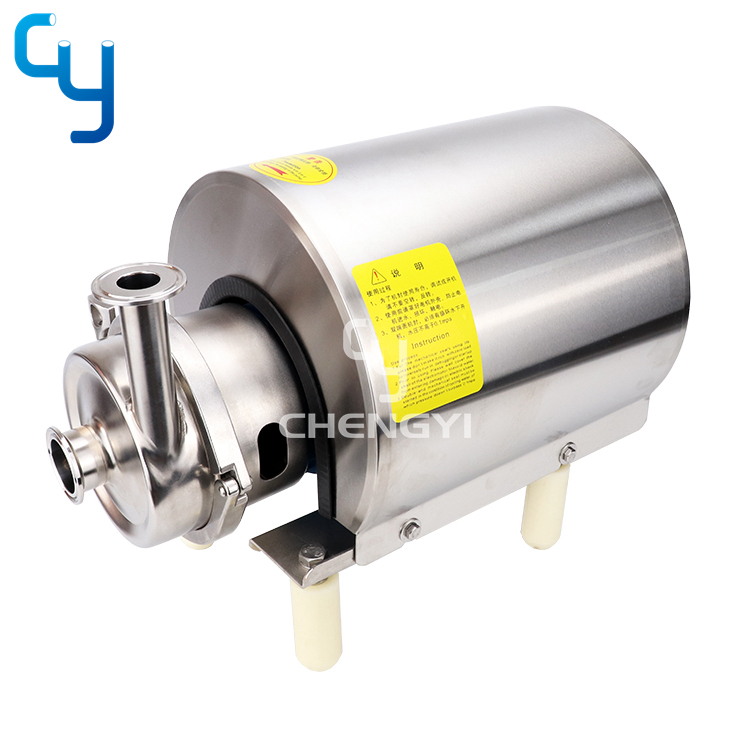

The sanitary centrifugal pump is made of stainless steel motor housing. Hygienic and cost-effective design makes it very suitable for dairy, beverage, food processing, pharmaceutical and fine chemical industries.

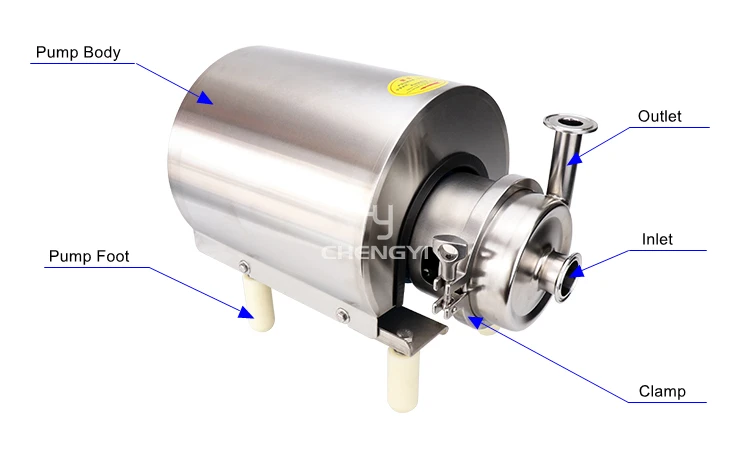

The impeller is arranged in the pump housing, which rotates in conjunction with the pump shaft, and the impeller blade conveys the amount to the fluid in the form of kinetic energy and pressure energy. The pump is not feasible even if it is rotated in reverse through the cylinder. From the motor can see direction of rotation of the pump, the correct direction of rotation is clockwise.

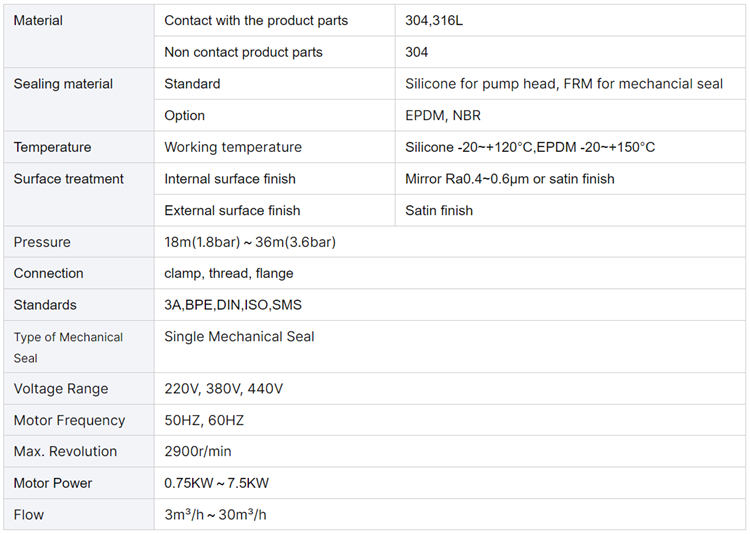

Technical parameters:

Specification：1T～500T

Max inlet pressure：0.5MPa

Temperature range：-10℃~140℃（EPDM）

Connection type：clamp, thread, flange

Connection standard：3A DIN BPE SMS IDF ISO

Material：304, 316L

Surface treatment：Internal surface is Ra≤0.6μm，other parts matte or sandblasting treatment.

Impeller: split Impeller and semi-split impeller

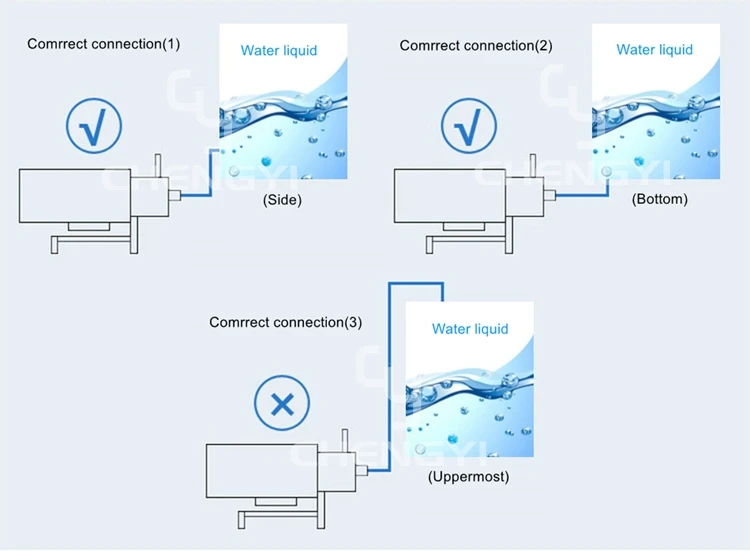

Work Condition:  sanitary negative pressure pump adopts horizontal conveying with high and Iow liquid levels. It has certain suction

Washable mechanical seal：water pressure: Max. 0.1MPa， water volume: 0.25-0.5L/min

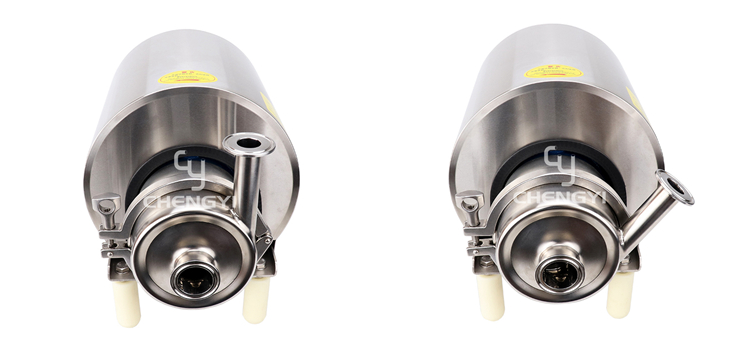

Selection : 45 ° outlet with vent , 90 ° outlet with drain , 45 ° outlet with drain valve , 90 ° outlet with drain valve .

Motor

1、Depending on the configuration, the pump mainly adopts “ABB” brand high-efficiency M2BAX three-phase AC motor. The pump is designed and manufactured according to IEC60034.IE60072, conforming to CE marking requirements.
2、The explosion-proof motor is available to meet the needs in different applications.
3、With excellent electric performance, low noise and low vibration, the motor is designed to have standard protection grade of IP55 and insulation grade of grade F.
4、Frequency: 50Hz/60Hz
5、Working made: continuous （SI）
6、Rotation speed: the standard rotation speed of the pump is 2900r/min.

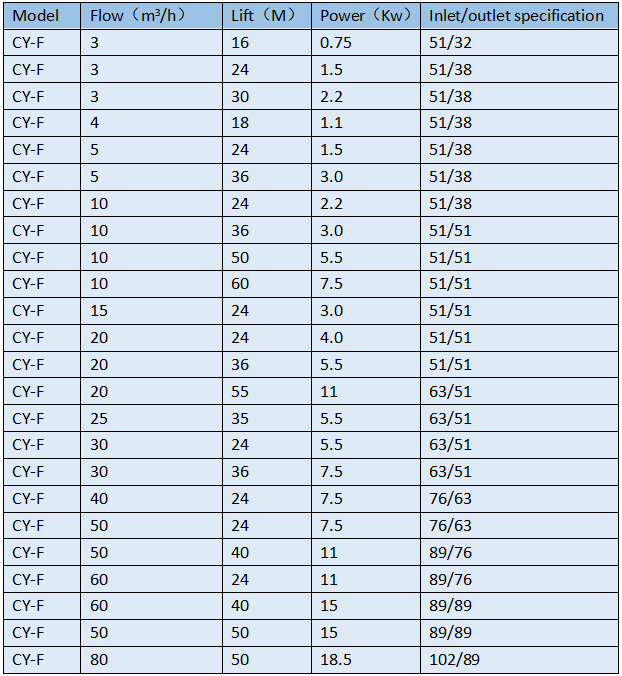

CY-F series performance and model selection table
