Application

This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage, pharmaceutical and chemical industry area.

Design features

Full wrapped valve seat design, high clean without retention, meet the requirement of CIP and SIP.

Valve can be replaced in any connections, and the length will not change.

L port or T port can be interchangeable on site, inlet and outlet can be any combination of chages, and can guarantee no dead leg and no retention.

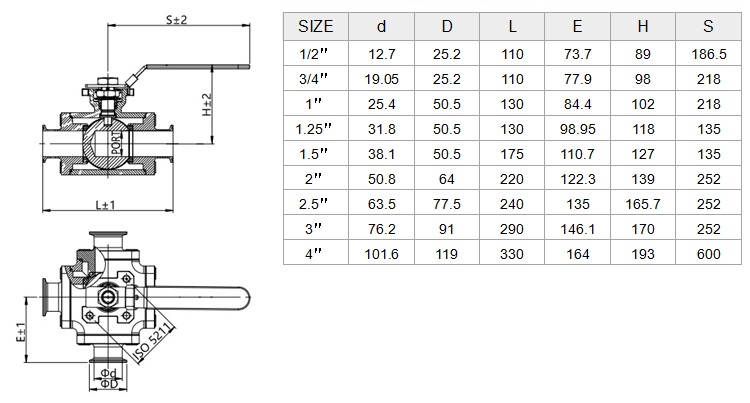

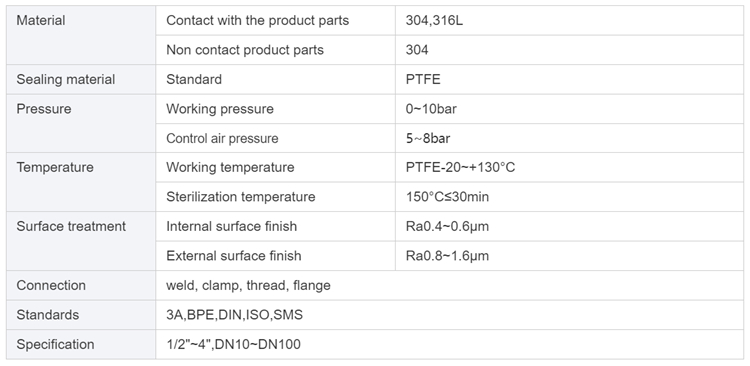

Specification

Specification：1"-4", DN25-DN100

Working pressure：10bar

Working temperature：-10℃～+110℃

Connection：clamp, weld, thread, flange

Connection standard: ISO, DIN, IDF, SMS, 3A, etc

Material：304，316L

Operation mode：Manual, pneumatic, electric

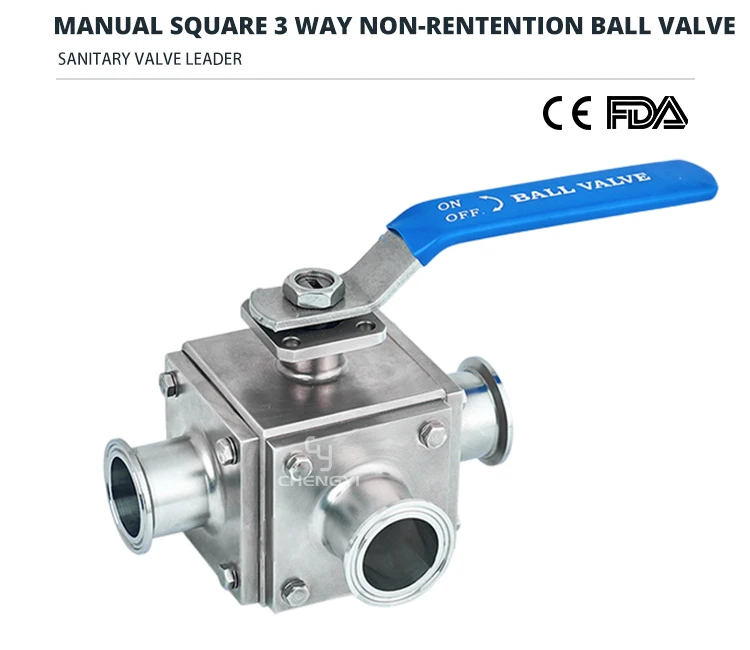

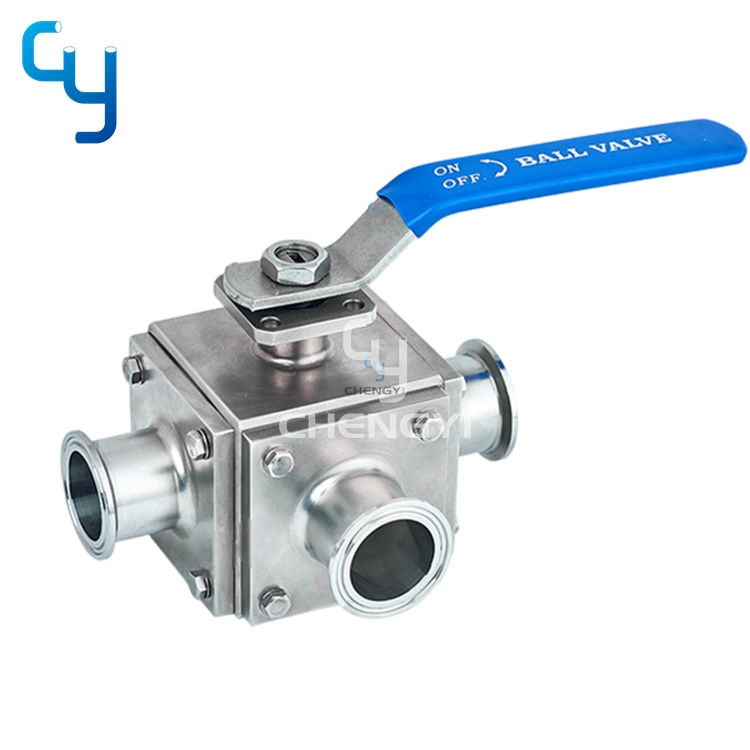

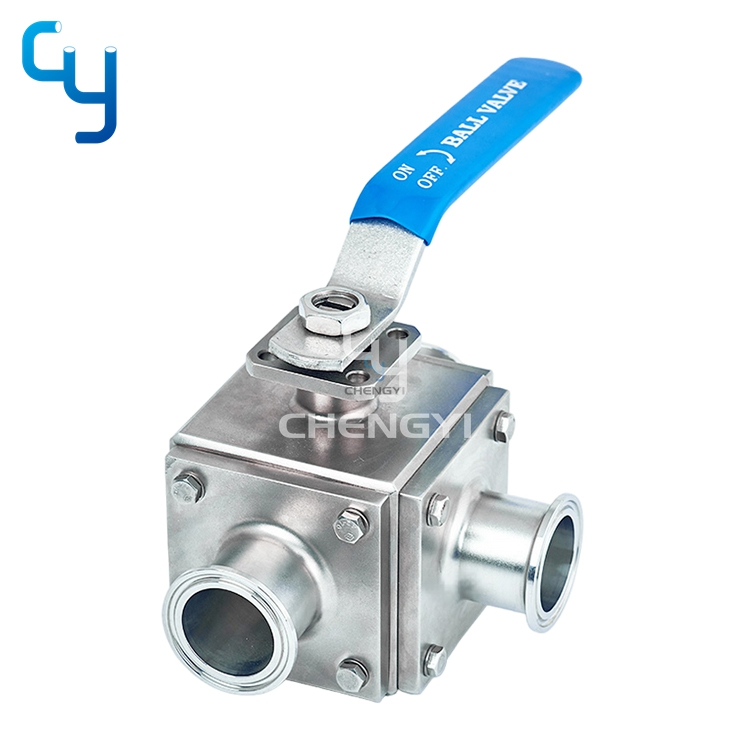

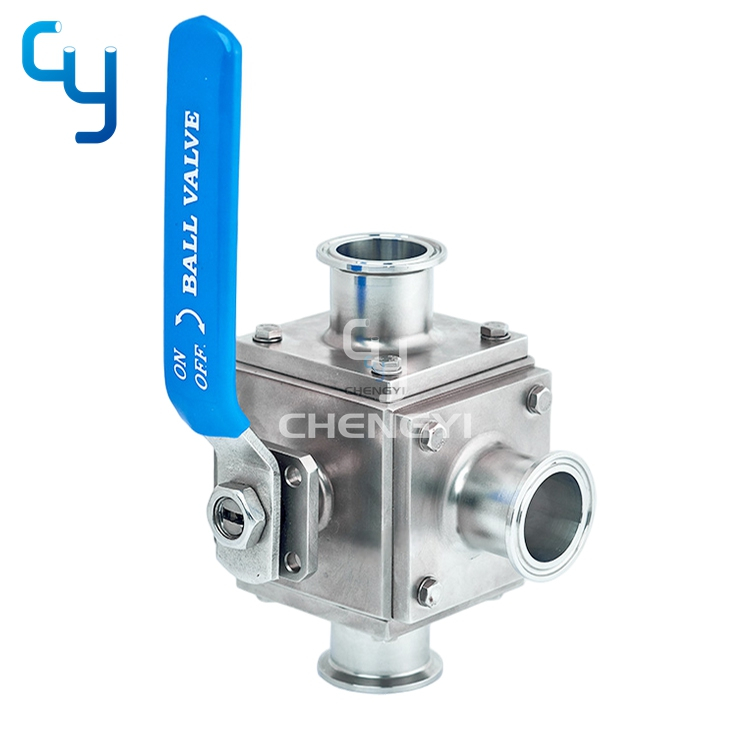

  Three-way squre ball valve
