Application

This type of valve series can be automatically or manually, because of it can be very good deal with viscous or medium with particulate, which is widely used in food, beverage, pharmaceutical and chemical industries.

Design features

Free maintenance

Portable and compact

Small torque

Handle can be installed on the side of the valve body, no matter of the flow direction.

Valve can be replaced in any connections, and the length will not change.

It can match with pneumatic and electric actuators

It can match with CIP wash port

Specification

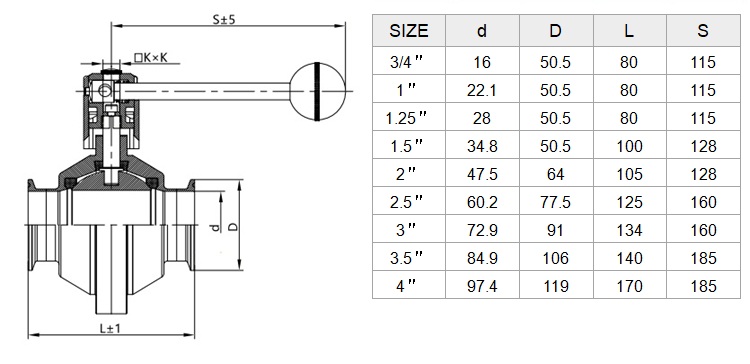

Specification：1/2"-4", DN15-DN100

Working pressure：0～10bar

Working temperature：EPDM(-40℃～+120℃ ), PTFE (-40℃～+130℃ ), FPM (-40℃～+180℃ )
Connection：clamp, weld, thread, flange

Connection standard: ISO, DIN, IDF, SMS, 3A, etc

Diaphragm material:EPDM, PTFE, FPM

Material：304，316L

Operation mode：Manual, pneumatic, electric

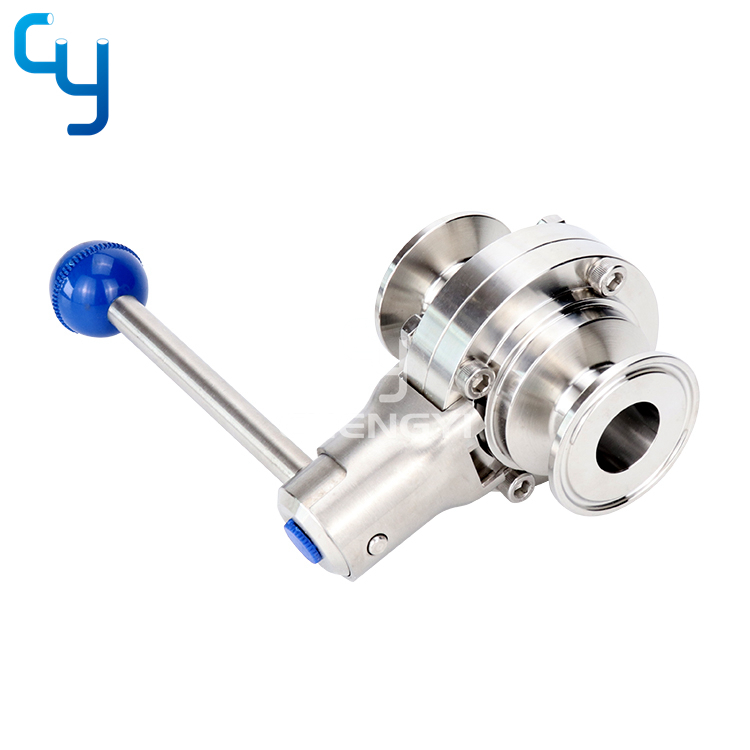

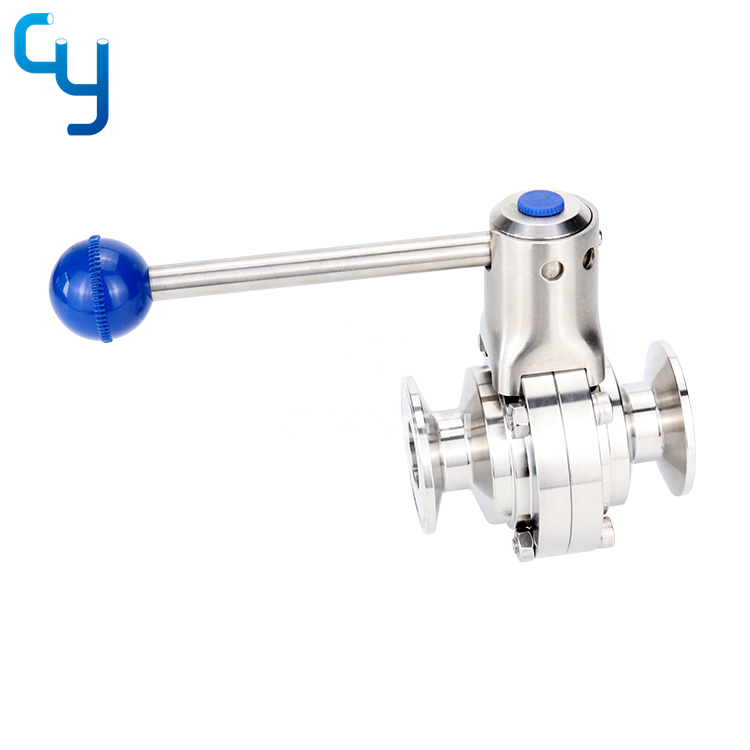

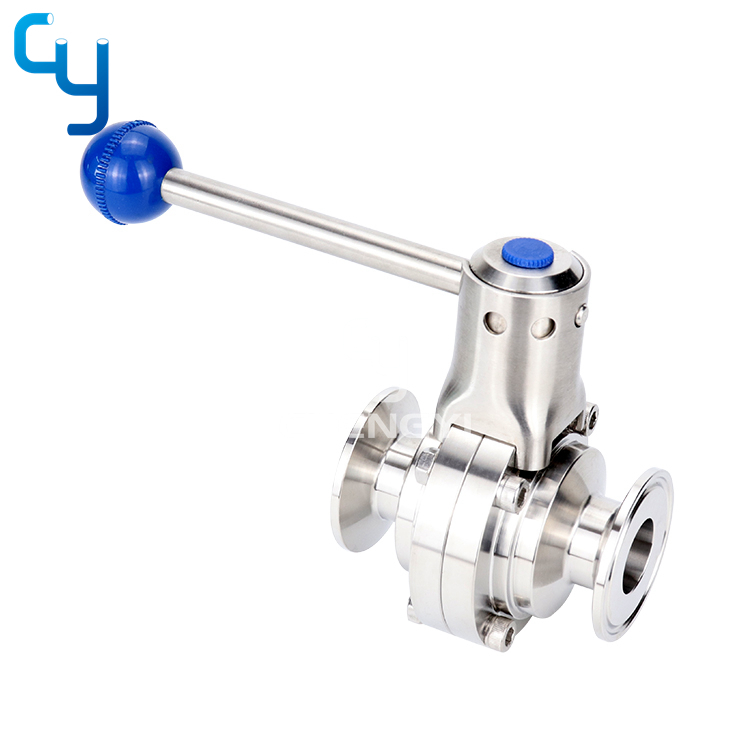

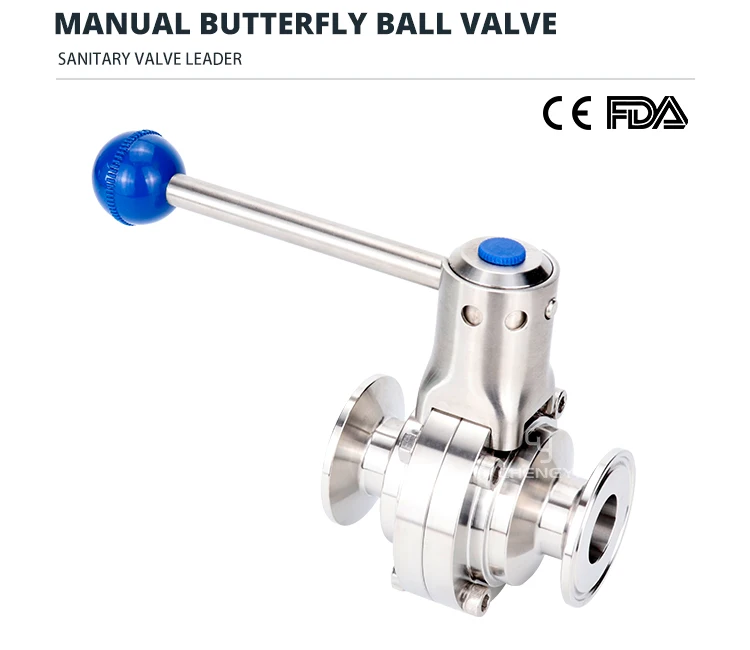

 Manual quick-install/welded butterfly ball valve

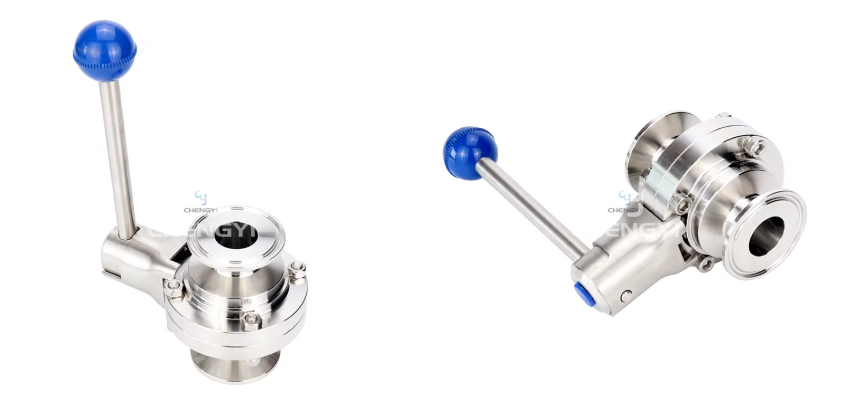

 Manual threaded butterfly ball valve

 Manual threaded butterfly ball valve
