Application
This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.
Work principle
With the 90°rotary handle, drive the precise manufacturing ball body which with through cavity, turn on or off, so that can control the medium flow.
Design features
Easily disassemble without special tools
Small operating torque
Valve can be replaced in any connections, and the length will not change.

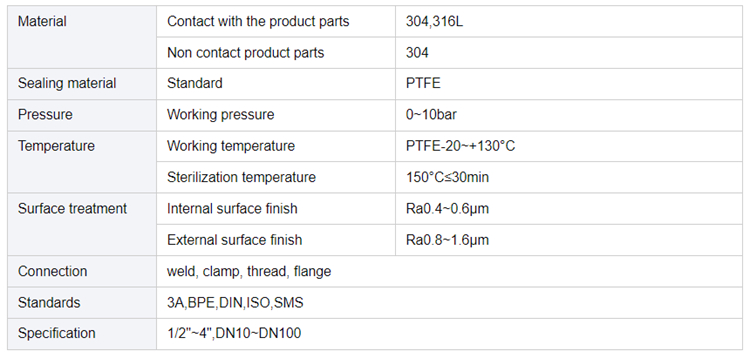

Specification

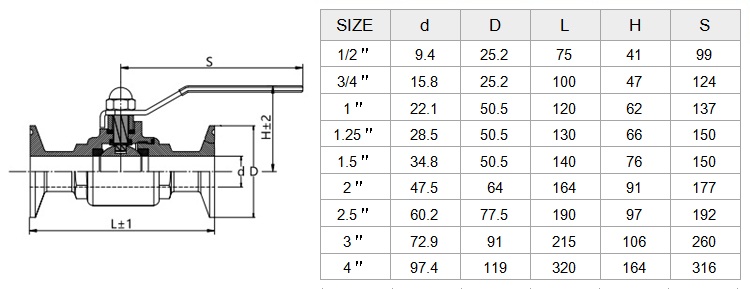

Specification:1/2"-4", DN15-DN100
Working pressure:10bar
Working temperature:-10℃~+150℃
Connection:clamp, weld, thread
Connection standard: ISO, DIN, IDF, SMS, 3A, etc
Diaphragm material: PTFE
Material:304,316L
Operation mode:Manual

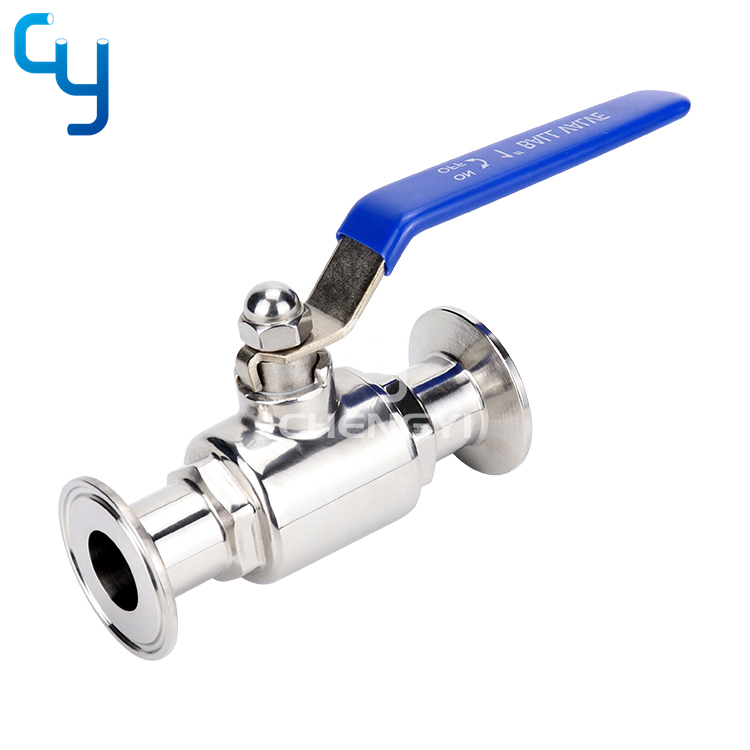

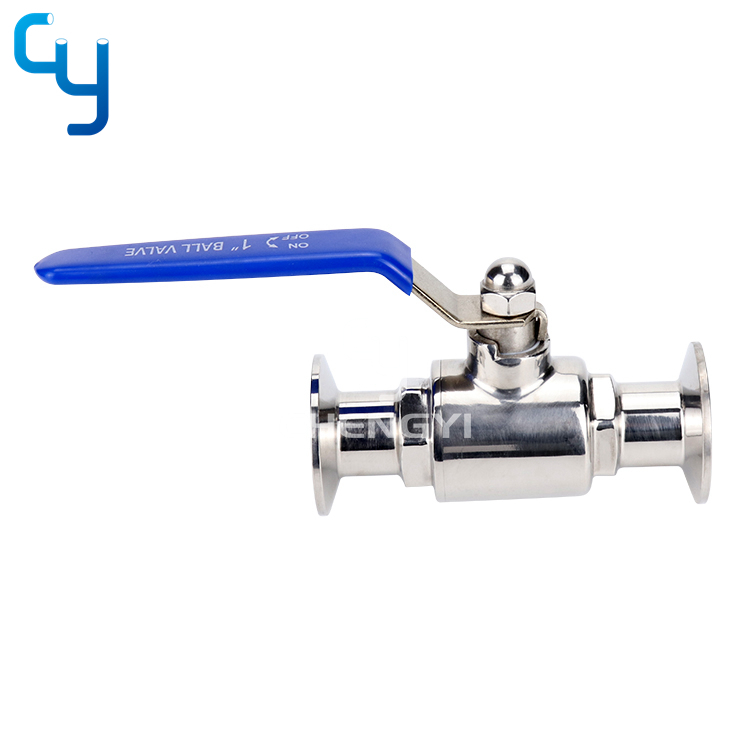

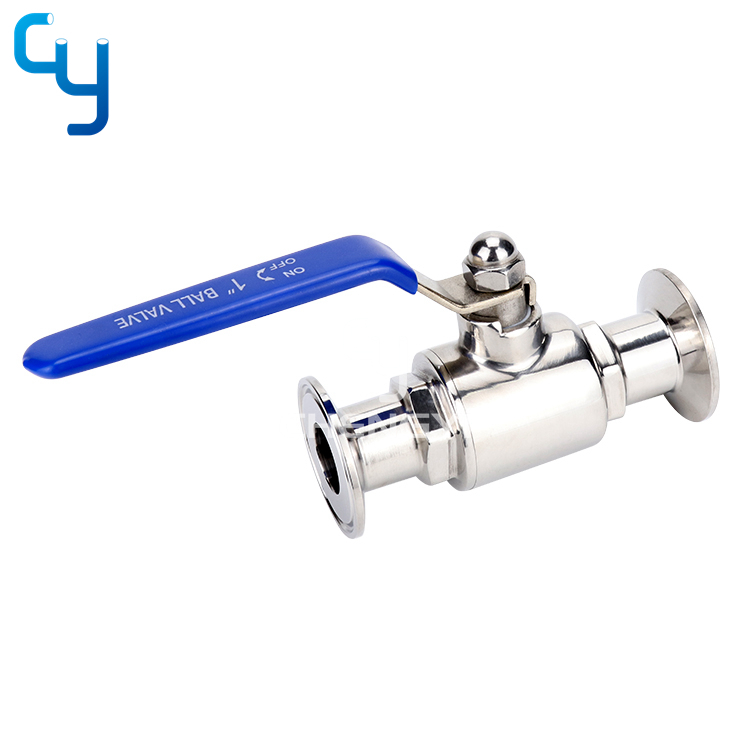

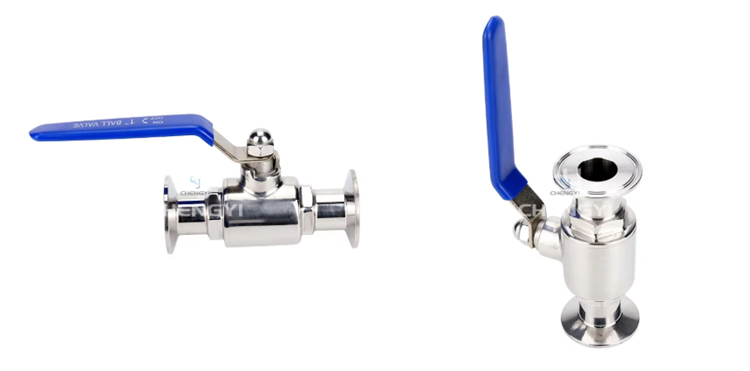

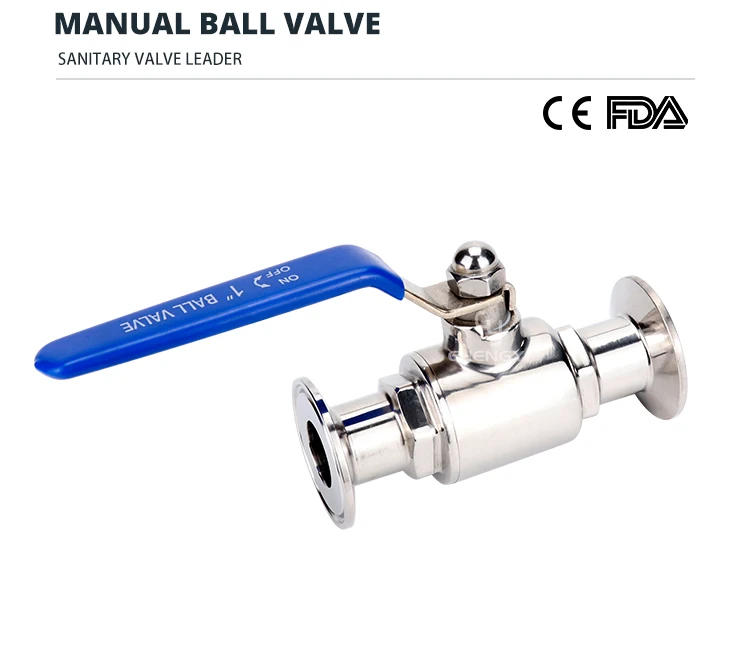

Manual clamped direct way ball valve
Manual threaded direct way ball valve
