Application

This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.

Work principle

With the 90°rotary handle, drive the precise manufacturing ball body which with through cavity, turn on or off, so that can control the medium flow.

Design features

Valve body combined with clamp connection

Easily disassemble without special tools

Small operating torque

With drainage port

Gasket complies with FDA177.2600

Valve can be replaced in any connections, and the length will not change.

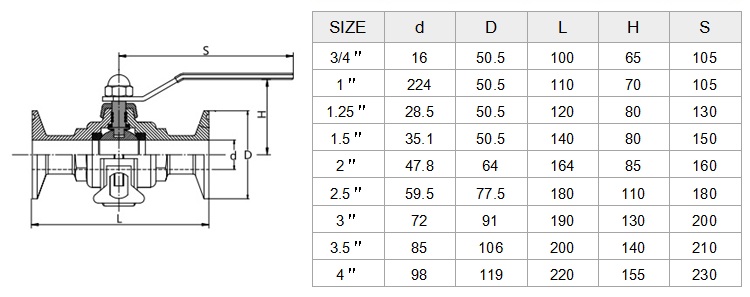

Specification

Specification：1/2"-4", DN15-DN100

Working pressure：10bar
Working temperature：-10℃～+150℃
Connection：clamp, weld, thread

Connection standard: ISO, DIN, IDF, SMS, 3A, etc

Diaphragm material: PTFE

Material：304, 316L

Operation mode：manual

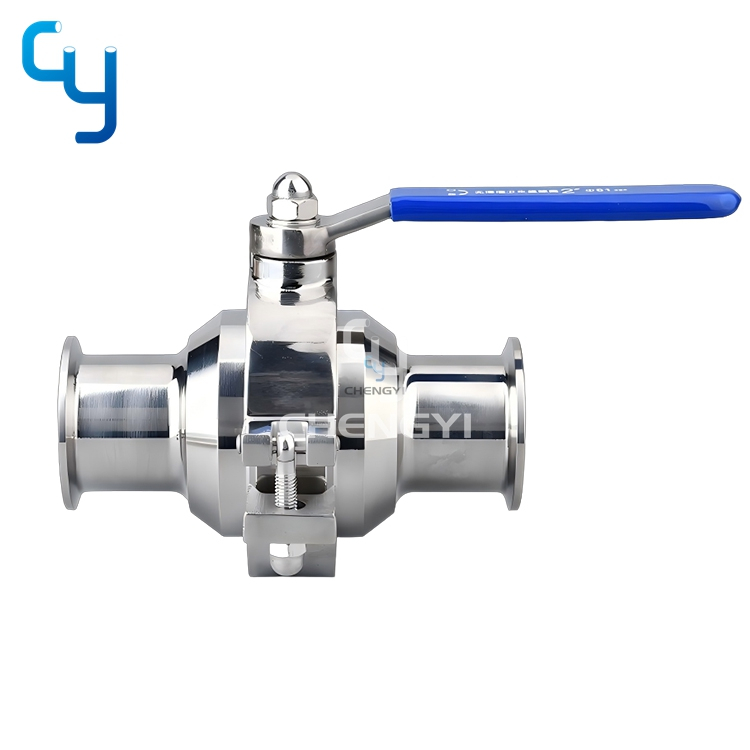

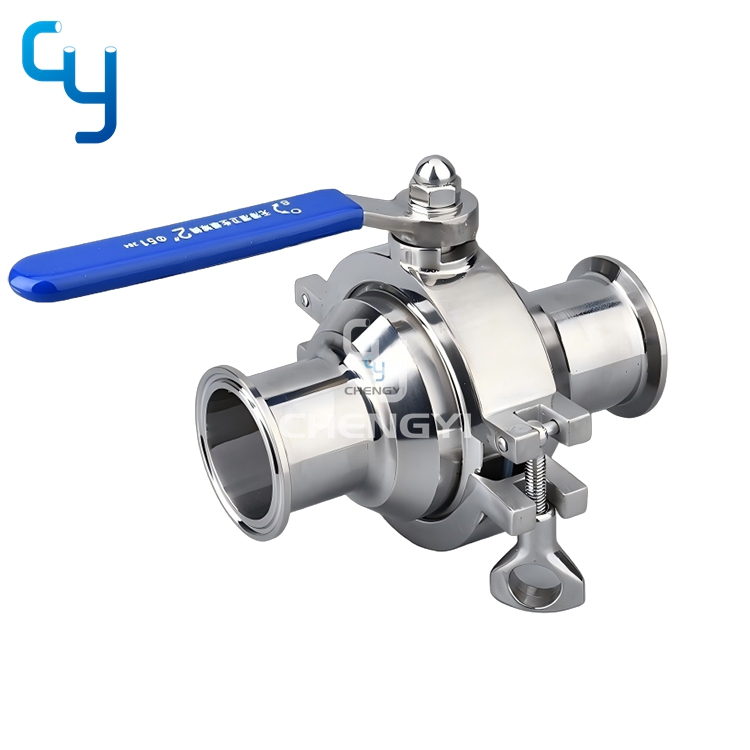

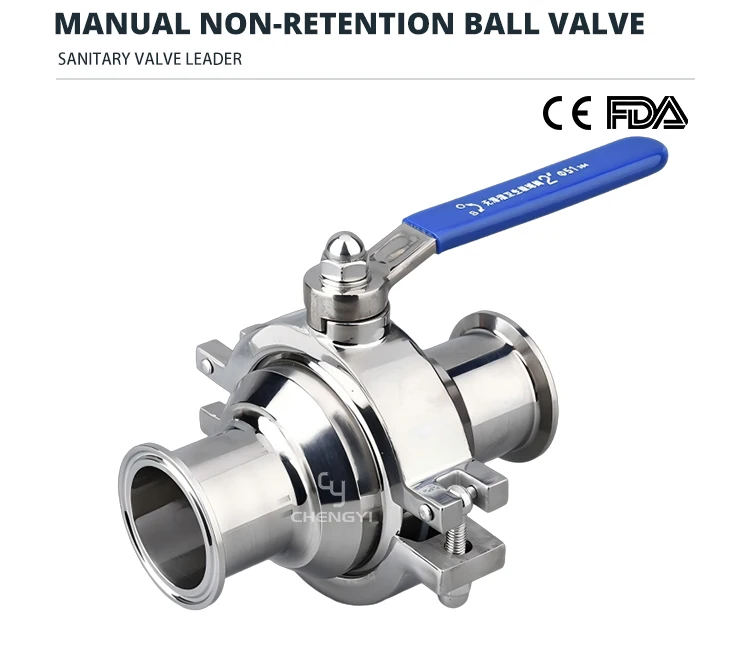

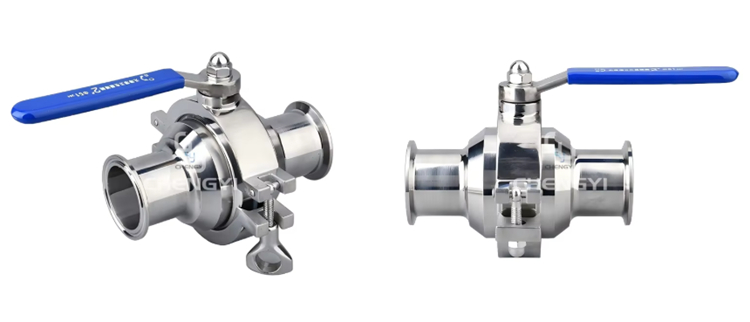

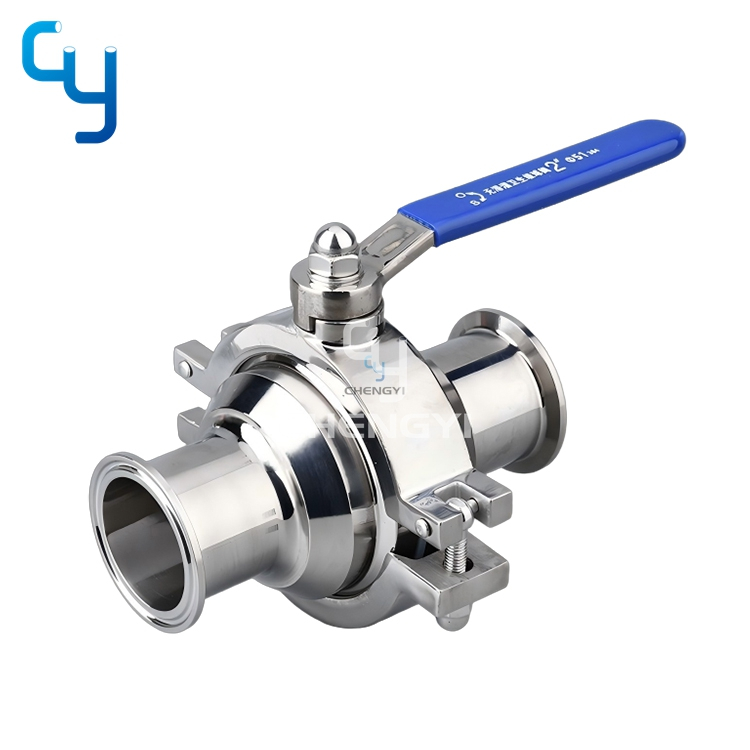

 Non-retention ball valve
