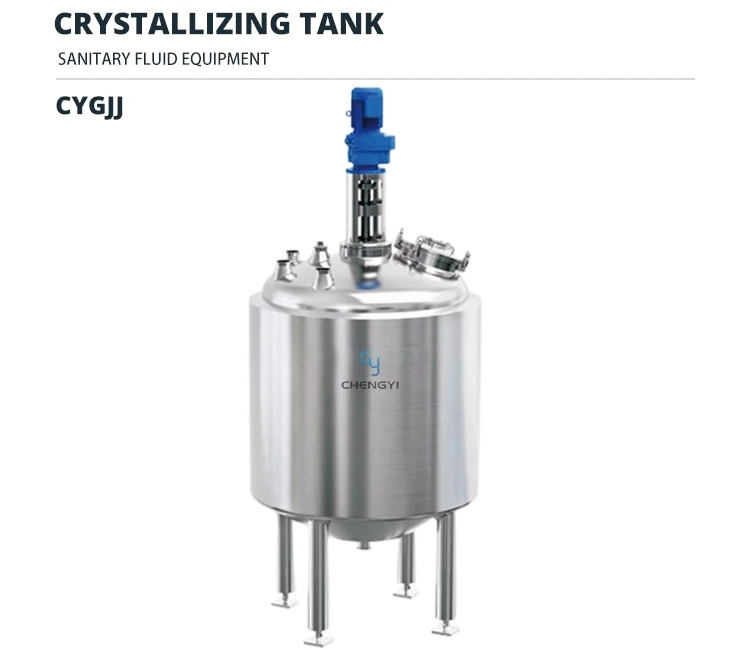

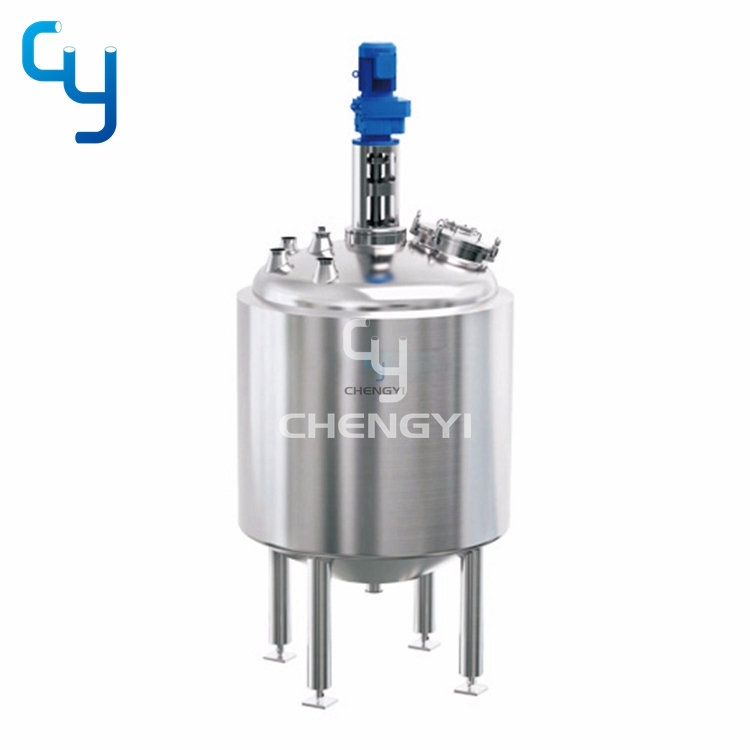

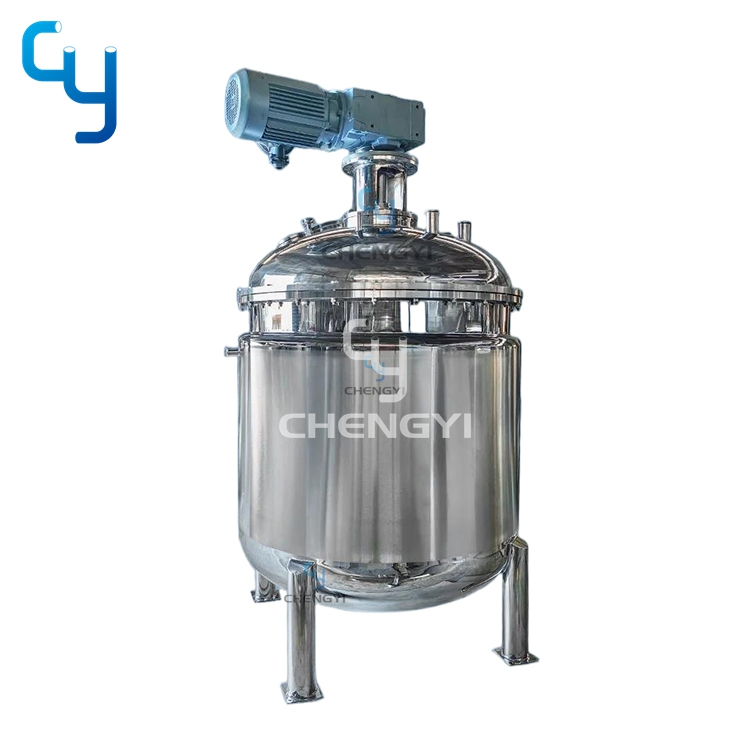

Crystallizing tank, which meets to GMP certificate requirements, is designed, manufactured and inspected in accordance with the pressure vessel standard (GB150-2011).
The crystallizing tank is a crystallizing device in which the chilled water cools sharply in the jacket. The key are the size of the jacket, the structure of agitator and the form of outlet. High prevision polishing and no dead leg meet the technical requirement.
According to different usage, the tank can be designed with jacket, coil, insulation (which can heating, cooling and insulation); Stainless steel is made of 304 or 316L, inner surface is electropolish or mechanical polish. The outer wall adopts 304 insulation structure, outer surface is mirror polish or satin finish; fully sealed design assure that the materials are always operated under unpolluted condition.
Feature
Crystallizing tank can choosed curved blade paddle, which can increase heat exchange area, and increase in thermal efficiency, enhance the crystallization capacity. The material discharging is convenient.
The steam and cold media can be inputted into crystallizing tank jacket to make the material under optimum temperature, with high efficiency and convenient operation.
The seal is special sanitary mechanical seal to assure the material is unpolluted.
The speed of crystallizing tank is adjusted by frequency converter, the speed range is big, mix and materials and crystals well.
Volume range is 500L～20000L, and we can make other specification according to customer’s actual requirements.
Application
It applied to pharmaceutical, diary, food, fine chemical and beverage industries for materials mixing. It functions as cooling and freezing, products crystallizing and so on.
Tank optional configuration
Reactor can be optionally configured with sight glass with lamp, manhole, cleaning ball, vent filter, pressure gauge, sampling valve , bottom valve, thermometer (digital display or Dial type), PH probe, level gauge and level control system (load cell, static pressure transmitting device and so on. It also can be configured according to customer’s requirements.

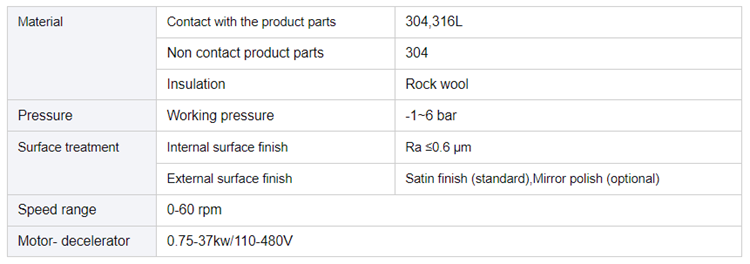

Design parameter
Material
Connection
Design parameter

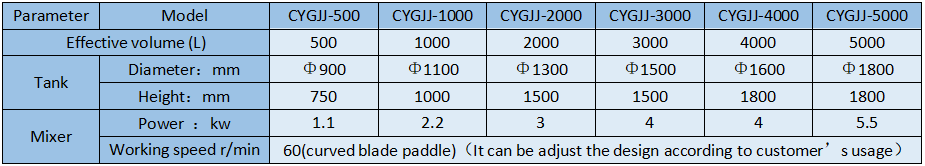

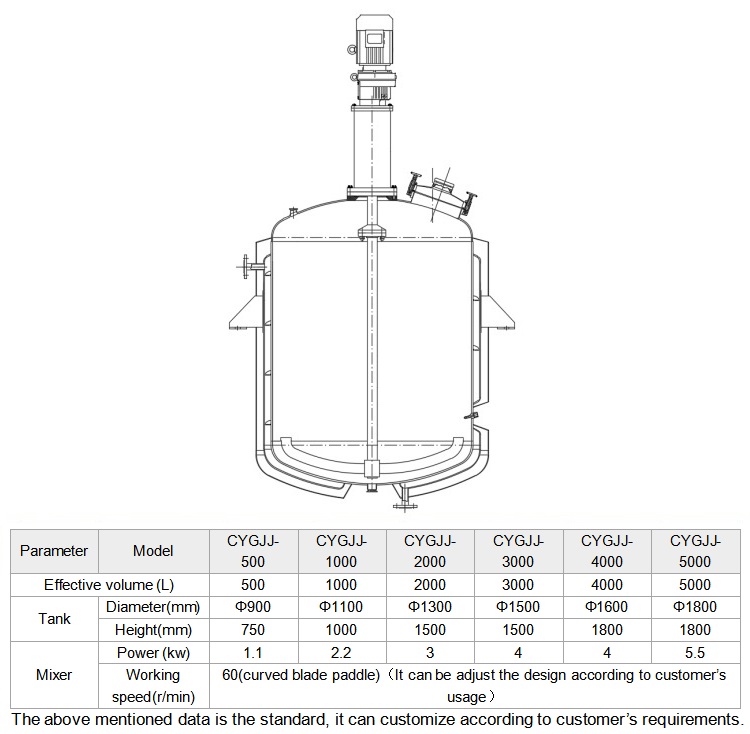

Normal Model and Main Technical parameters
The above mentioned data is the standard, it can customize according to customer’s requirements.
