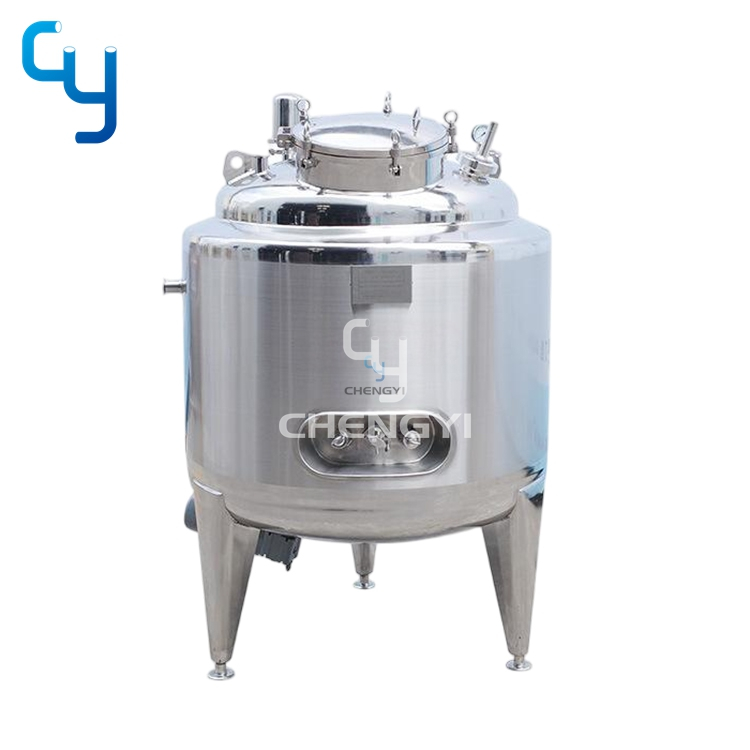

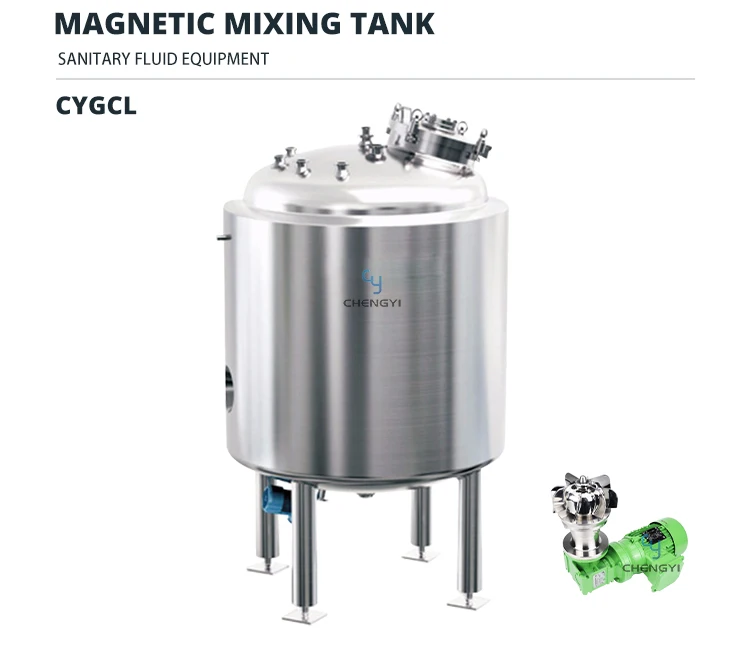

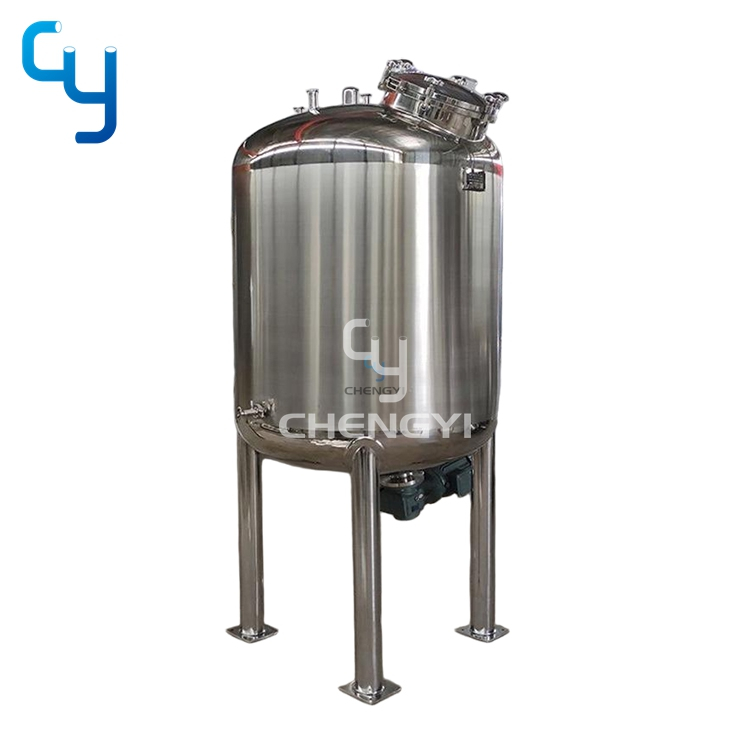

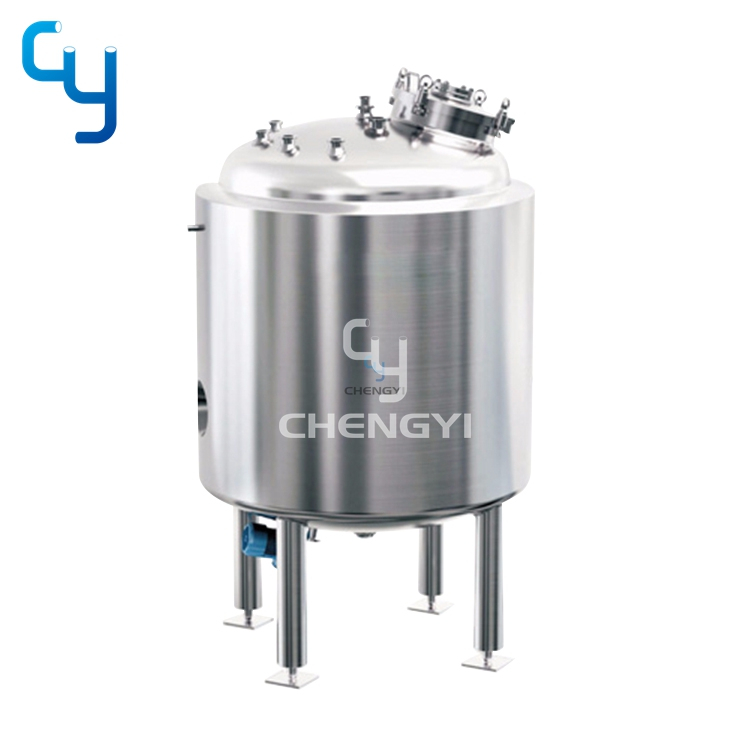

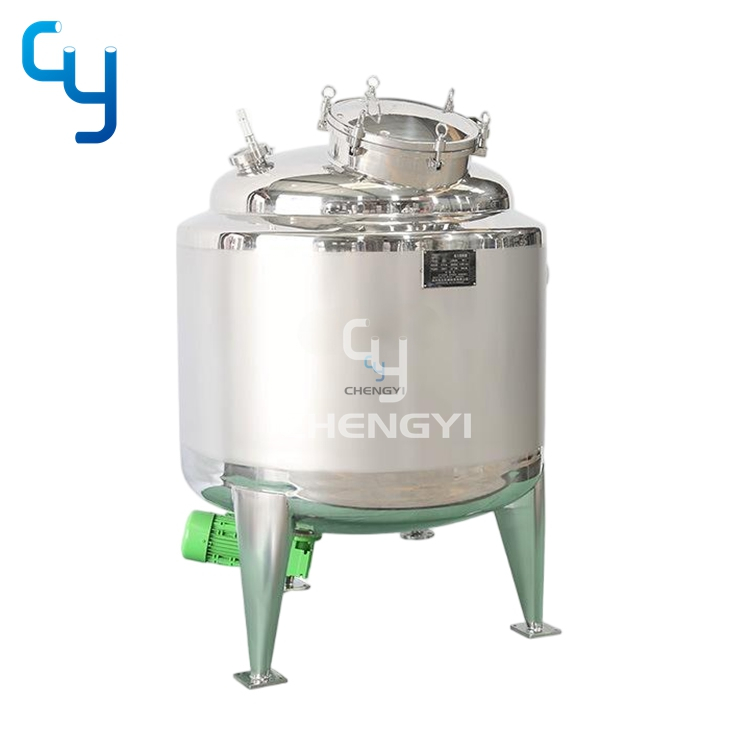

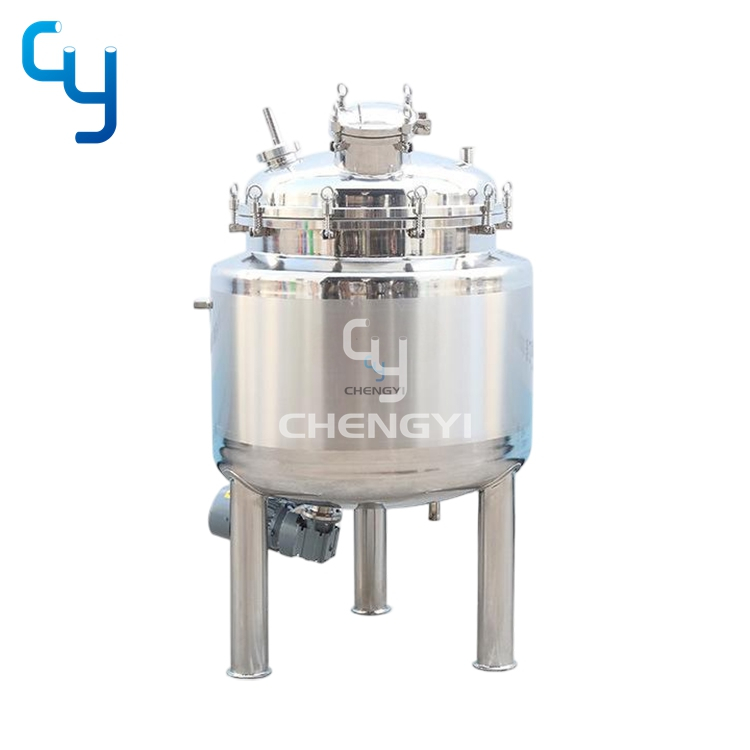

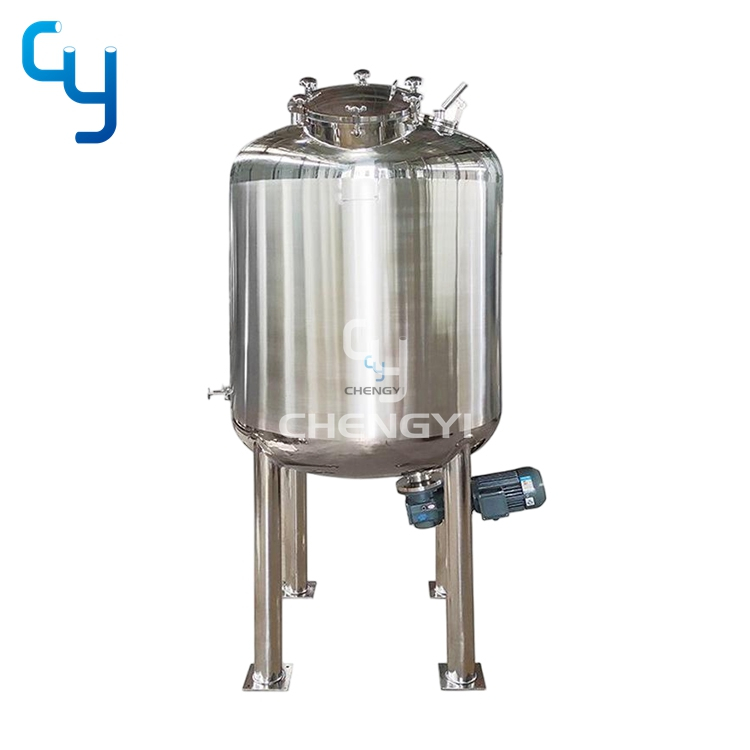

Magnetic mixing tank, which meets to GMP certificate requirements, is designed, manufactured and inspected in accordance with the pressure vessel standard (GB150-2011) and the steel welded atmospheric pressure vessel standard (NB/T 47003.1-2009).

Magnetic mixing tank has the characteristics of no leakage, full sealing, corrosion resistance and energy saving. Because of non-contact carryover moment and the static seal, there is no leakage problem. All material and agitator are in the sterile sanitary condition. The ideal product for pharmaceutic, chemistry, cosmetics and bio-engineering.

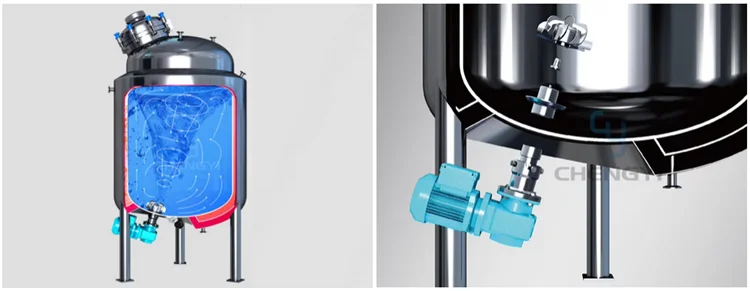

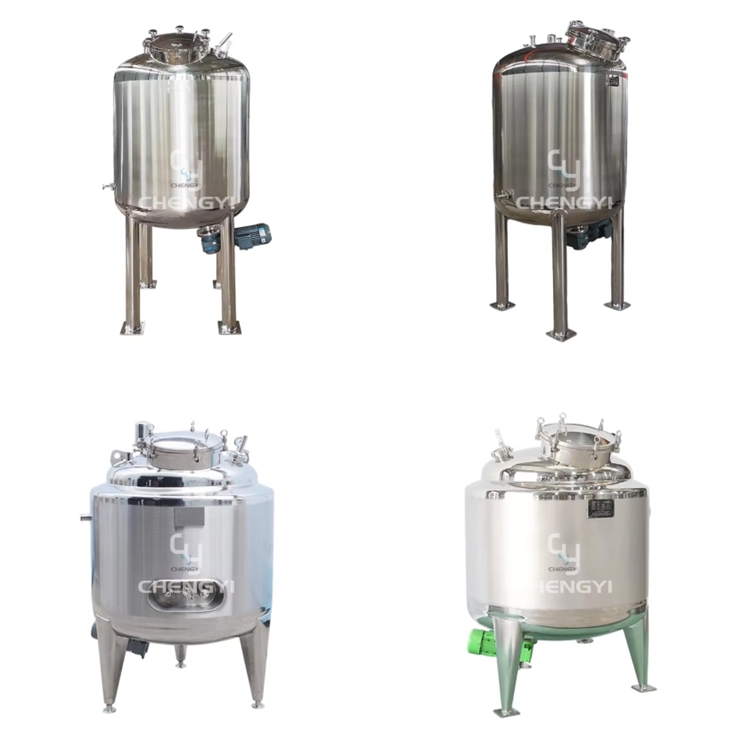

Magnetic mixing tank, with magnetic agitator at the bottom of tank, is aseptic tank. It can be combined with different head structure, different jacket type, single layer or different other requirements. Bottom magnetic agitator can be CIP and SIP.

Feature

The dynamic mechanical seal is replaced by the static dead seal of the welding isolation sleeve, which completely solves the leakage problem of the dynamic mechanical seal.

Bottom magnetic agitator still works well even there is little material left in the tank. Mixing blade design is unique. Speed range is 30r/min～376 r/min. It can adapt to all kids of different material mixing.

Stirring speed is adjusted by frequency converter to meet the requirements of the various process of stirring speed.

Volume range is 30L～20000L, and we can make other specification according to customer’s actual requirements.

Application

It can be used as preparation tank, mixing tank, storage tank, etc... It suits for aseptic mixing and storage of liquid materials in food, dairy, fruit juice, pharmaceutical, chemical and bioengineering industries.

Tank optional configuration

Magnetic Mixing tank can be optionally configured with sight glass with lamp, manhole, cleaning ball, vent filter, pressure gauge, sampling valve , bottom valve, thermometer (digital display or Dial type), PH probe, level gauge and level control system (load cell, static pressure transmitting device and so on). It also can be configured according to customer’s requirements.

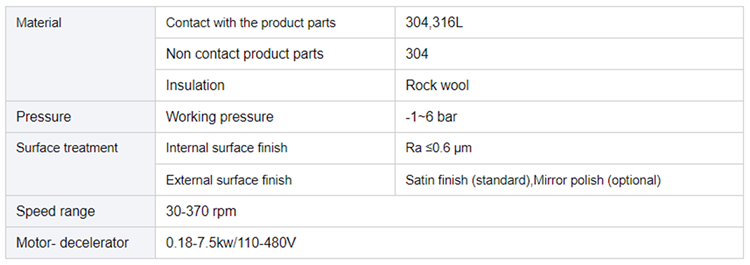

Design parameter

Material

Connection

Design parameter

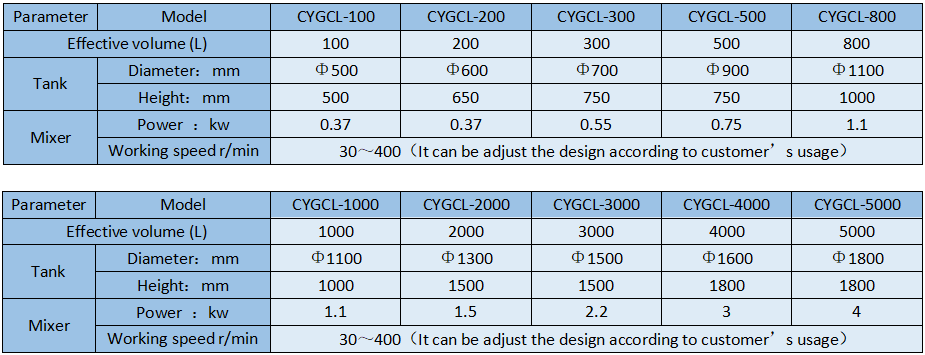

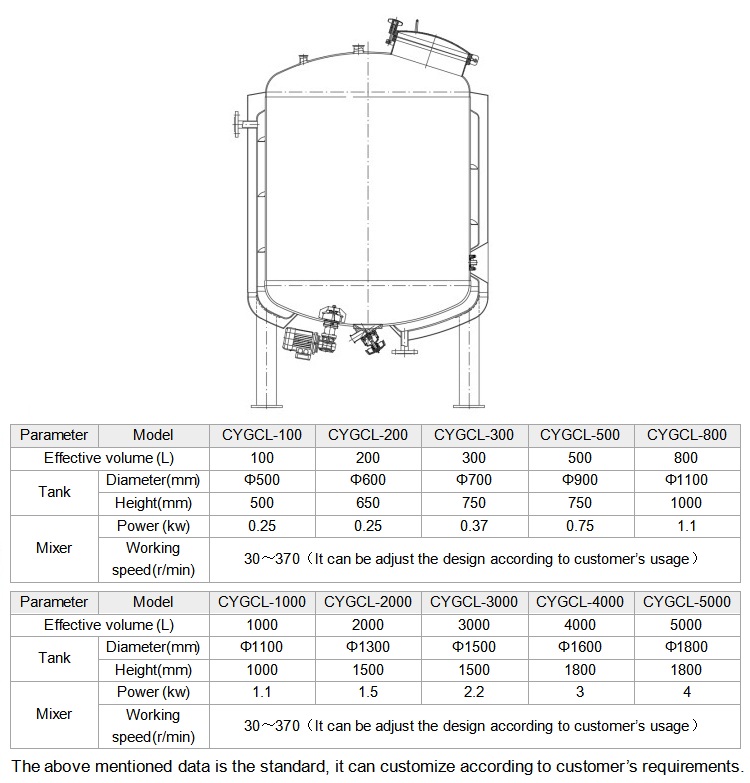

Normal Model and Main Technical parameters

The above mentioned data is the standard, it can customize according to customer’s requirements.
