Application
This valve is in the form of an electric pneumatic regulating valve, used in automation control systems. The three-way regulating valve is designed to meet the needs of two different working conditions. It can be divided into two ways: three-way diversion and three-way confluence. A three-way diversion valve divides a fluid into two different flow rates. The three-way confluence regulating valve is used to mix two fluids into one fluid, or to mix two fluids at different temperatures into the target temperature fluid. Used in a wide range of fields such as alcohol, pharmaceuticals, food, and water treatment.
Work principle

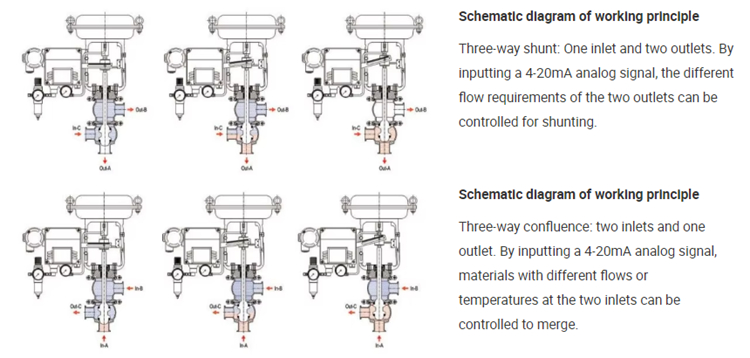

By providing a 4-20mA signal to control the valve opening percentage, the three-way regulating valve is designed to meet the needs of two different working conditions. It can be divided into two ways: three-way diversion and three-way confluence. A three-way diversion valve divides a fluid into two different flow rates. The three-way confluence regulating valve is used to mix two fluids into one fluid, or to mix two fluids at different temperatures into the target temperature fluid.

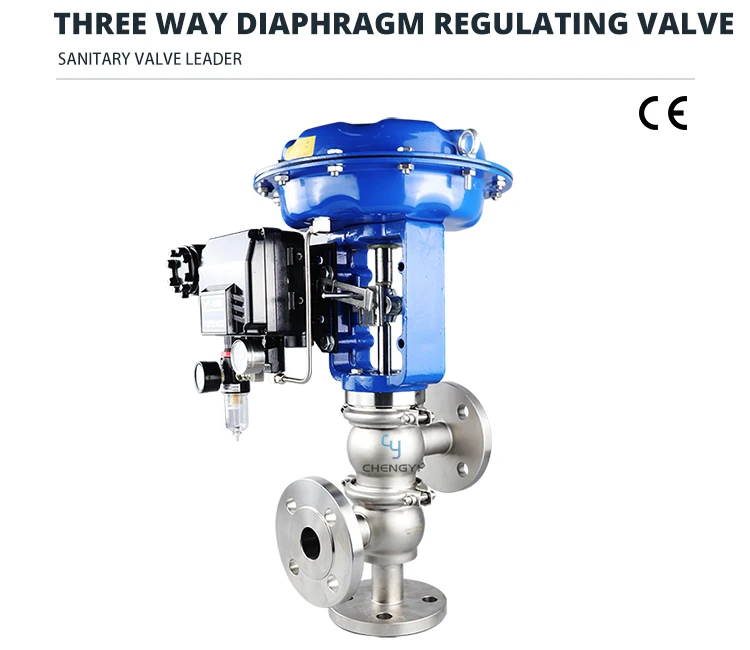

Three Way Diaphragm Regulating Valve
