Application
Control gas: neutral gas, air
Control liquid: automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.
Control liquid: automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on. The angle seat valve is extensively use to frequently start in short time, with feature of response delicacy and exact action.
Working principle
Angle seat valve keep the flow speed and can save the space, it adopts oriented angle seat valve which have spring safety
protective single function pneumatic actuator for operated. When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator to ensure use longer.
protective single function pneumatic actuator for operated. When use, should choose normally open or close. The product is made of steel and PTFE, it can use to the majority gas, fluid, steam and causticity occasion. It have radiator to the actuator to ensure use longer.
Feature
1. It have valve open or close position display.
2. Pneumatic guide outside can prolong the service life, maintenance free.
3. It have self-regulation sealing gland between overflow and slider, can improve sealing property.
4. The structure of angle seat valve body can achieve mass flow (especially compare with normal stop valve), compact structure response is fast.
2. Pneumatic guide outside can prolong the service life, maintenance free.
3. It have self-regulation sealing gland between overflow and slider, can improve sealing property.
4. The structure of angle seat valve body can achieve mass flow (especially compare with normal stop valve), compact structure response is fast.

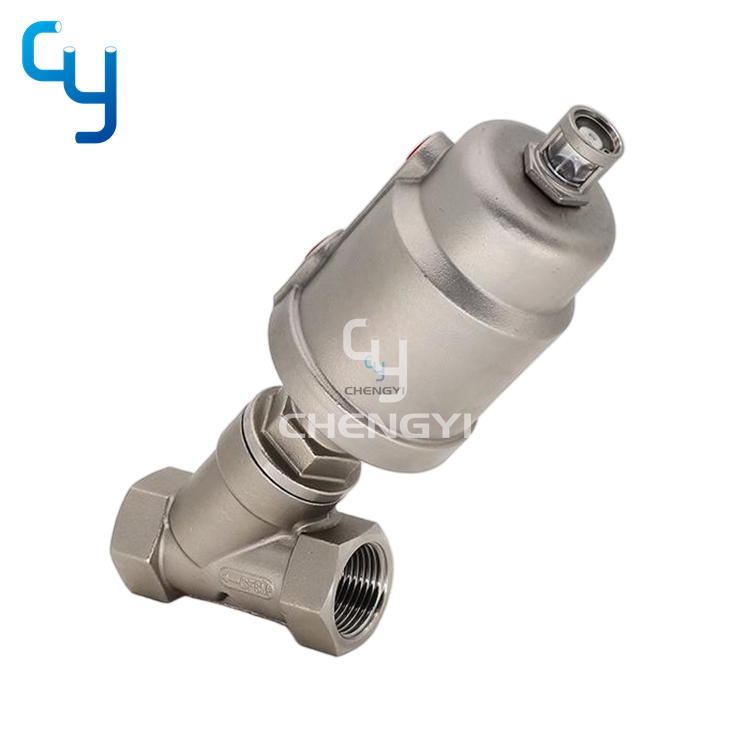

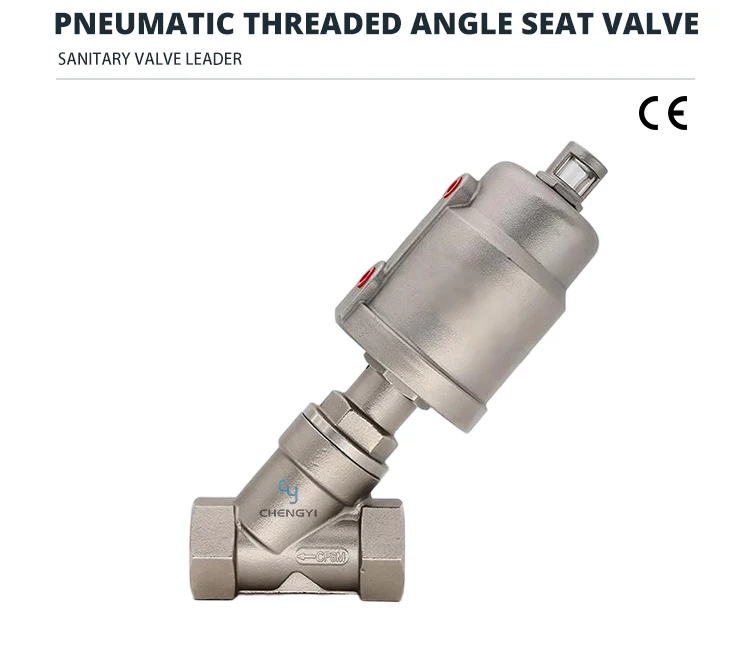

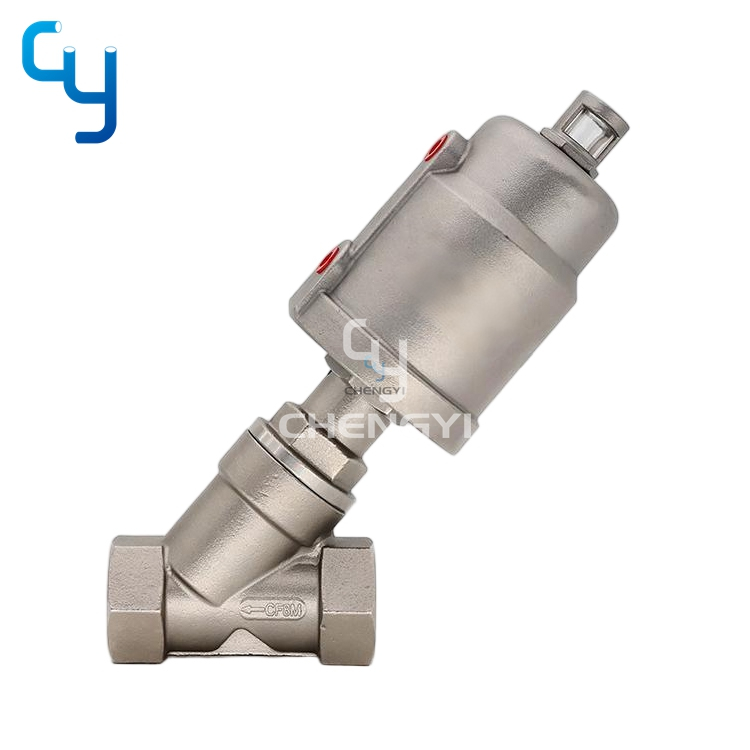

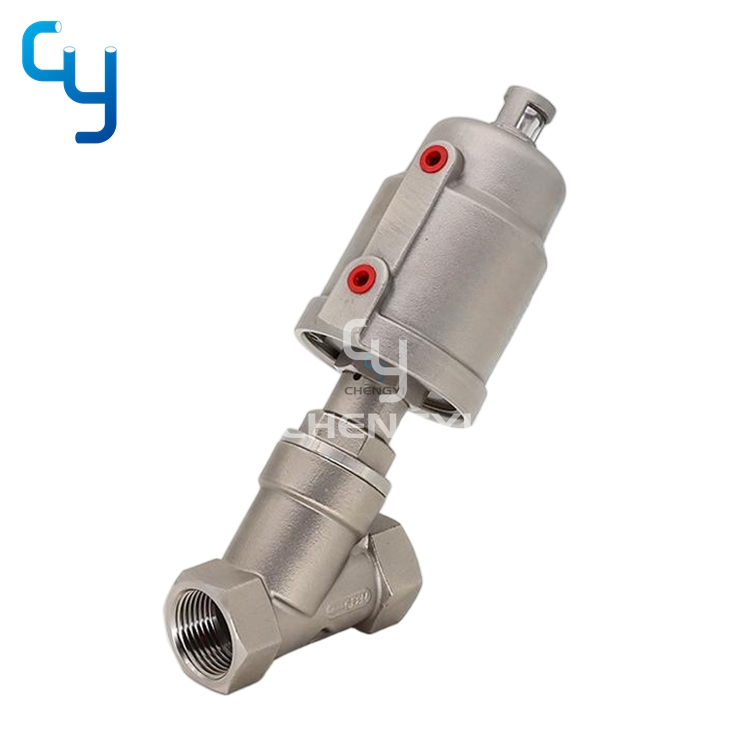

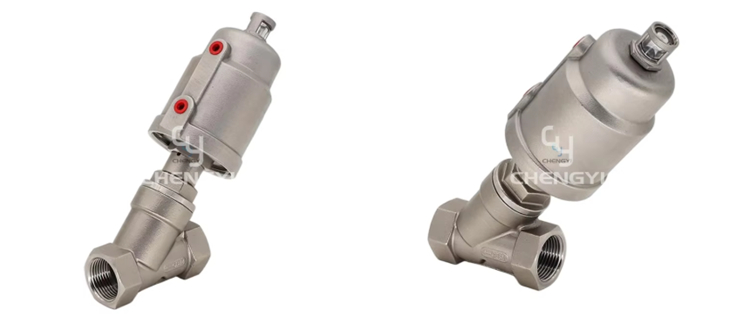

Pneumatic Threaded Angle Seat Valve
