Application
This type of butterfly valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage, pharmaceutical and chemical industry area.
Work principle
Manual butterfly valve can be controlled by handle manually.
Multi position handle regulates the valve by 15℃ in its open or close 12 seat, and achieve control of medium flow purpose.
Pulling handle regulates the valve through three multi-function positioning in its open or close three position, and also achieves control of medium flow purpose.
Multi position handle regulates the valve by 15℃ in its open or close 12 seat, and achieve control of medium flow purpose.
Pulling handle regulates the valve through three multi-function positioning in its open or close three position, and also achieves control of medium flow purpose.

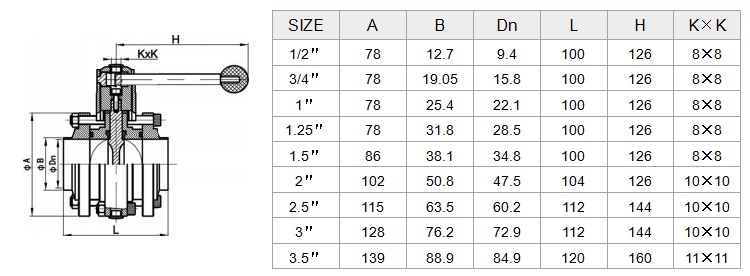

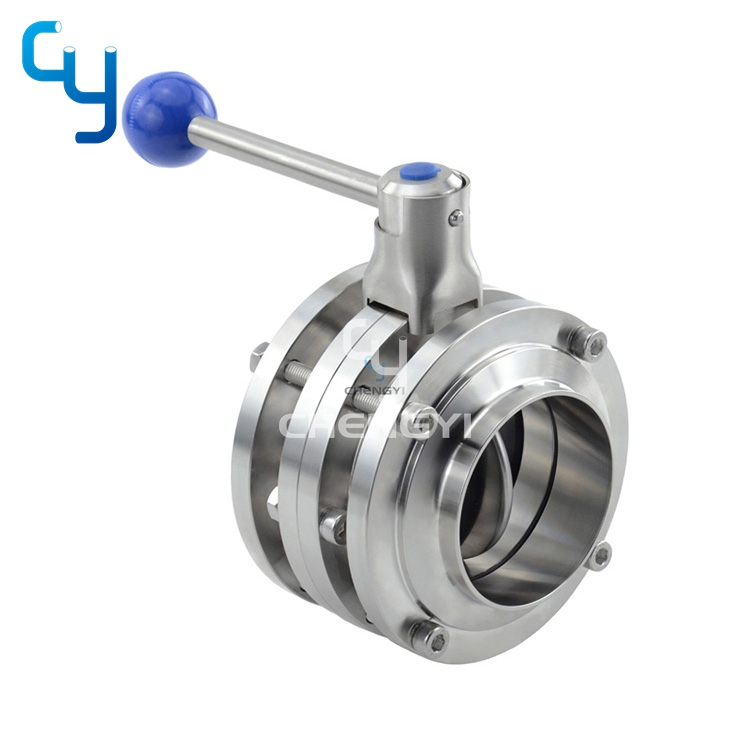

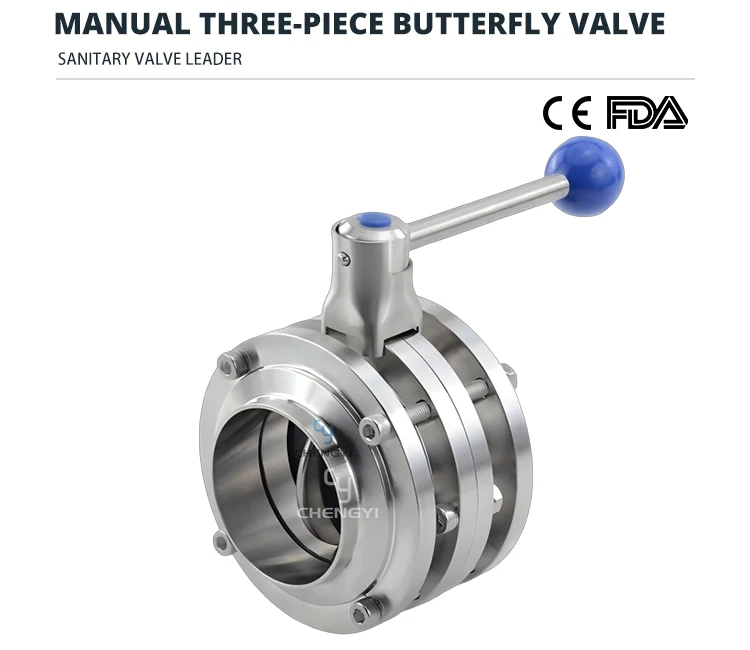

Welded Three-Piece Manual Butterfly Valve
Handle type

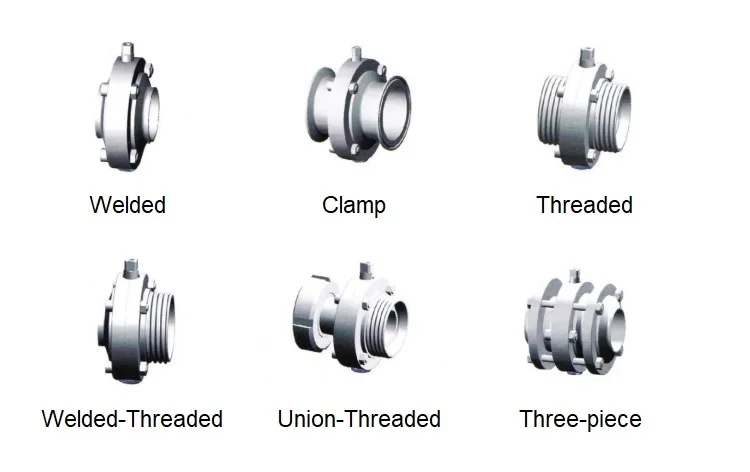

Connection type
