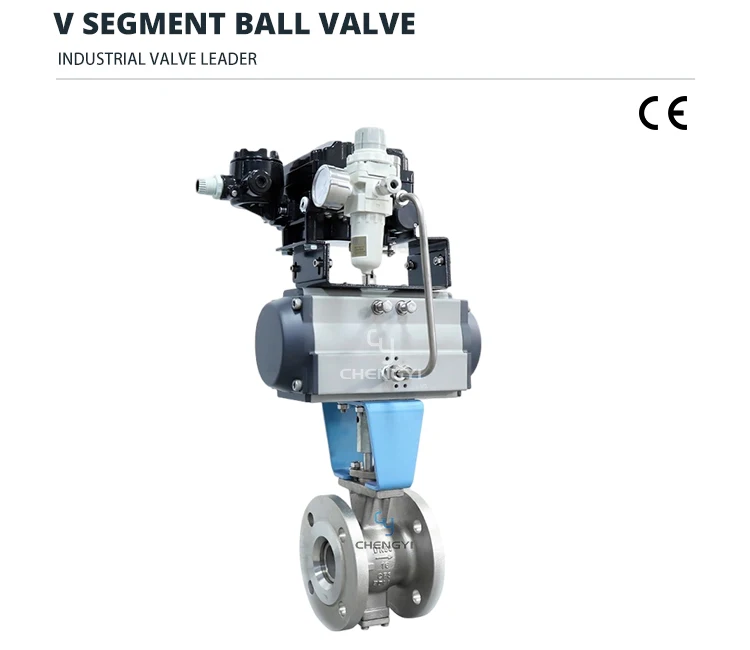

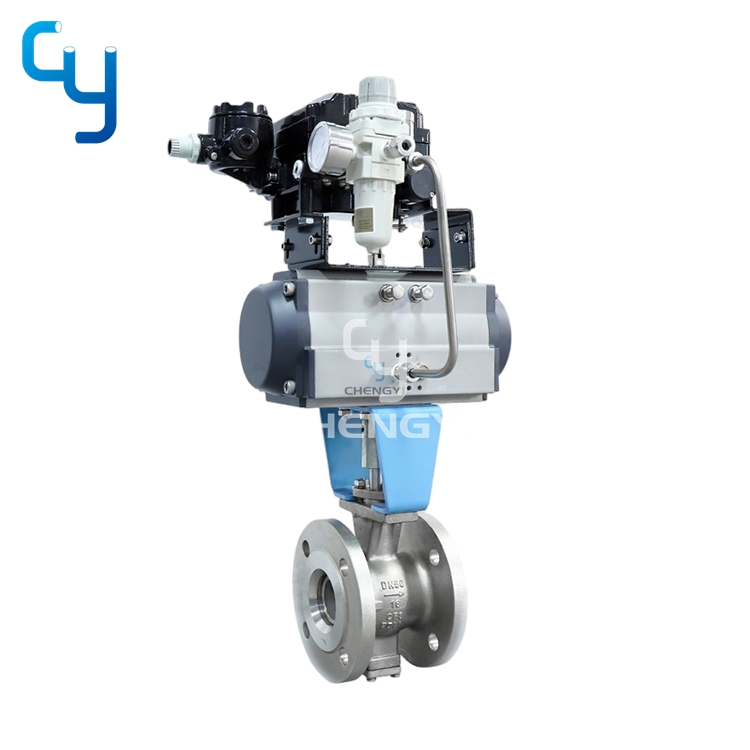

Production introduction
A V-shaped port is installed on the hemispherical valve trim. By adjusting the opening angle of trim, the cross-sectional area of the medium flow can be modified to regulate flow rate. This design also enables on/off control for pipeline operation. The self-cleaning feature allows precise flow regulation within narrow operating ranges, featuring a big range ability that makes it suitable for handling media containing fibers, fine particles, or slurry-like substances.
Product characteristic
Low flow resistance, large flow rate, range ability up to 100:1
Quick opening and closing, prevent blockage
Seal is reliable and the application scope is wide
Quick opening and closing, prevent blockage
Seal is reliable and the application scope is wide
application area
Pharmaceutical, chemical, petroleum, electric power, lithium battery, food

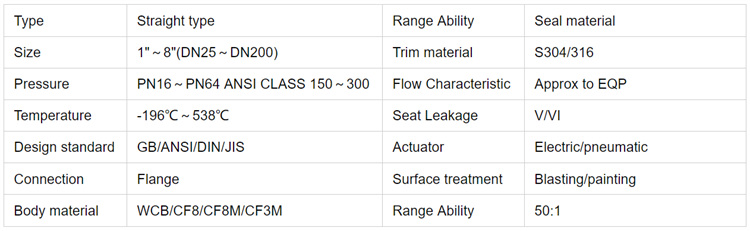

1"-8",DN25-DN200
