Operation principle
CYH high shear dispersing emulsifier effectively, quickly and evenly disperse a phase or phases to another consecutive phase, usually, these phases are dissolvable to each other. The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect, therefore, the material in the narrow slot among stator and rotor receives strong forces from mechanical and liquid shearing, centrifugal force, pressing, liquid fraction, clashing, tearing and rush water. The dissolvable solid, liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made.
Structural features
The rotor revolves in high speed produces centrifugal force,which suctions the material from upper and lower feeding area axially to the operation chamber.
The strong centrifugal force throws the material axially to the narrow slot between stator and rotor. The material then receives centrifugal press, clash and other forces, which firstly disperse and emulsify the material.
The outer terminal of the rotor revolved in high speed produces a line speed more than 15m/s and even up to 40m/s,which produces strong mechanical and liquid shearing, liquid abrasion, clashing and tearing which fully disperse, emulsify, homogenize and break the material and jet from the stator slot.
As materials jet in radial in high speed, they change their flow direction with resistance from themselves and vessel walls.The upper and lower axial suction force then leads to strong upper and lower rushing flows. After many circulations,the material is finally dispersed and emulsified evenly.

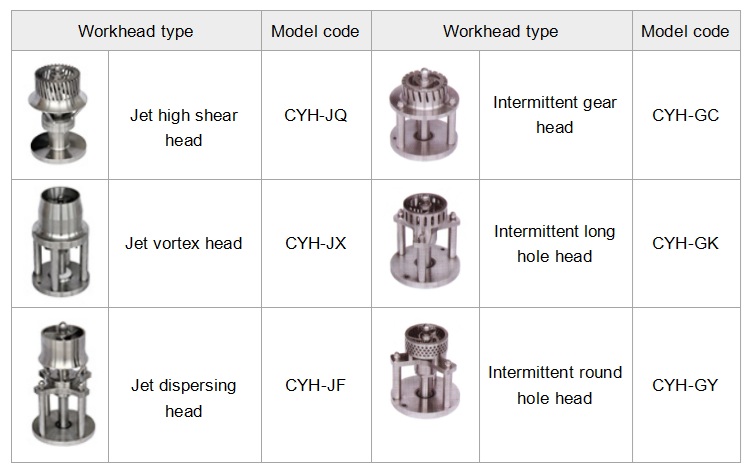

Work Head Type
Common
Structural Types According to the characteristics of the materials and
the user's process requirements, we will choose the appropriate
structural type and speed.
Note: Adding the model code for the working header type after the regular model name to make the difference.

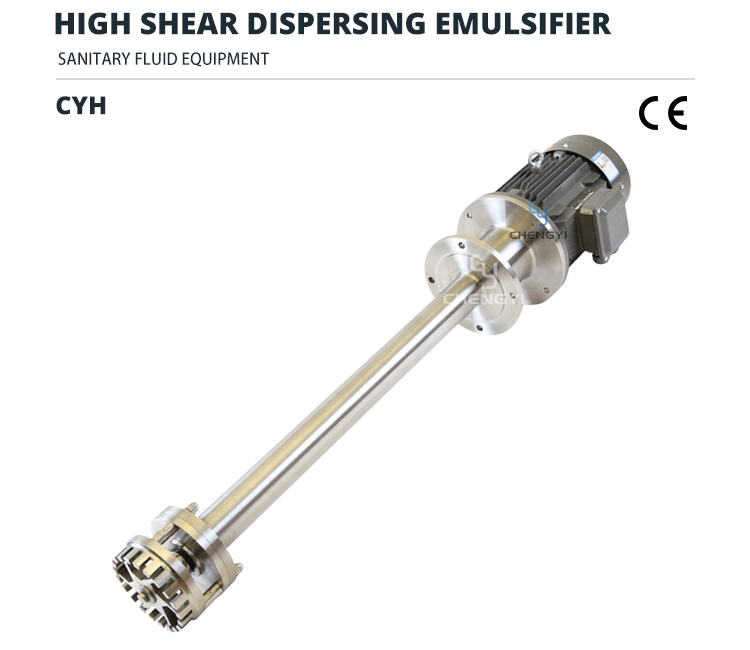

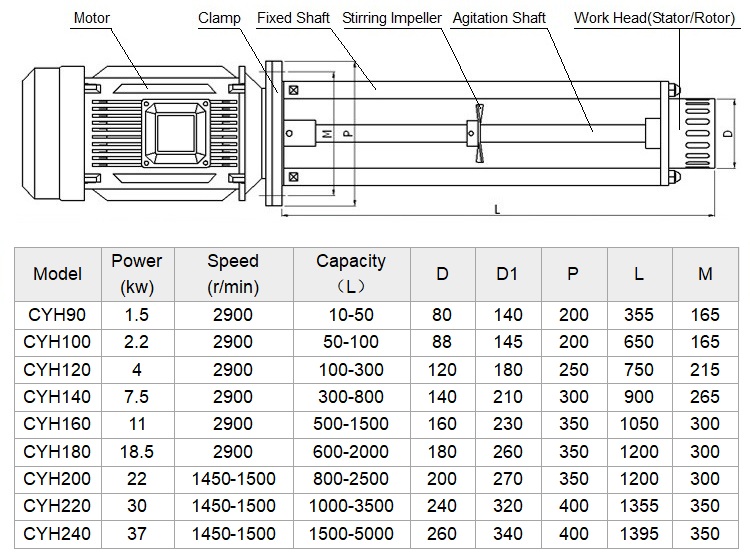

High shear dispersing emulsifier

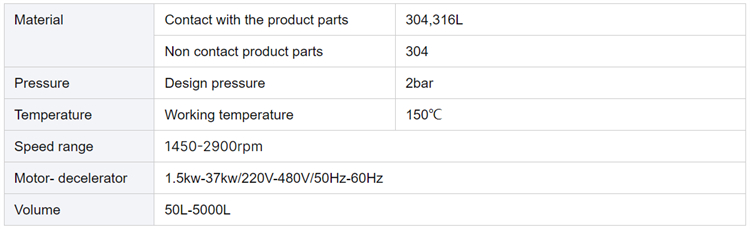

The above table specification is only for reference, we can customized.
Application
Mixing dissolving:
Soluble solid or liquid blends together with liquid in the state of the molecule or the gum
Crystallization
powder, salt, sugar, ether sulphate, abrasive, hydrolysising colloid,
CMC, thixotropy, rubber, natural and synthetic resin.
Dispersed suspension:
Unsoluble solid or liquid forms finer particle blended solution or suspended solution
Catalyst, flatting agent, pigment, graphite, paint coating, alumina, compound fertilizer, printing ink, packing agent, weed killer, bactericide.
Emulsification:
Unsoluble liquid together with liquid does not separate
Cream, ice cream, animal oil, vegetable oil, protein, silicon oil, light oil, mineral oil, paraffin wax, wax cream, rosin.
Homogeneity:
Make emulsification and suspended grain size finer with more even distribution
Cream, flavouring, fruit juice, jam, condiment, cheese, fat milk, toothpaste, typing ink, enamel paint
Thick liquid:
Cell’s tissue, organic tissue, the animal and plant tissues
Chemical reaction:
Nanometer material, inflating with higher speed, synthesization with higher speed
Extraction:
The vortex extraction
Depolymerization:
Nanometer powder, dough powder
