Application
This reversing valve is used to switch the material flow in equipment pipelines and is widely used in industries such as food, brewing, beverages, dairy products, toothpaste, cosmetics, biopharmaceuticals, etc.
Work principle
Rotate the rocker counterclockwise, and the transmission thread inside the rocker and the transmission thread on the bracket act. The rocker pushes the valve stem and seat up to open the valve; Rotate the joystick clockwise to push the valve stem and seat down, causing the seat sealing ring to compress the sealing surface of the lower valve body and close the lower valve port. Mainly used for fluid cut-off in pipeline systems, applied in pipeline systems.
Material Flow Diagram

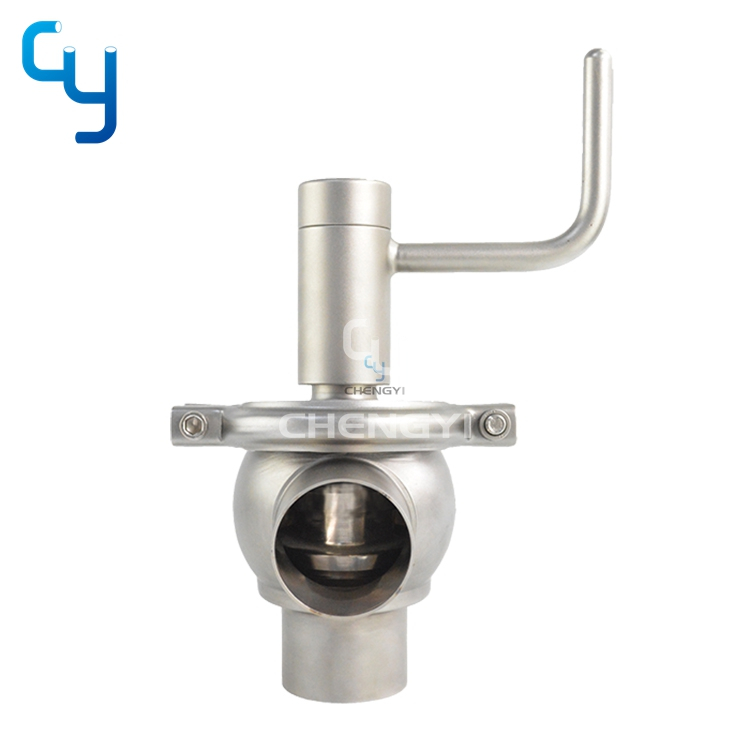

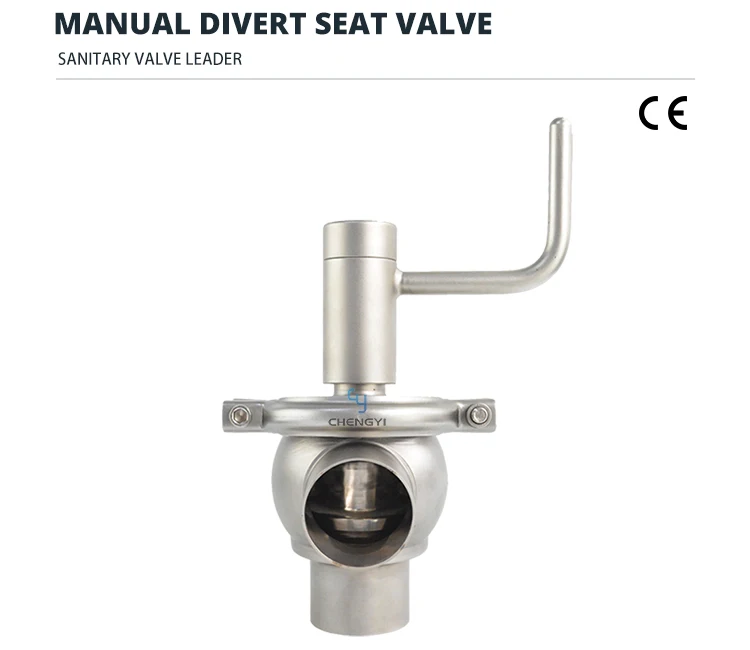

Manual Divert Seat Valve
Interface Shape
Body Combination
