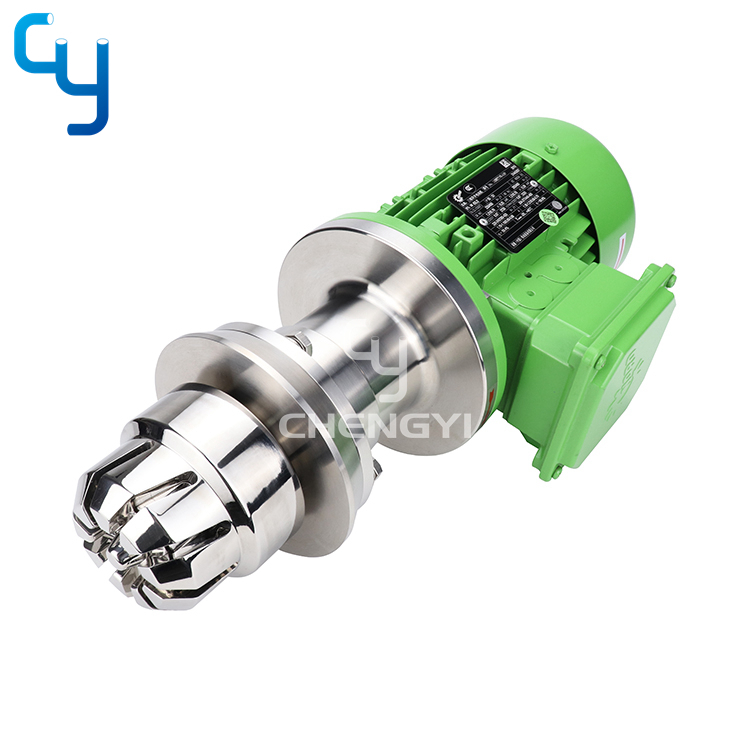

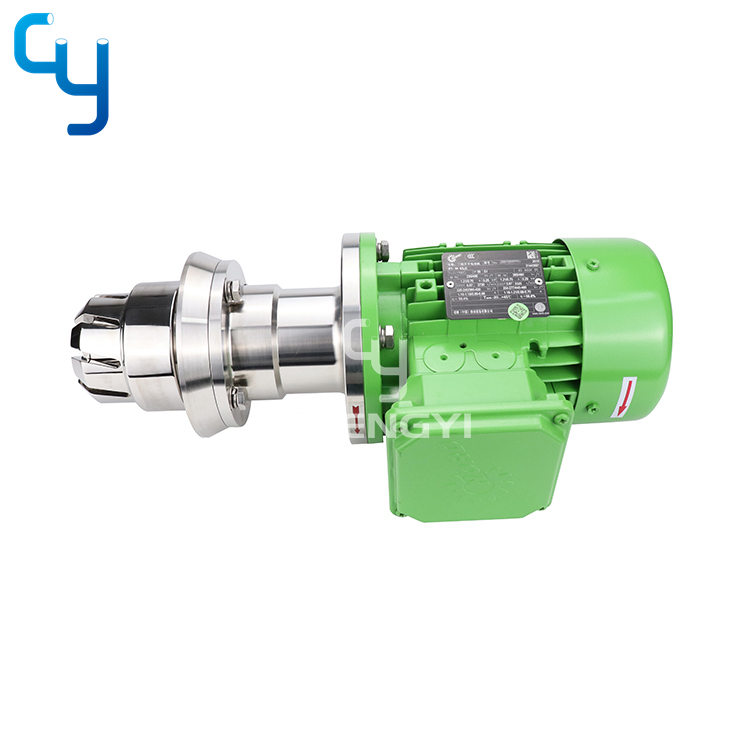

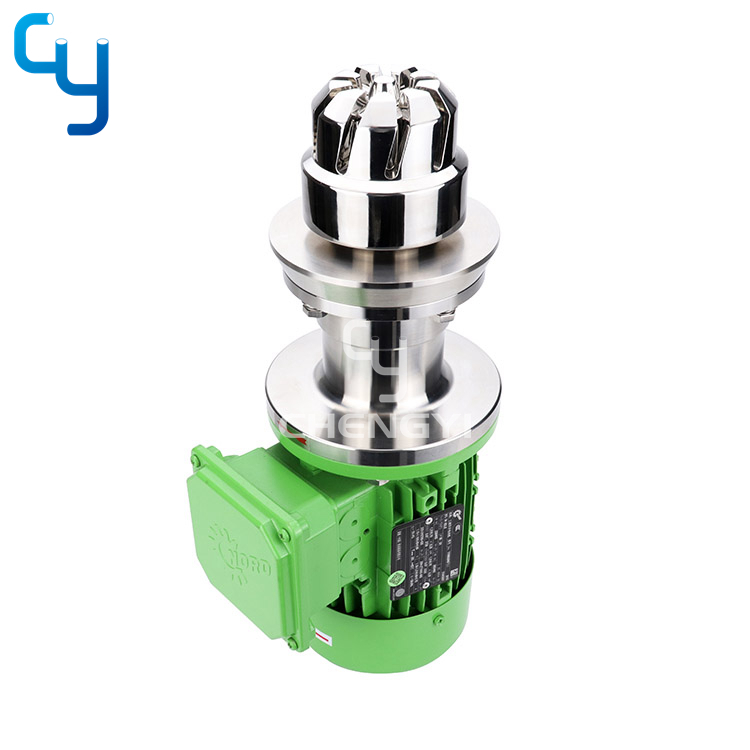

Product Introduction
The
magnetic mixer, a fully closed, non-leakage, non pollution mixing, is
installed at the bottom of tank. Because the sanitary magnetic agitator
is a non-contact transmission torque with no transmission shaft, it is
made by magnetic drive. The dynamic seal was replaced by the static
seal, which solved the problem that the other shaft seal could not
overcome the leakage. The whole material and the stirring parts were
operated in a sterile and sanitary state. It is pharmaceutical, fine
chemicals, cosmetics, bioengineering and other industries ideal
replacement products.
Application scope: mixing device for all kinds of reactors, mixing tank and storage tank
Working condition: inflammable, explosive, easy to leakage, high requirement on sealing
Work Principle
Good performance, reasonable structure, small volume and reliable use.
The mixer is composed of inner magnetic steel, external magnetic steel, isolation sleeve and driving motor.
It is applied to mixing device of stainless steel reactors and mixing tanks.
All the contact materials of the magnetic agitator are made of 316L. The working principle of permanent magnetic coupling is used to drive the operation of stirring shaft. The dynamic mechanical seal is replaced with static mechanical seal, which solves the unavoidable problem of mechanical seal. The magnetic agitator produces a whirlpool by rotating, sucking dissolved powder or liquid into the swirl and being quickly sucked into the stirring impeller.
When the suction direction of the impeller rotates with the impeller, the centrifugal force impinges different media into the tank wall in the form of radiation from the outer diameter of the impeller.
After hitting the tank wall, the liquid is sucked back to the suction end of the impeller with impact force and rising cycle.
The constant moving agitation under the impeller thrust results in homogenization, mixing, dissolution and dispersion.
Product Structure
2. Simple structure, low maintenance costs, easy to disassemble, easy to clean, without dead ends.
3. Installed at the vessel bottom, it can mix the media even the capacity is very small. The uniquely designed stirring blade can mix and stir various media.
CIP Design
Large cleaning gap, easier to clean, and less material cutting
Magnetic Drive Technology
No mechanical seal -- fully integrated Open design -- the best online cleaning effect No baffles required -- easy to verify, easy to maintain

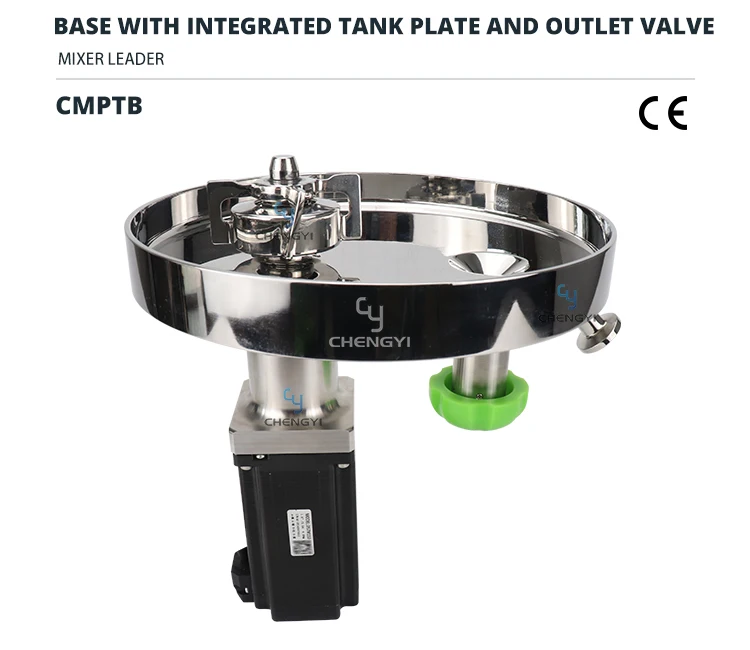

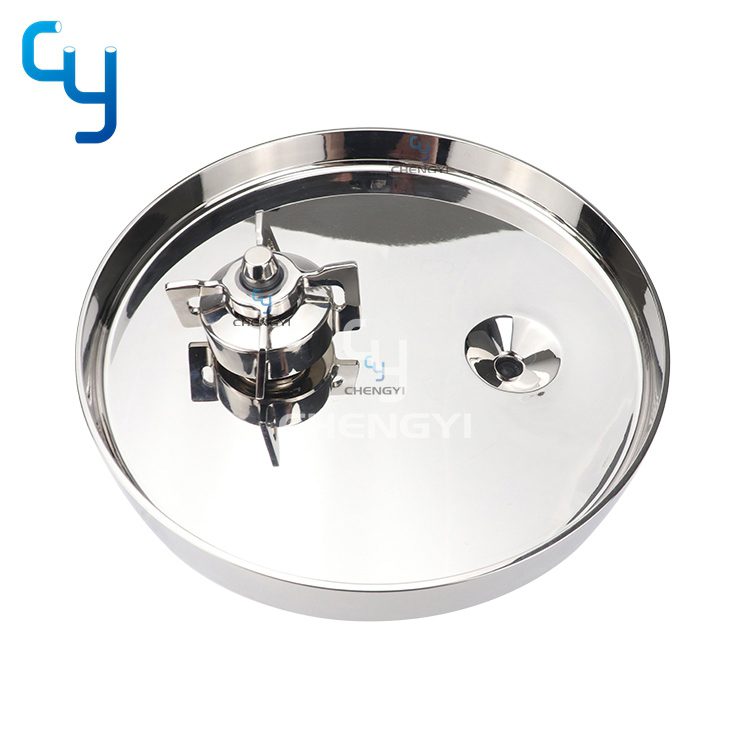

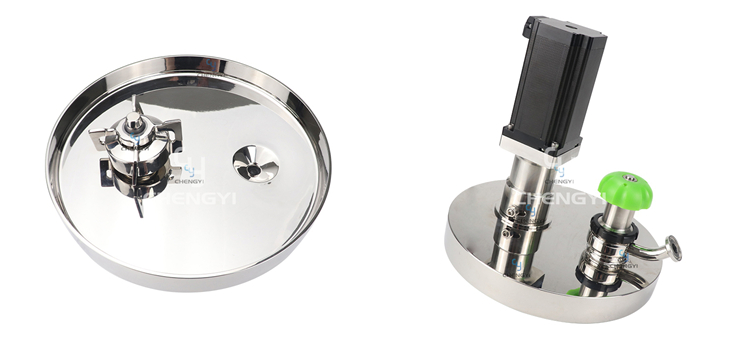

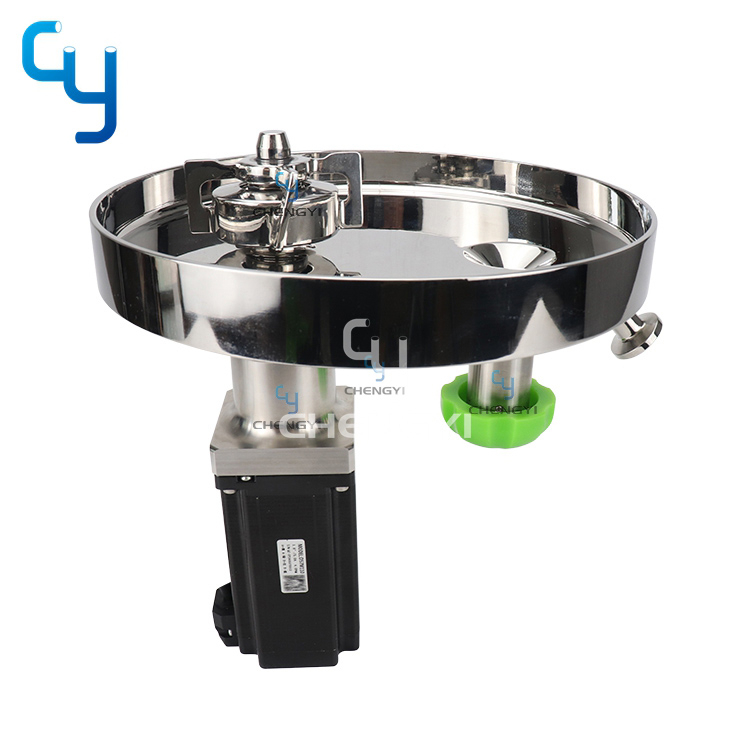

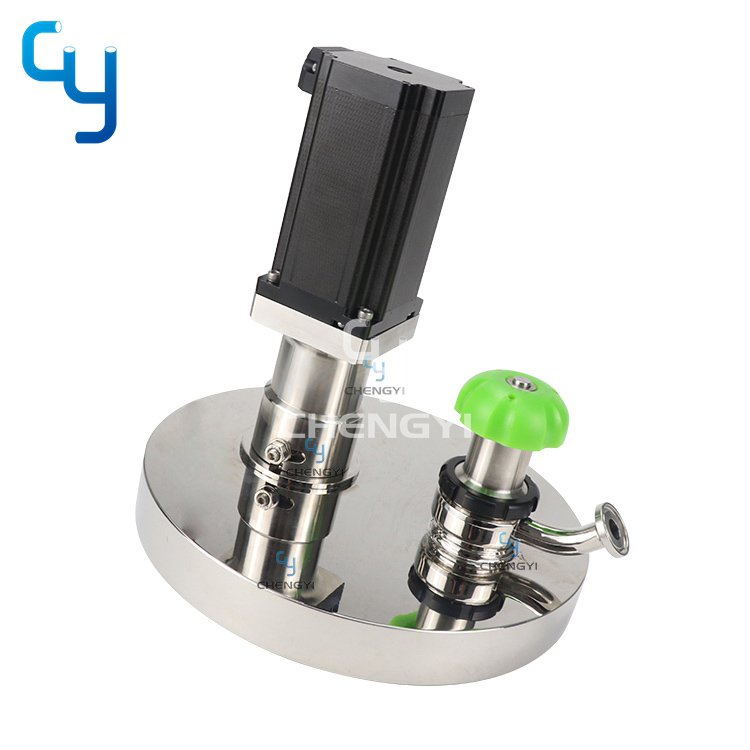

Base With Integrated Tank Plate And Outlet Valve
We can make according to client's different diameter requirement.

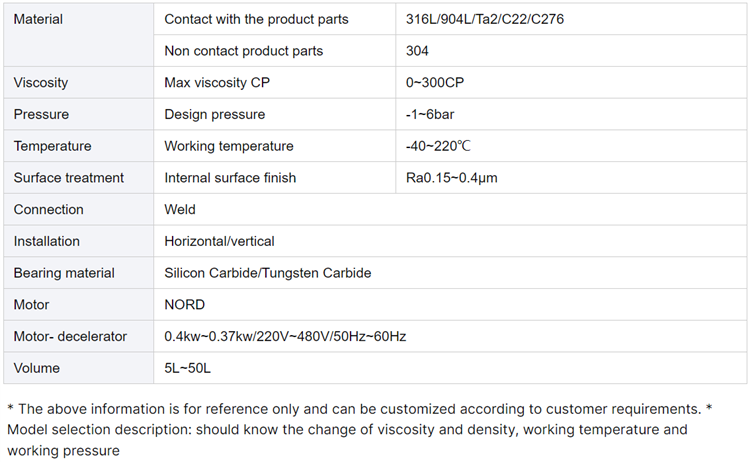

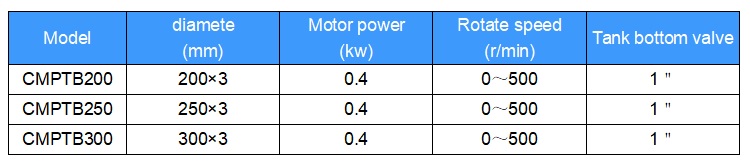

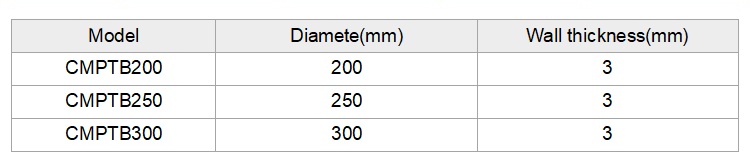

Model selection description:This selection table is for reference only for liquid mixing parameters (viscosity CP in water units). We can customized according to client detail requirments.
