Application

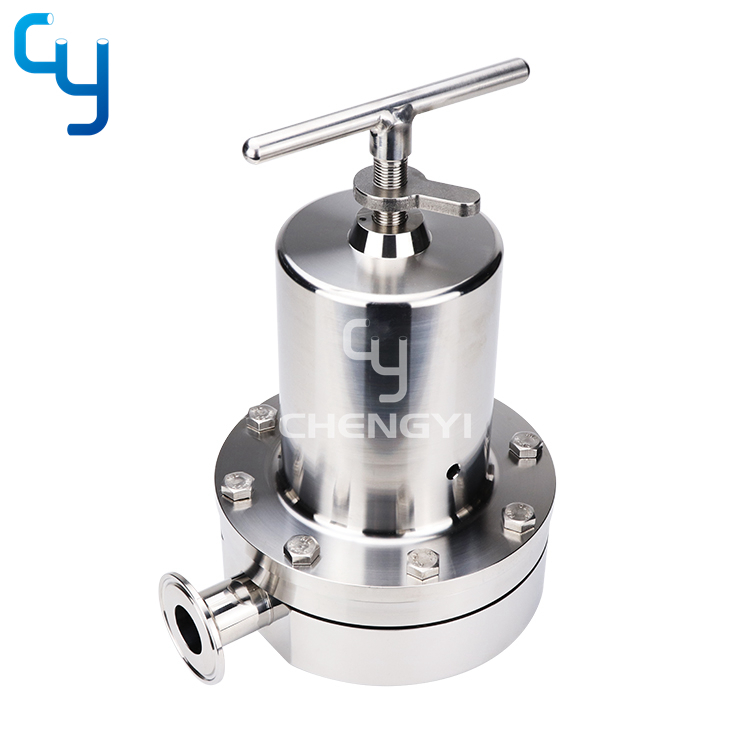

CYRVB Sanitary Pressure Regulator is designed to regulate pressure in systems requiring the maintenance of sanitary conditions.

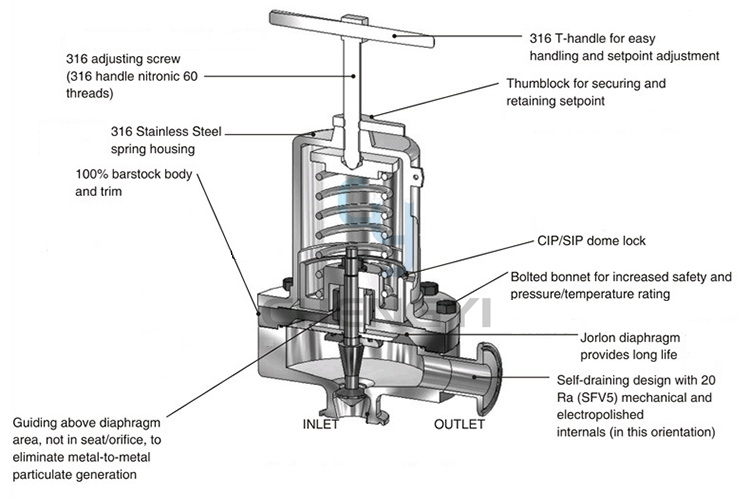

CYRVB operates by sensing pressure under the diaphragm on the downstream side of the seat. As the downstream pressure approaches the set point, theforce caused by the pressure acting on the diaphragm overcomes the force of the range spring, and the plug begins to move up toward closed. This reduces the downstream pressure and maintains the set point. lf the pressure under neath the diaphragm begins to fall, the spring forces the plug to move down towards open, to allow the set point to be maintained.

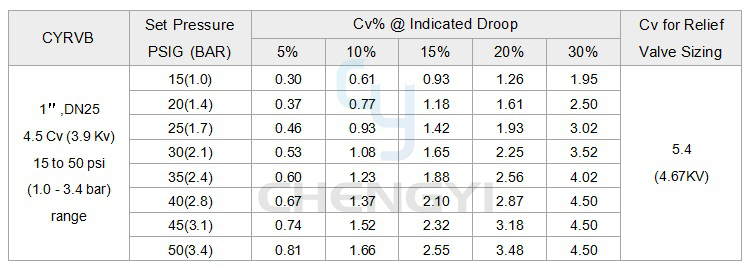

Capacity Cv At Various Droop %
Set Point Spring Ranges:

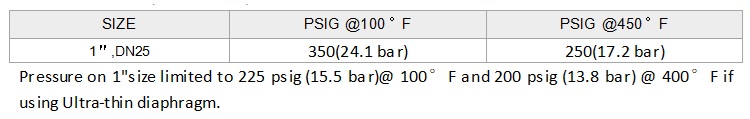

Body Pressure Temperature Rating: (dependent upon construction)
Capacity Cv At Various Droop %
Set Point Spring Ranges:
Body Pressure Temperature Rating: (dependent upon construction)

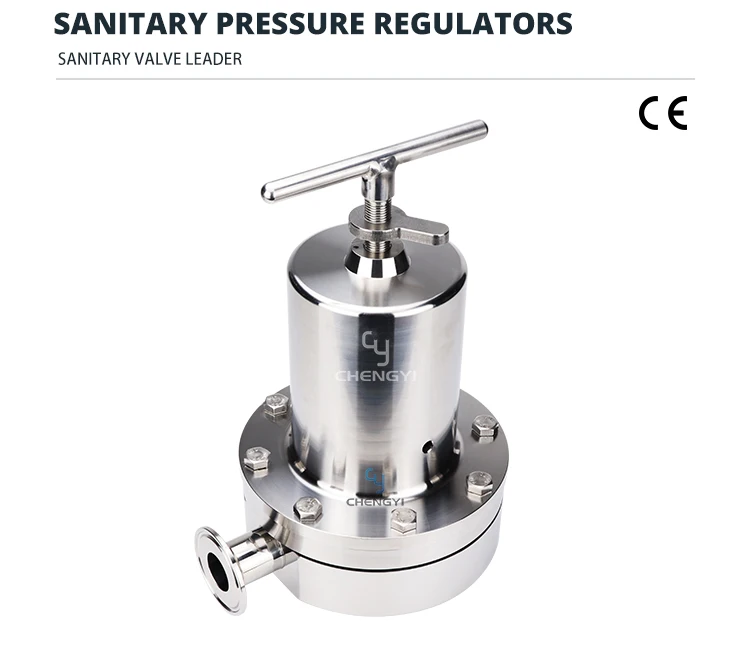

Sanitary Pressure Regulators
