The diaphragm valve is normally closed, where the diaphragm clings to the inner cavity of the valve body and closes the pipeline flow path. When the diaphragm valve needs to be cleaned or opened, the stem moves upward by rotating the handwheel manually or driving the pneumatic control actuator, and the spherical diaphragm bends upward, so that the valve is open and reach the requirement of clean and open. The diaphragm separates the inner cavity of the lower valve body from the inner cavity of the upper valve cover, so that the stem and valve core located in the upper part of the diaphragm are not corroded by the medium, thus the packing sealing structure is eliminated and the medium leakage will not occur. Optimized valve body design made the cleaning liquid discharge fully, do not form a retention phenomenon.

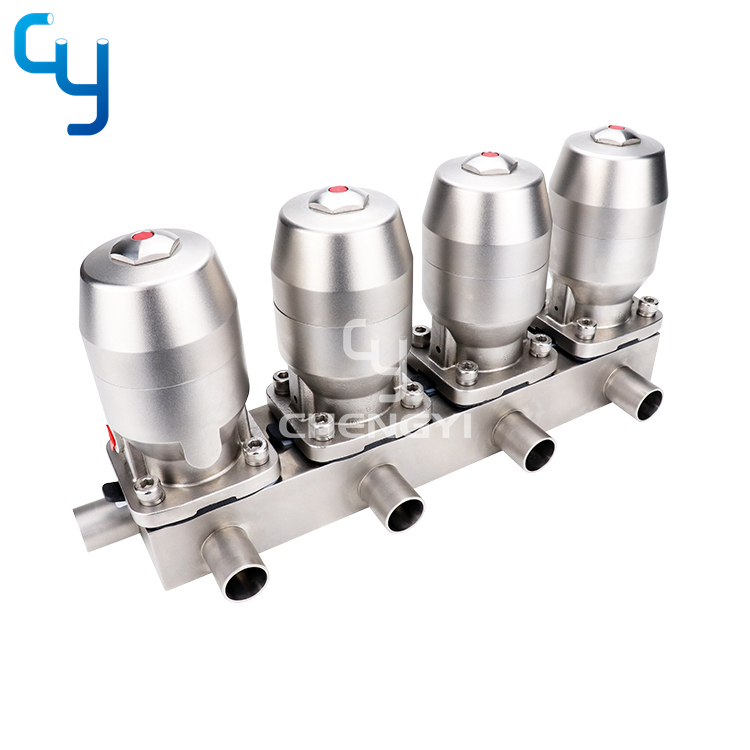

Multi-channel body: The main characteristic is that it can achieve complex fluid control. It can also minimise the pipe distance between each diaphragm valve and reduces the dead zone between the pipes. Because this valve body is processed by CNC with a single piece of stainless steel,it has higher density and stronger corrosion resistance.
We can design and fabricate according to customer’special requirements also.

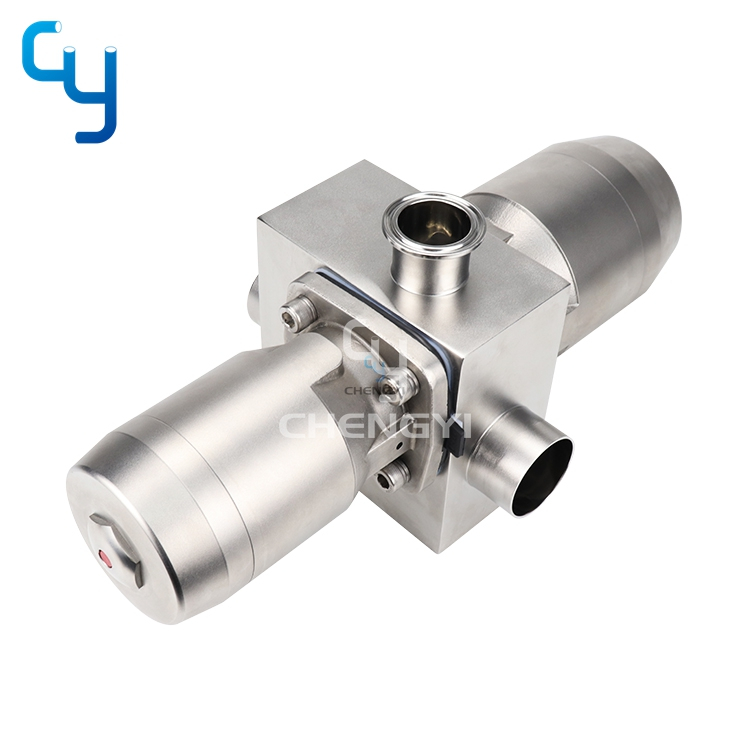

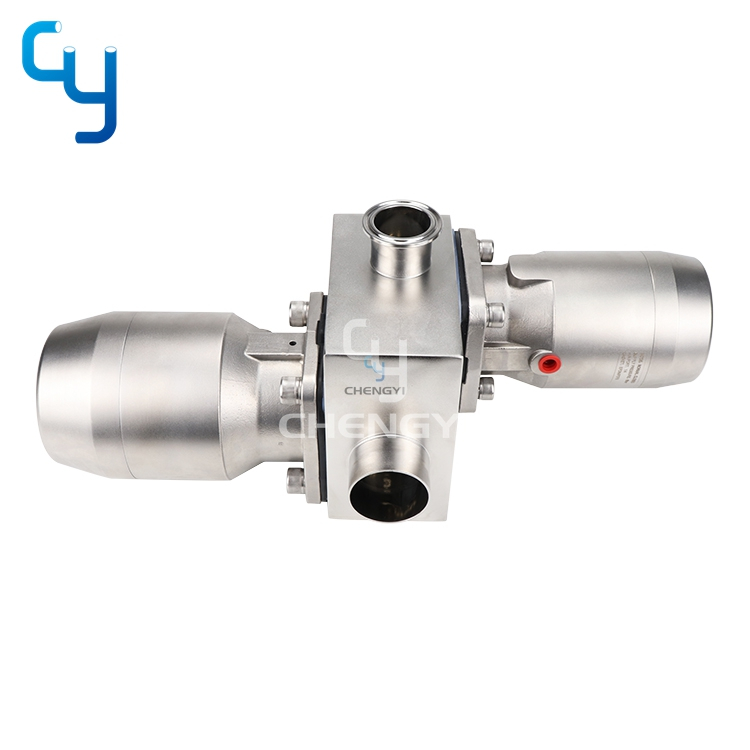

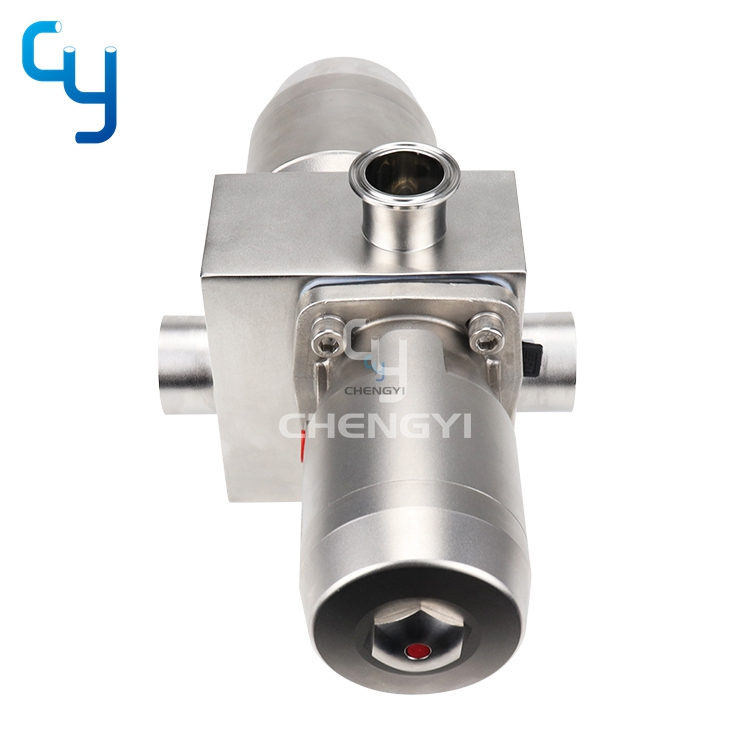

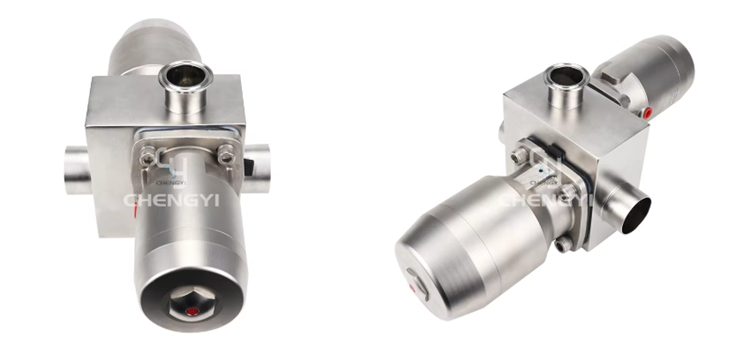

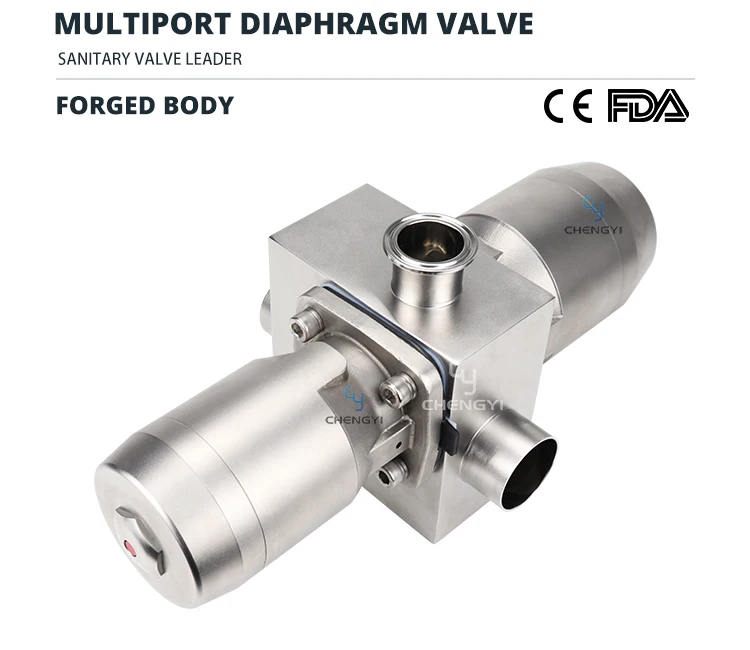

Multiport Diaphragm Valve
1/4"-4",DN6-DN100, OEM
