Application:

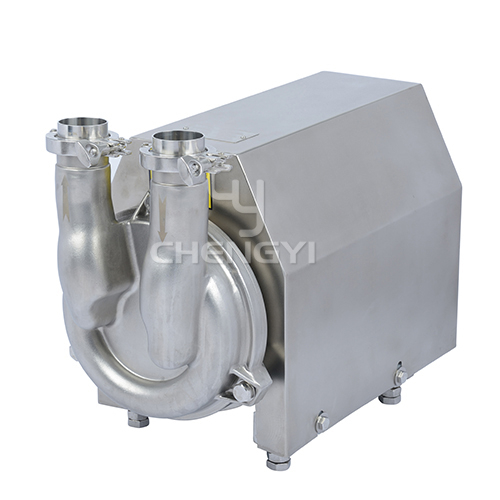

The self-priming pump is a sanitary design, widely used in food, pharmaceutical, fine chemical and other industries; its excellent self-priming capacity for handling gaseous material transportation, fully applicable to the CIP / SIP system, as a return pump for cleaning tank in CIP system, the main purpose is to recycle CIP.

Technical parameter:

Specification：5T～80T

Max inlet pressure：0.5MPa

Temperature range：-10℃~120℃（EPDM）

Connection type：clamp, thread, flange

Connection standard：3A DIN BPE SMS IDF ISO

Material：304, 316L

Surface Treatment：Internal surface is Ra≤0.8μm，other parts matte or sandblasting treatment.

Impeller: Shutter impeller

Shaft Seal: the static ring of mechanical seal is composed of SUS316L steel with graphite and the dynamic ring is made of silicon carbide.

Selection: 90 °inlet and outlet , 180 °parallel inlet and outlet , 90 °universal inlet and outlet.

Motor

1、Depending on the configuration, the pump mainly adopts ''ABB'' brand high-efficiency M2BAX three-phase AC motor. The pump is designed and manufactured according to IEC60034.IE60072, conforming to CE marking requirements.
2、The explosion-proof motor is available to meet the needs in different applications.
3、With excellent electric performance, low noise and low vibration, the motor is designed to have standard protection grade of IP55 and insulation grade of grade F.
4、Frequency: 50Hz/60Hz
5、Working mode: continuous (SI)
6、Rotation speed: The standard rotation speed of the pump is 1450r/min.

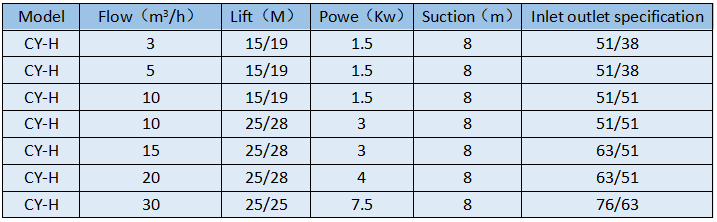

CY-H series performance and model selection table
