Application

Mainly applied to food, beer, beverage and pharmaceutical industries.

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
EPDM gasket
Stainless steel handle
Outward-open
Surface matte-finish

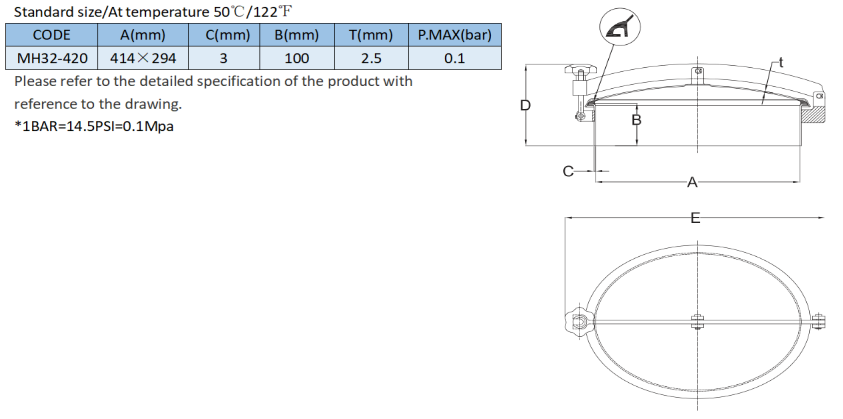

Oval spec(mm) 414×294
Full welding technology

Options
Optional wetted materials 304,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror Polish, Sandblasted, etc.
Neck thickness can be modified
Height can be modified
Gasket material optional for Silicon, FPM

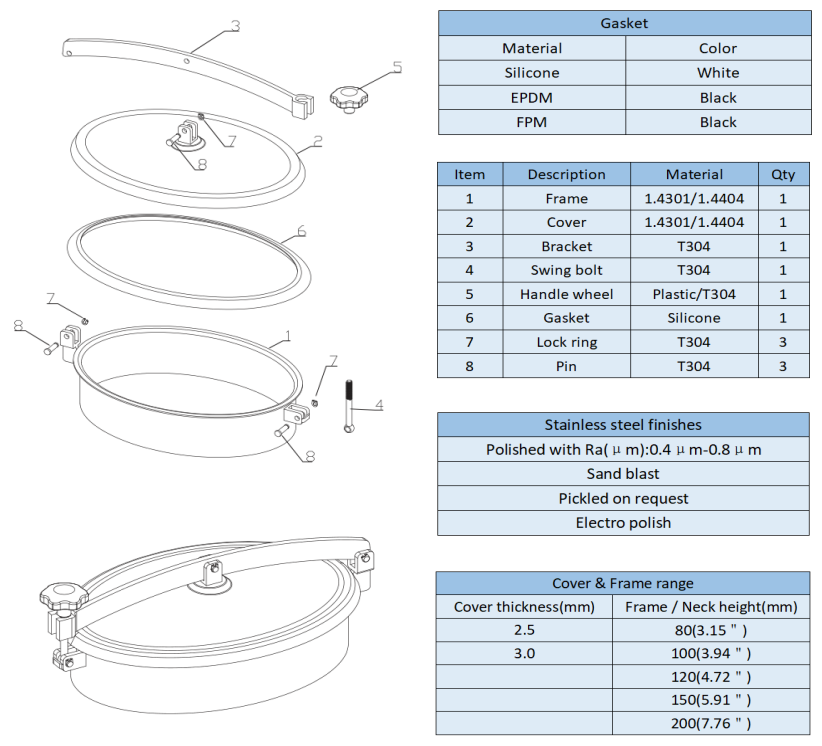

Exploded view

Note： Size can be customized according to customer’s requirements.
