Application

Mainly applied to food, beer, beverage and pharmaceutical industries.

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
EPDM gasket
Plastic wheel
With stainless steel toggle
Inward-open
Surface matte-finish

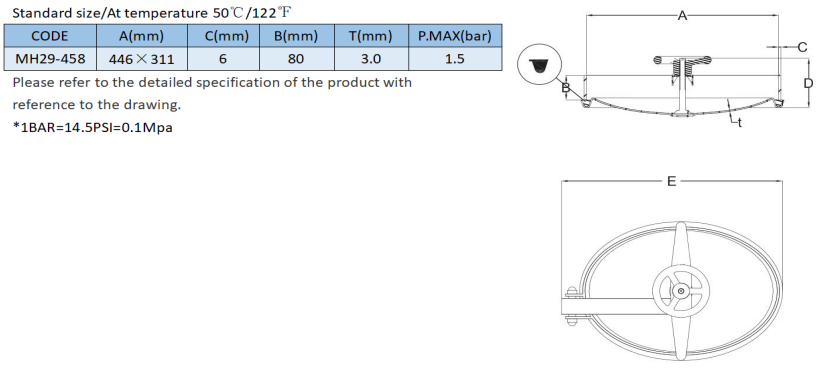

Oval spec(mm) 446×311

Full welding technology

Options
Optional wetted materials 304,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror Polish, Sandblasted, etc.
Wheel material optional for Stainless steel
Neck thickness can be modified
Height can be modified

Gasket material optional for Silicon, FPM

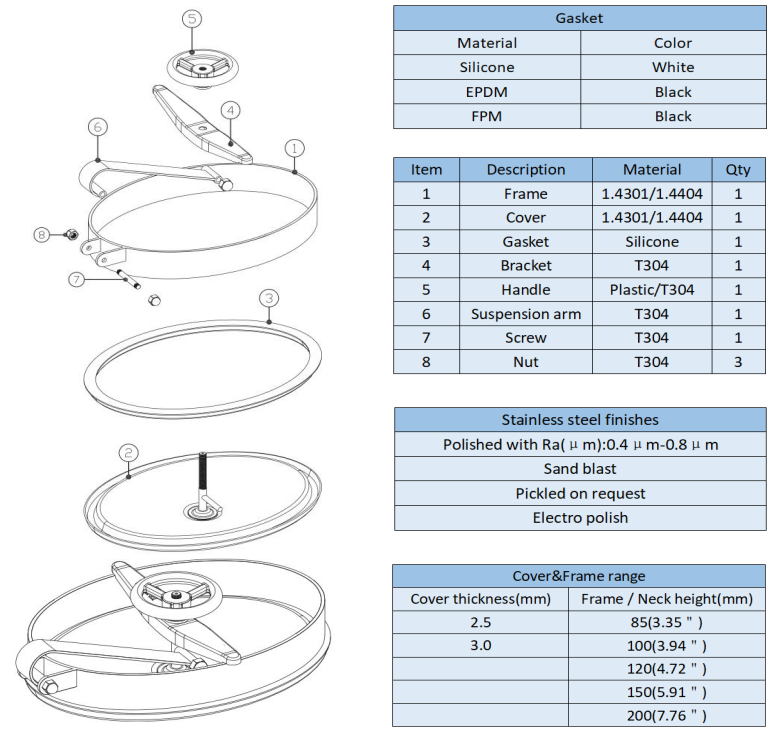

Exploded view

Note： Size can be customized according to customer’s requirements.
