Application

Mainly applied to food, beer, beverage and pharmaceutical industries.

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
Silicone-gasket

Stainless steel handle
Inward-open
Surface matte-finish

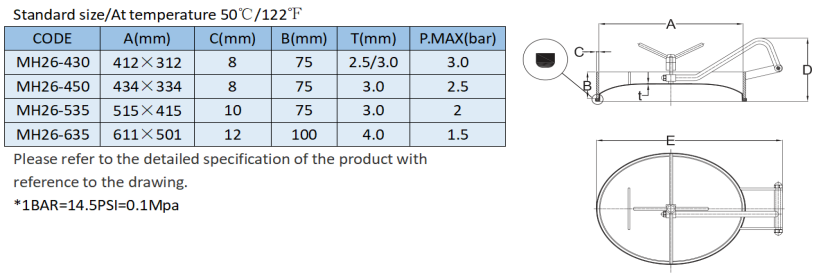

Oval spec(mm) 611×501

Full welding technology

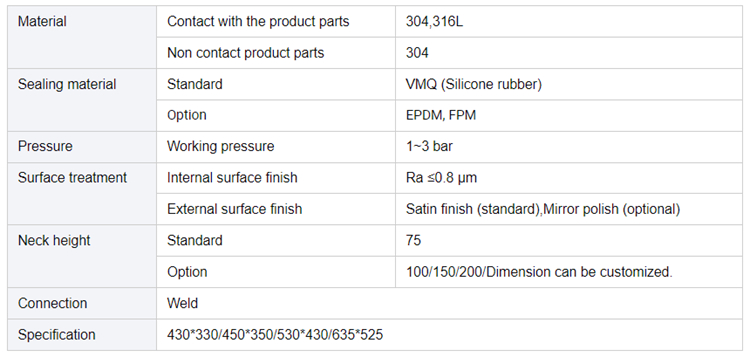

Options
Optional wetted materials 304,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror Polish, Sandblasted, etc.
Handle optional for Stainless steel
Height can be modified

Gasket material optional for EPDM, FPM

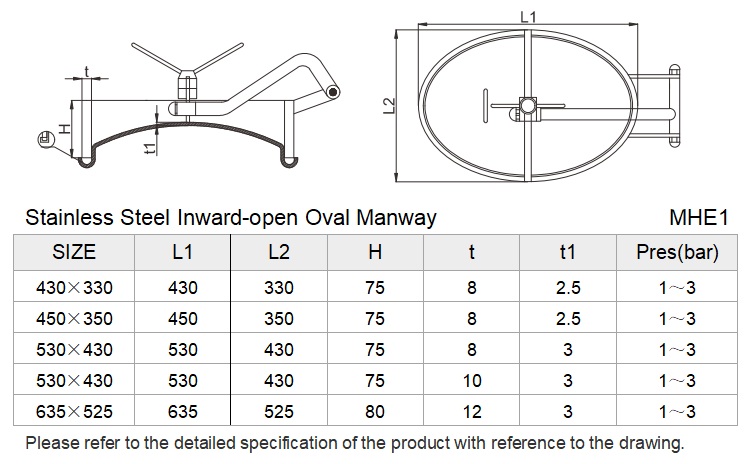

Optional Oval spec(mm)412×312, 434×334, 515×415

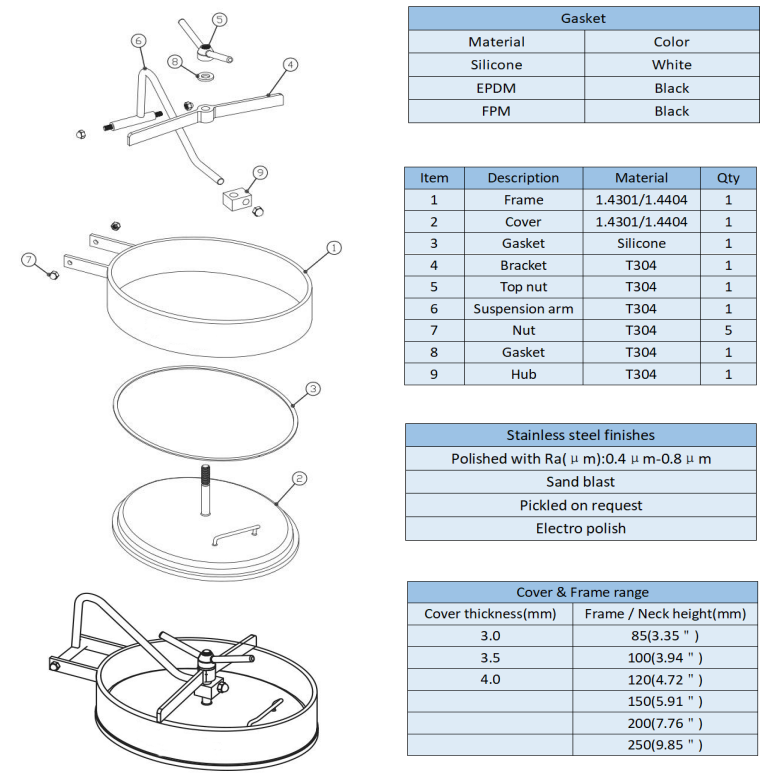

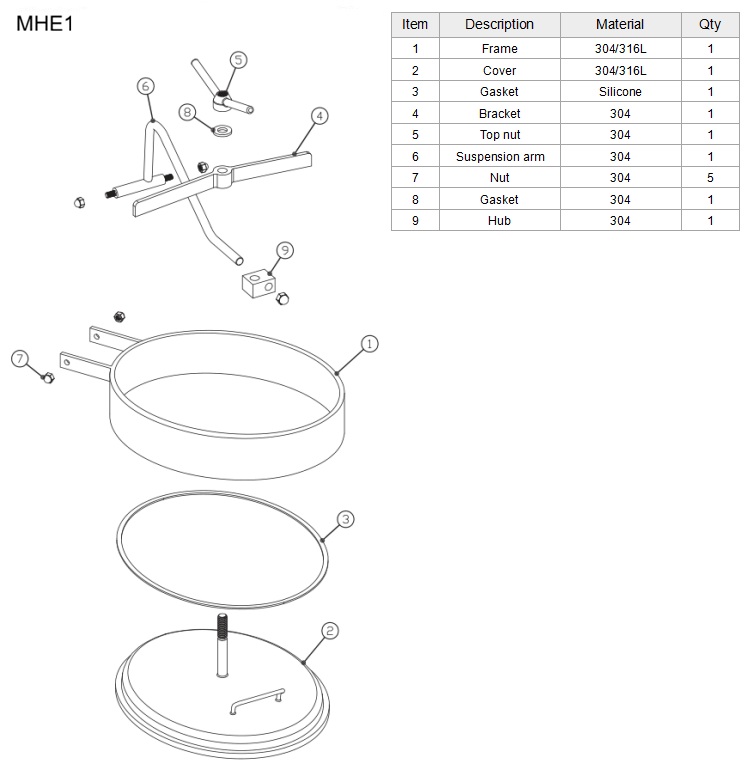

Exploded view

Note： Size can be customized according to customer’s requirements.
