Application:

Mainly applied to food, beer, beverage and pharmaceutical industries.

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
Silicone-gasket
4 Plastic handle
Tempered glass
With flange
Outward-open
Surface matte-finish
OD 600mm
Full welding technology

Options
Optional wetted materials 304,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror Polish, Sandblasted, etc.
Various handles: Stainless steel, etc.
Various gasket qualities
Neck thickness can be modified
Height can be modified

Gasket material optional for EPDM, FPM
OD optional for 200/300/400/450/500

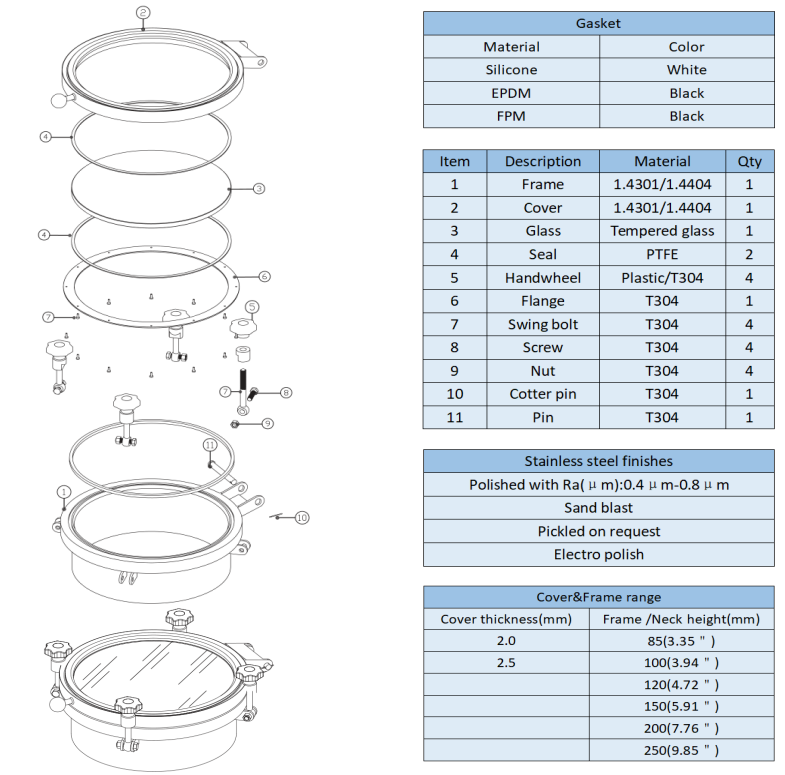

Exploded view

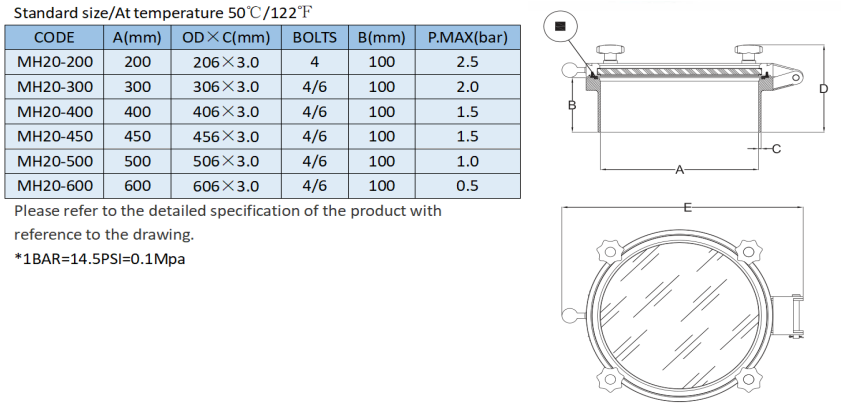

Note： Size can be customized according to customer’s requirements.
