Application

Mainly applied to food, wine, beverage and pharmaceutical industries.

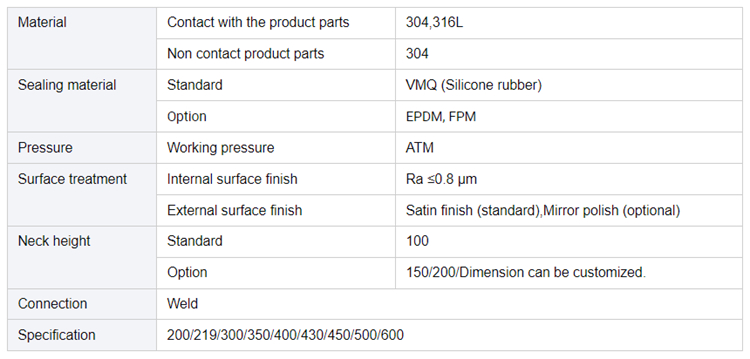

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
Silicone-gasket
Plastic handle
Outward-open
Surface matte-finish

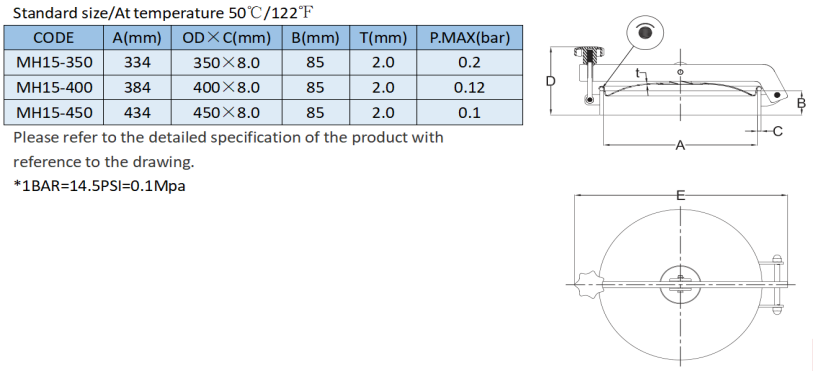

OD 450mm
Full welding technology

Options
Optional wetted materials 304,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: mirror Polish, Sandblasted, etc.
Various handles: stainless steel, etc.
Various gasket qualities
Neck thickness can be modified
Height can be modified

Gasket material optional for EPDM, FPM

OD optional for 350/400

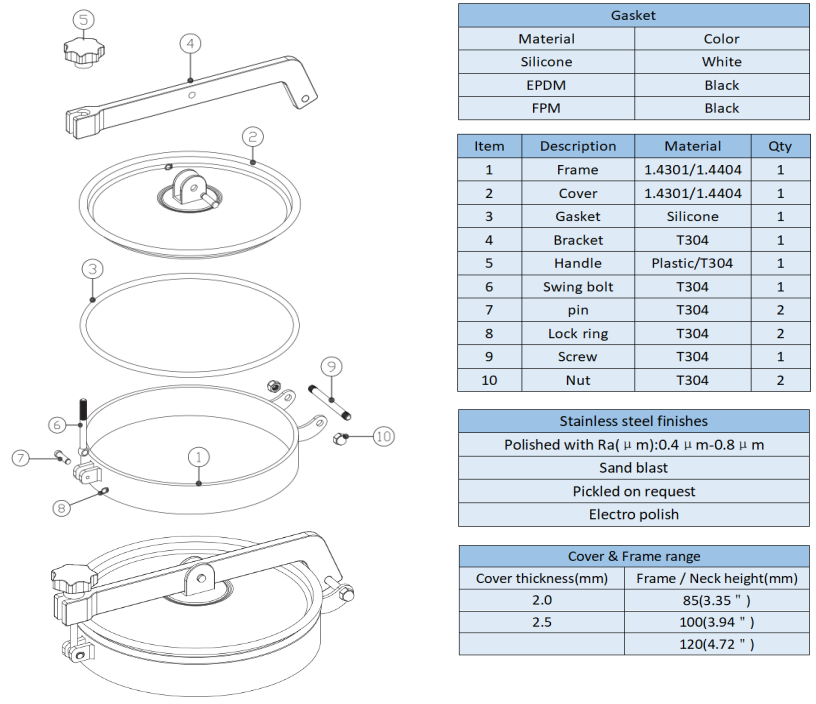

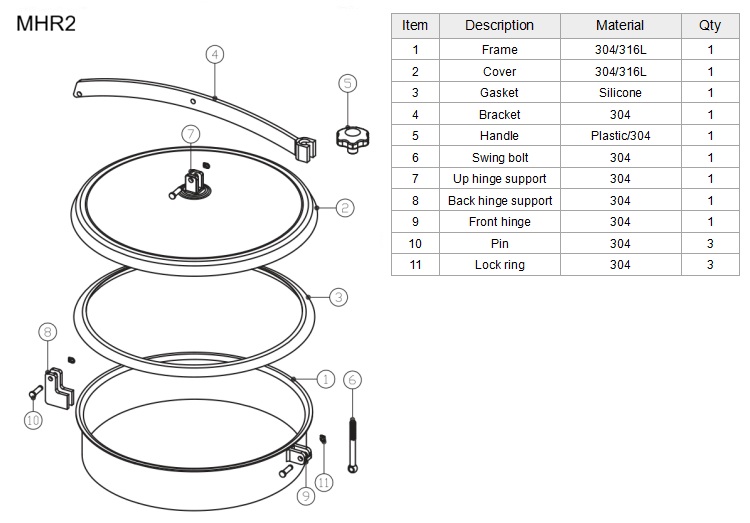

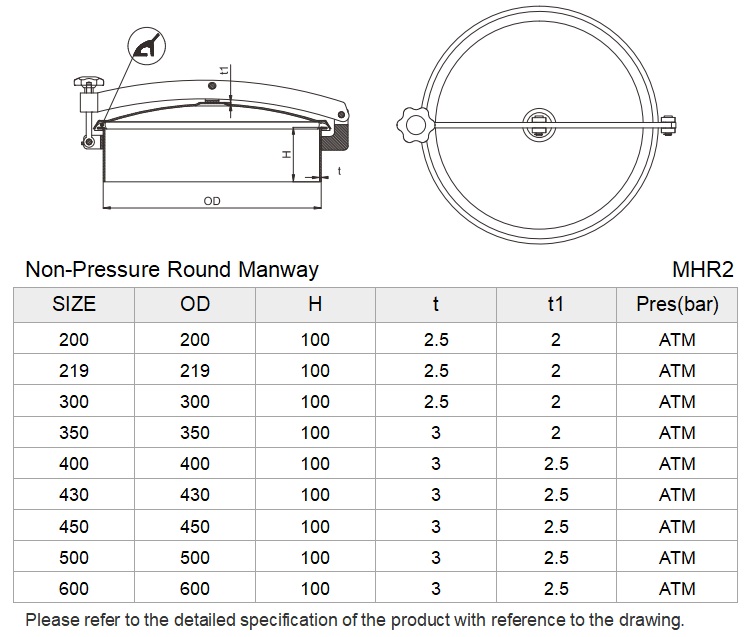

Exploded view

Note： Size can be customized according to customer’s requirements.
