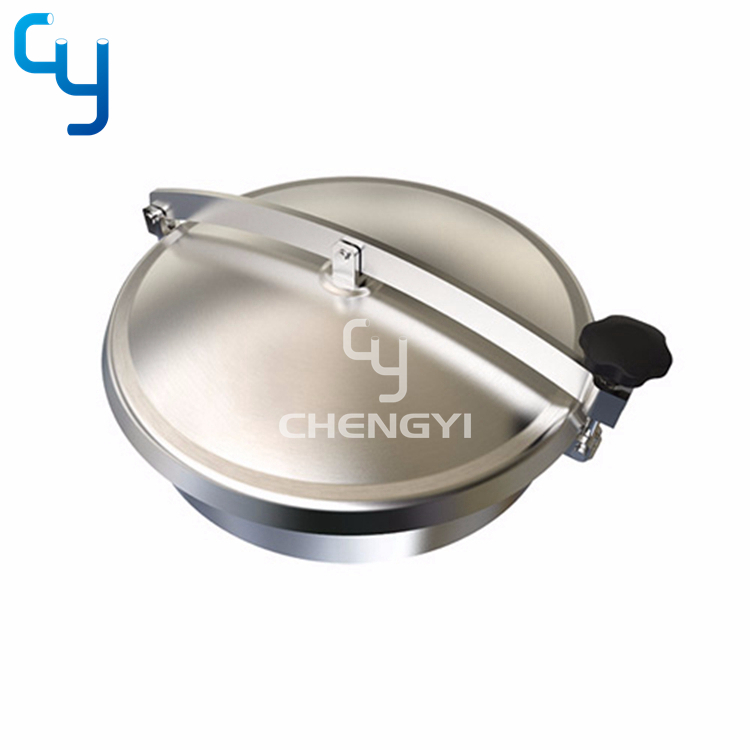

Application

Mainly applied to food, wine, beverage and pharmaceutical industries.

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
Silicone-gasket
Plastic handle
Outward-open
Surface matte-finish
OD 600mm

Full welding technology

Options
Optional wetted materials 304, 316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror polish, sand blasting, etc.
Various handles: stainless steel, etc.
Various gasket qualities
Neck thickness can be modified
Height can be modified

Gasket material optional for EPDM, FPM

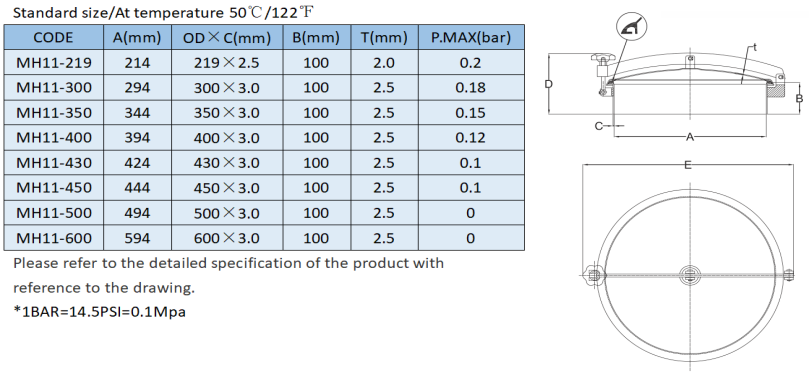

OD optional for 219/300/350/400/430/450/500

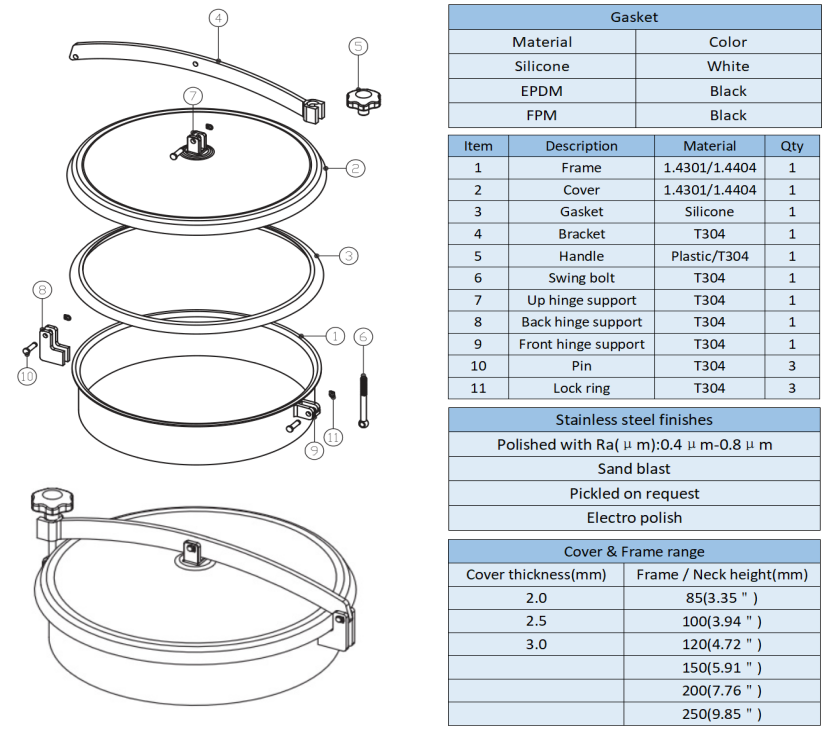

Exploded view

Note： Size can be customized according to customer’s requirements.
