Product introduction

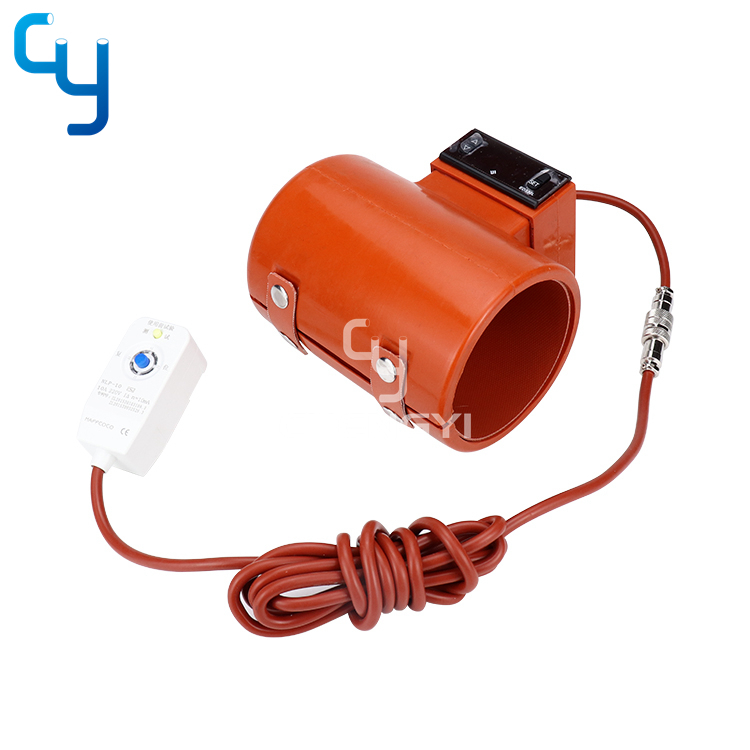

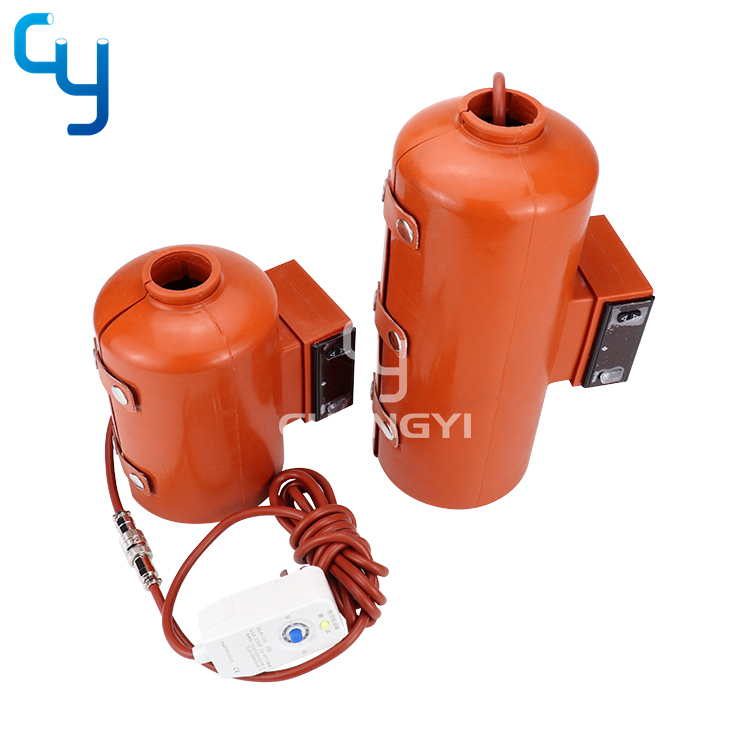

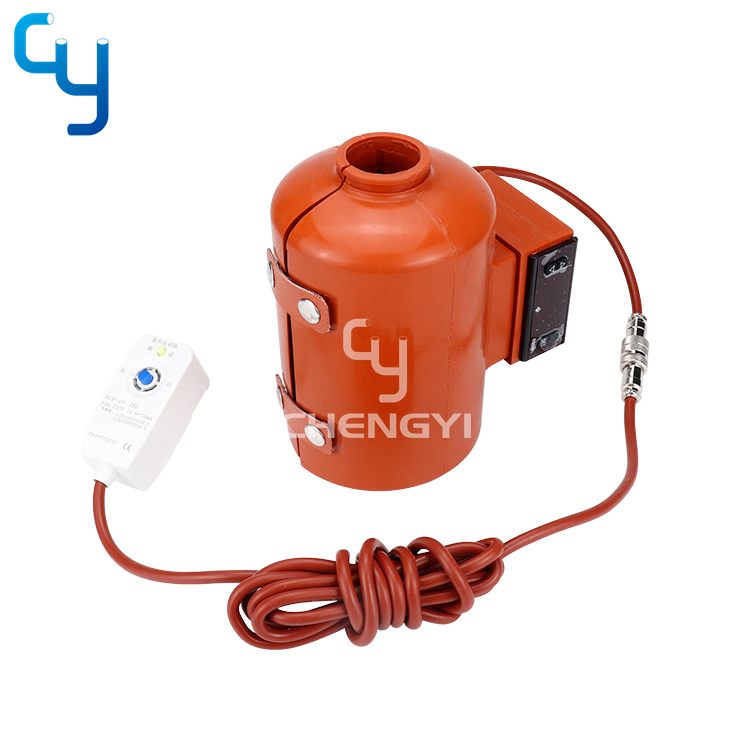

The electric heating filter is designed according to GMP requirements and consists of two parts: flexible heating insulation housing and temperature control box. The utility model is mainly used to provide heat insulation function for the filter shell to prevent the accumulation of condensate water and the breeding of microorganisms. It is widely used in biological products, pharmaceutical, fermentation and other industries for injection water systems, filtration and purification processes. It is also applied to the vent filter and liquor filters.

Main features

1. The specially designed flexible heating housing can fit the filter shell, easy to install

2. easy to upgrade the existing filter shell, without repeated investment

3. heating layer and insulation layer are one compound, remarkable energy saving and power saving

4.  the individual control box can be located according to the needs, which is not limited to the installation position of the filter

5. LED digital display temperature control system, can set the temperature by itself, which is easy and convenient to operate,

6. It has multiple safety protection measures to adapt to different environments.

7.  heater surface can be safely touched.

Application

1. Sterile filters for the vents of injection water storage tanks and mixing tanks to prevent condensation water from forming in the filter

2. Freeze-dryer exhaust filter-moisture after removal of condensate residue or integrity test after steam sterilization

3. Reduce the viscosity of high-viscosity materials-make them easy to filter.

Technical parameters

Heating housing material: composite silicone

Temp sensor: PT100

Operating voltage: 220V，50HZ

Temperature setting range: 0-150℃

Display error: less than ±0.5% ±1 word, less than ±1.0% ±1 word

Display: heating temperature-red LED, setting temperature-green LED

Protection level: IP65

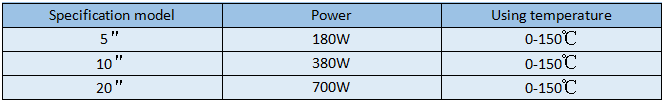

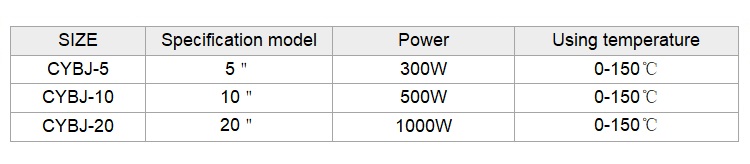

Specification
