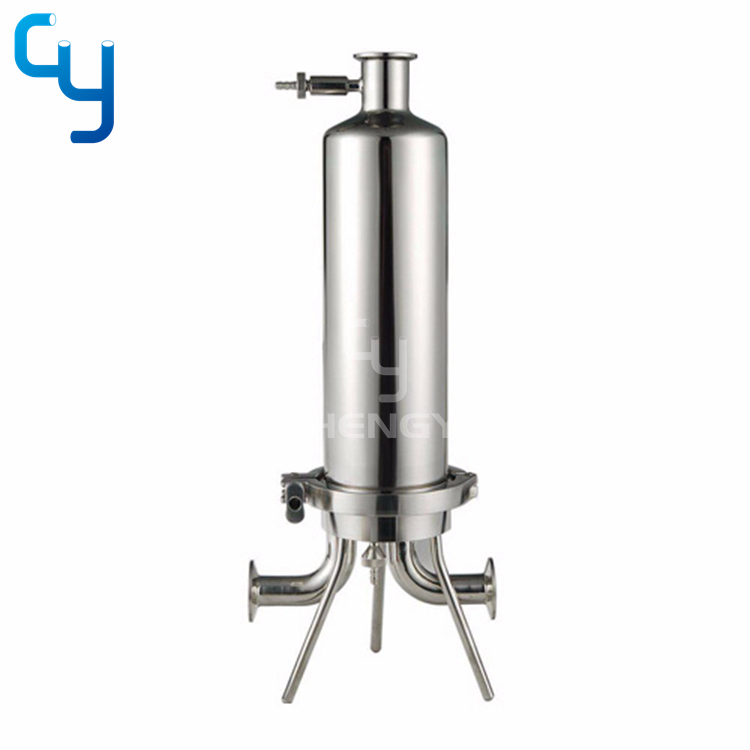

Production introduction

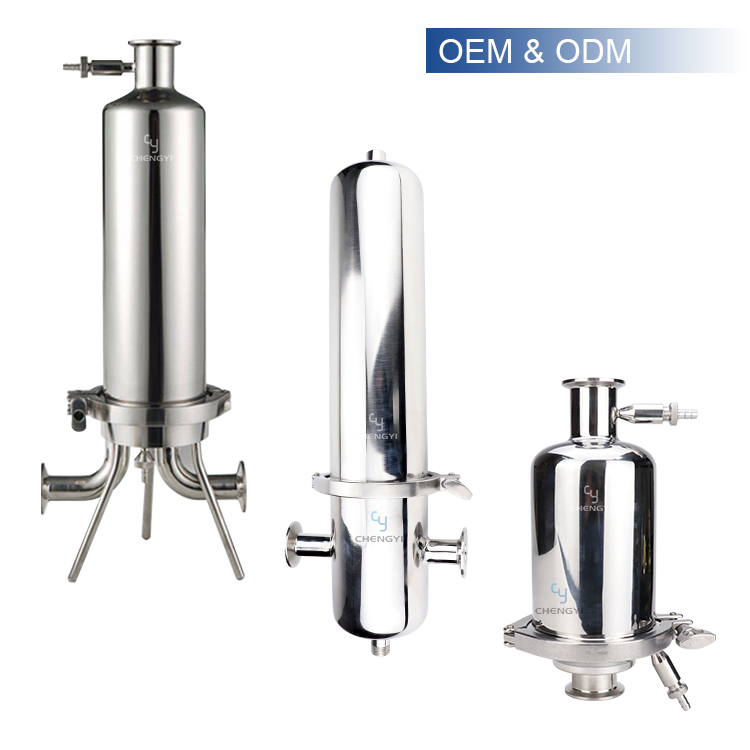

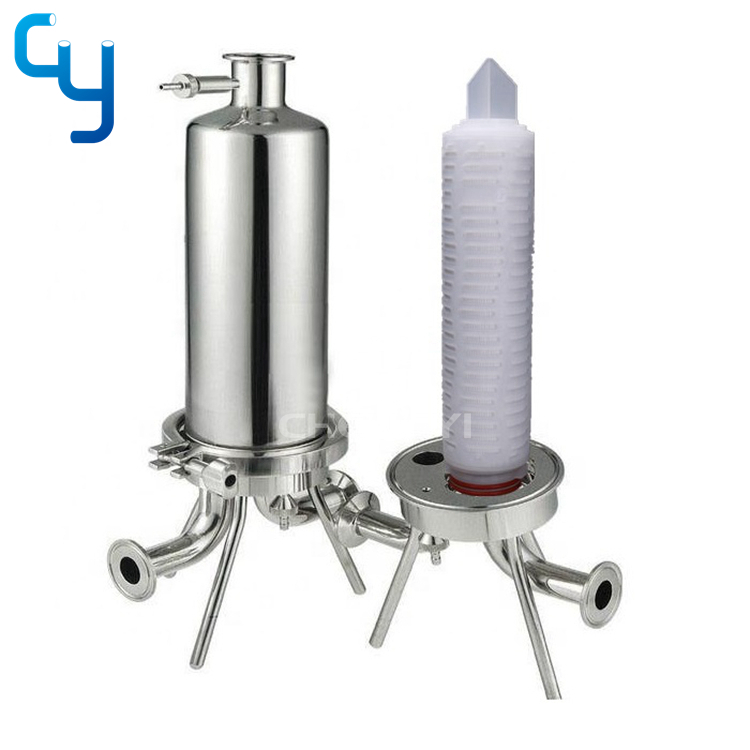

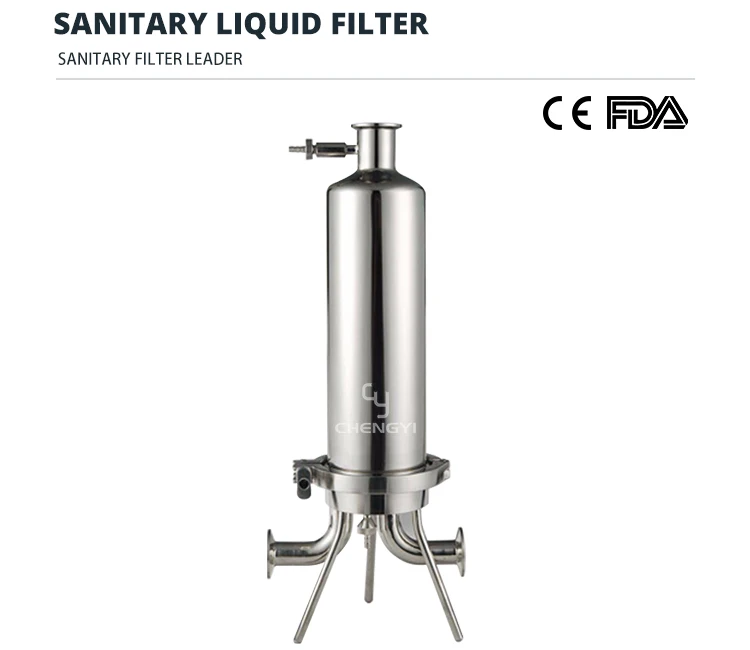

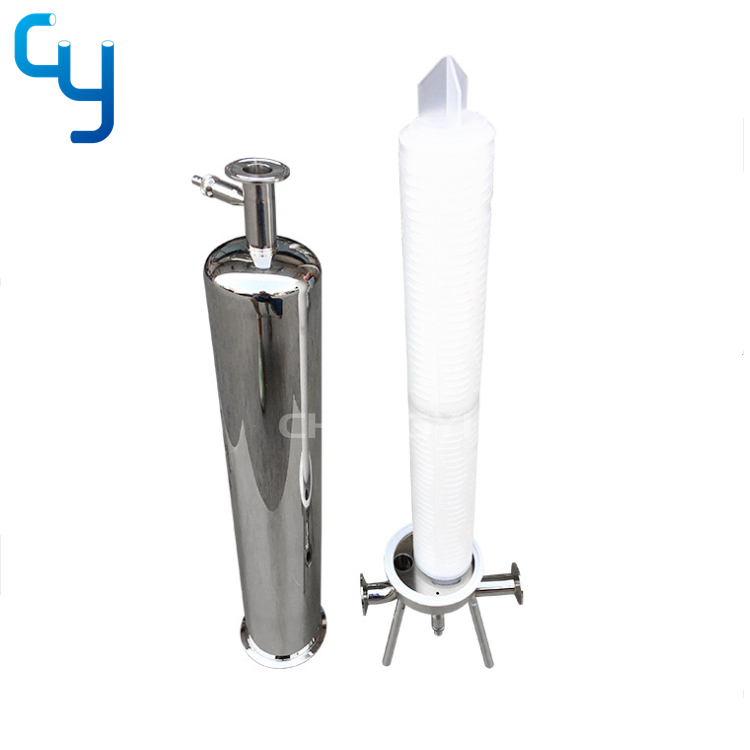

Sanitary fluid filter have excellent surface treatment and the maximal corrosion-resistant in order to prevent the bacterial contamination. The unique structure of the sanitary filter housing ensures inside and outside surface have no dead corner and conforms to the requirements of GMP, the filter housing can be completely disassembled and washed, easy to operate.

Product features

Ultra high level of polishing, internal surface is 0.3μm，external surface is 0.4μm, absolute sanitary level polishing.

Using TC clamp for connection, the highest pressure is 0.6MPa, 1.0MPa.

Low exhaust valve and drain valve: threaded sleeve and tower joint are detached, and the hose is no longer rotated as they are discharged and drained

Application

Pharmaceutical industry: all kinds of antibiotics pre filtering.

Food and beverage industry: wine, mineral water, drinking water filtration.

Oil industry: oil field water injection filtering.

Electronic industry: high pure water pre filtering.

Chemical industry: all kinds of organic solvents, acid, alkali liquor filtration.

Polishing

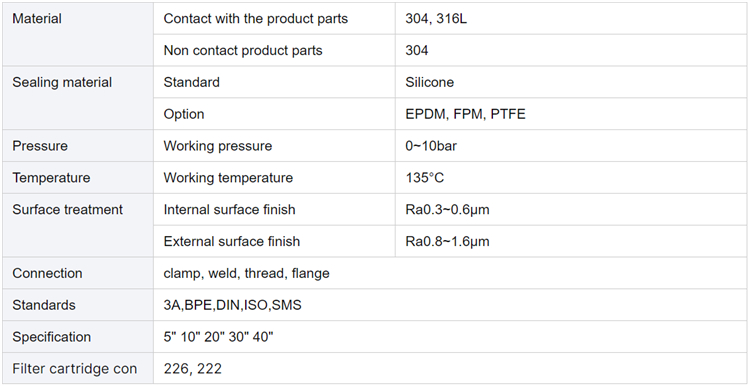

Operating conditions

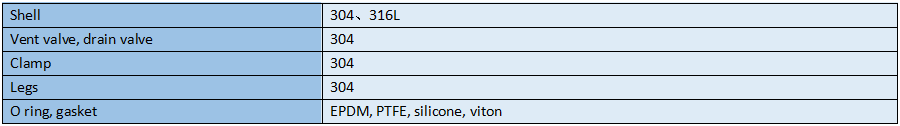

Material

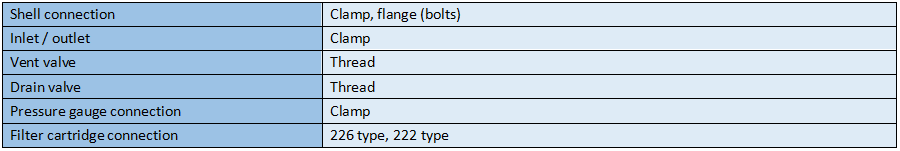

Connection

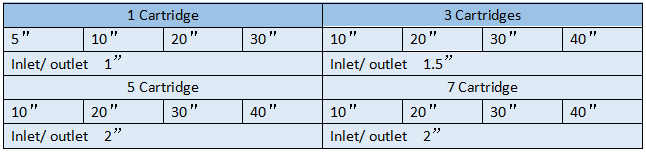

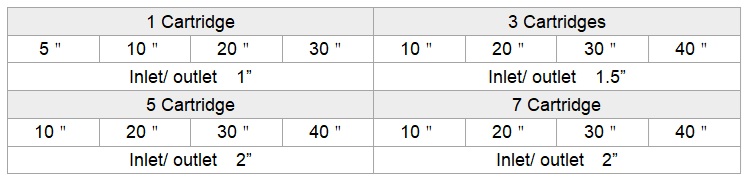

Specification
