Working principle

Pipeline high shear dispersing emulsifier is a high performance equipment used for continuous production or circulated treatment of fine materials. In the small chamber, there are 1~3 sets of paired and clutched stators and rotors. Driven by motor, the rotor revolve quickly and produces a strong axial suction force which intakes the material to the chamber. The machine disperses, shears and emulsifies the materials in shortest time, and the diameter range of the particles gets smaller so that fine and stable products are produced.

Three sets of stators and rotors are equipped in working cavity. Driving shaft in working cavity is an arm, electrical motor and the shaft in bearing cabinet can be connected by spring coupling to improve the operation quality of driving shaft. Seal form can be selected in different conditions. It is fit for middle-large scale on-line continuous production or circulated treatment production process.

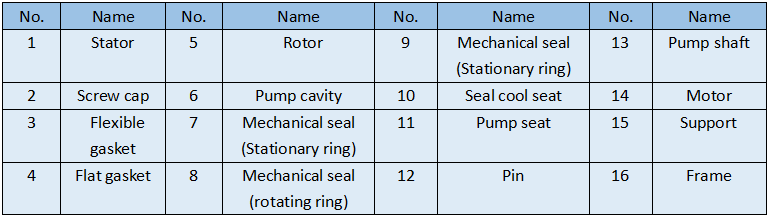

Structure

Rough teeth:                                                          Middle teeth:                                              Fine teeth:

beat, shatter, shear, dissolve, rough disperse     disperse, refine, solutize, emulsify             superfine disperse, emulsify, homogenize, pulpify

Specification

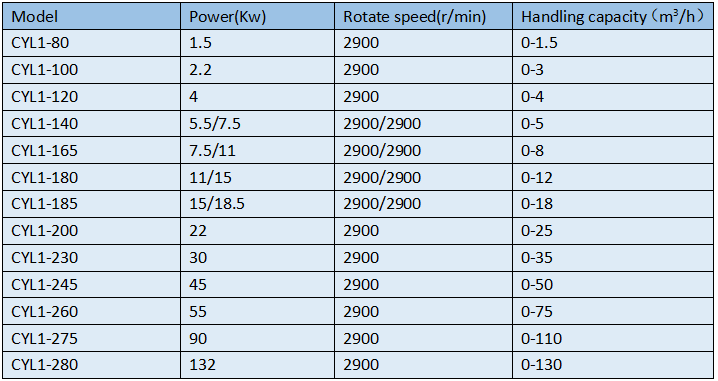

CYL1 Single group pipeline high shear dispersion emulsifying pump

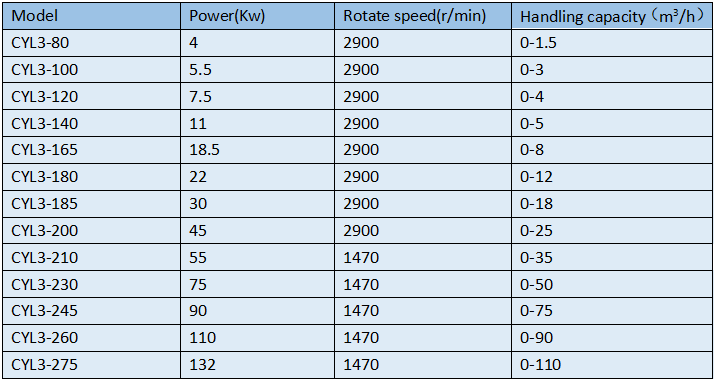

CYL3 Three groups pipeline high shear dispersion emulsifying pump

Examples of intermittent and pipeline combined dispersed emulsification:

Application

         High shear dispersing emulsifier is applied in many fields.....

          Mixing                         Dispersing                    Emulsifying                 Homogenizing

Mixing dissolving:

Soluble solid or liquid blends together with liquid in the state of the molecule or the gum
Crystallization powder, salt, sugar, ether sulphate, abrasive, hydrolysising colloid, CMC, thixotropy, rubber, natural and synthetic resin.

Dispersed suspension:

Unsoluble solid or liquid forms finer particle blended solution or suspended solution

Catalyst, flatting agent, pigment, graphite, paint coating, alumina, compound fertilizer, printing ink, packing agent, weed killer, bactericide.

Emulsification:

Unsoluble liquid together with liquid does not separate

Cream, ice cream, animal oil, vegetable oil, protein, silicon oil, light oil, mineral oil, paraffin wax, wax cream, rosin.

Homogeneity:

Make emulsification and suspended grain size finer with more even distribution

Cream, flavouring, fruit juice, jam, condiment, cheese, fat milk, toothpaste, typing ink, enamel paint

Thick liquid:

Cell’s tissue, organic tissue, the animal and plant tissues

Chemical reaction:

Nanometer material, inflating with higher speed, synthesization with higher speed

Extraction:

The vortex extraction

Depolymerization:

Nanometer powder, dough powder
