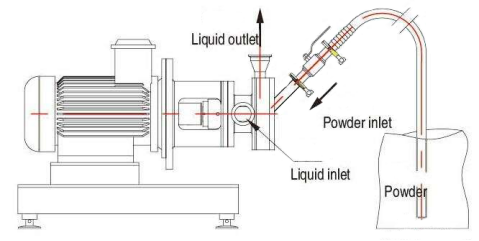

Operation principle

CYL-C system makes use of the high-speed rotation of a special rotor to produce a vacuum, inhale the powder evenly into the working chamber, and distribute it uniformly in a fast-flowing liquid flow, in which the powder is instantly completely wetted and no agglomeration is produced. Then the liquid and powder pass through a high shear stator rotor structure to disperse any possible aggregates and finally a completely wetted and uniformly dispersed material is obtained.

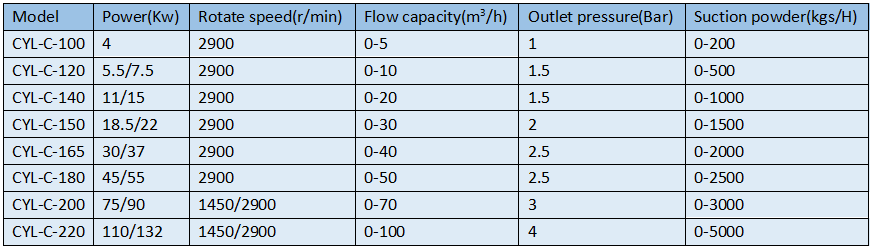

Speicification

Notes: Flow listed on the table refers to the datas measured when the medium is water. The flow will be varied with transformation of medium's viscosity and density, electrical power also will be different. This pump has short delivery head,it should be installed below the medium's level. High viscosity and solid content make the pump can not feed and deliver normally, a feeding pump or pressure pump with matched flow should be adopted. If the data in the table is modified, no further notification will be given, and the right parameters as per the provided sample.

Application

Fine chemicals: (pigments, glue, sealants, resin emulsification, bactericides, coagulants)

Petrochemical: (lubricating oil, diesel oil emulsification, asphalt modification, catalyst, paraffin emulsion)

Biomedicine: (injection, antibiotics, ointment, biological preparation, microencapsulated emulsified sugar coating)

Coating ink: (printing ink, latex paint, building coating, auto paint, paint auxiliaries)

Agricultural drugs: (bactericides, seed coating agents, herbicides, pesticide emulsifiers, fertilizers, biological pesticides)

Nanomaterials: (dispersion and depolymerization of nanomaterials, reactive extraction of nanocrystalline products)

Food Industry: (juice, jam, jelly, ice cream, dairy products, additives, tea drinks)

Daily chemical products: (detergent, shampoo, facial cream, lipstick, facial cleanser, daily flavor)

Paper making: (pulp, adhesive, rosin emulsification, paper making additives, resin emulsification)
