Operation principle

CYH high shear dispersing emulsifier effectively, quickly and evenly disperse a phase or phases to another consecutive phase, usually, these phases are dissolvable to each other. The rotor revolves quickly and strong force is produced through high tangent speed and high frequency mechanical effect, therefore, the material in the narrow slot among stator and rotor receives strong forces from mechanical and liquid shearing, centrifugal force, pressing, liquid fraction, clashing, tearing and rush water. The dissolvable solid, liquid and gas material is then instantly dispersed and emulsified evenly and finely with better production procedures and appropriate addictives and finally products with stable high quality are made.

                                                                       Working process diaphragm

Structural features

The rotor revolves in high speed produces centrifugal force,which suctions the material from upper and lower feeding area axially to the operation chamber.

The strong centrifugal force throws the material axially to the narrow slot between stator and rotor. The material then receives centrifugal press, clash and other forces, which firstly disperse and emulsify the material.

The outer terminal of the rotor revolved in high speed produces a line speed more than 15m/s and even up to 40m/s,which produces strong mechanical and liquid shearing, liquid abrasion, clashing and tearing which fully disperse, emulsify, homogenize and break the material and jet from the stator slot.

As materials jet in radial in high speed, they change their flow direction with resistance from themselves and vessel walls.The upper and lower axial suction force then leads to strong upper and lower rushing flows. After many circulations,the material is finally dispersed and emulsified evenly.

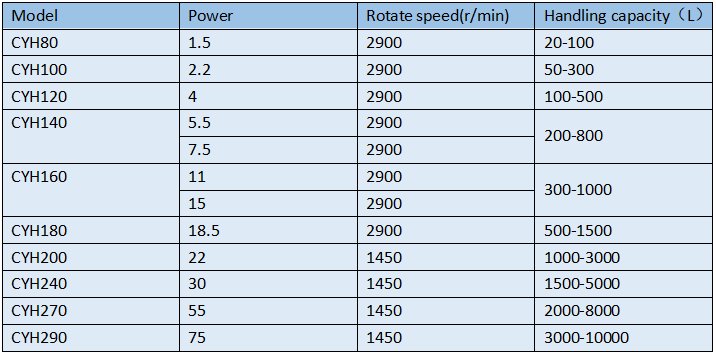

Specifications

The flow in the table refers to the data tested taking water as the medium. If the medium has high viscosity or consistency, please use pipeline high shear dispersing emulsifier. If there is high temperature, high pressure, flammable, explosive or corrosive condition. The data in the table is subject to change without notice. See the actual products for the right data.

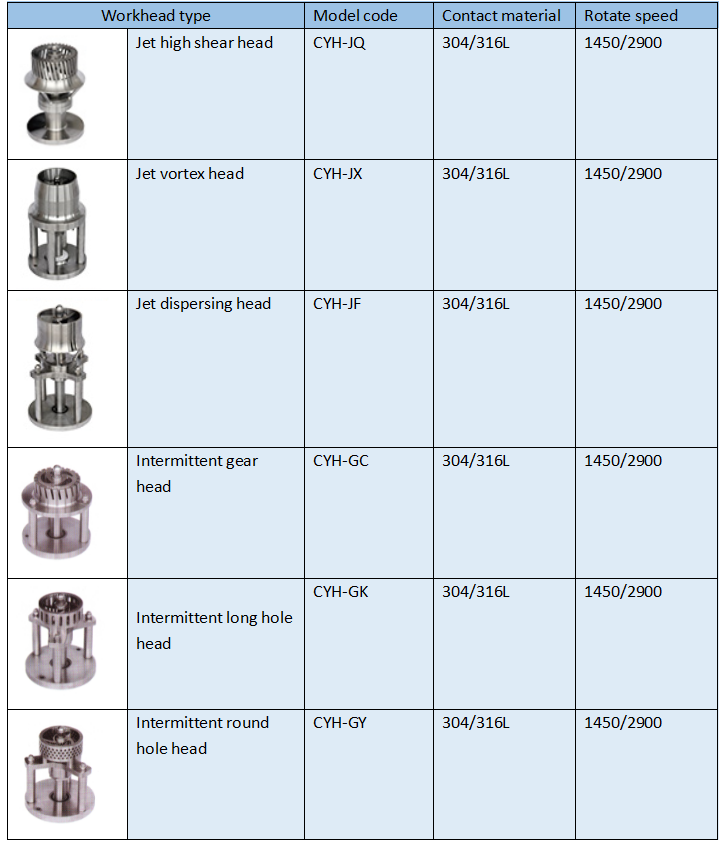

Note: Adding the model code for the working header type after the regular model name to make the difference.

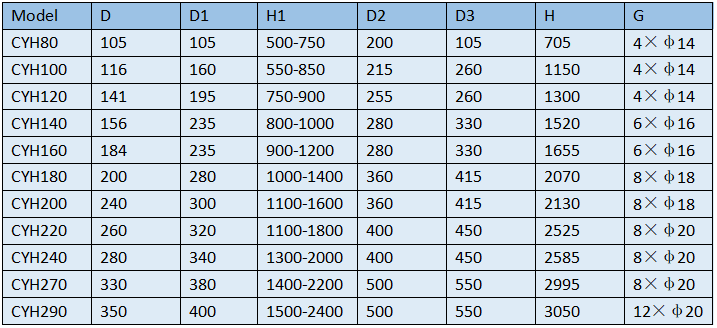

Shape size

Application

Mixing dissolving:

Soluble solid or liquid blends together with liquid in the state of the molecule or the gum
Crystallization powder, salt, sugar, ether sulphate, abrasive, hydrolysising colloid, CMC, thixotropy, rubber, natural and synthetic resin.

Dispersed suspension:

Unsoluble solid or liquid forms finer particle blended solution or suspended solution

Catalyst, flatting agent, pigment, graphite, paint coating, alumina, compound fertilizer, printing ink, packing agent, weed killer, bactericide.

Emulsification:

Unsoluble liquid together with liquid does not separate

Cream, ice cream, animal oil, vegetable oil, protein, silicon oil, light oil, mineral oil, paraffin wax, wax cream, rosin.

Homogeneity:

Make emulsification and suspended grain size finer with more even distribution

Cream, flavouring, fruit juice, jam, condiment, cheese, fat milk, toothpaste, typing ink, enamel paint

Thick liquid:

Cell’s tissue, organic tissue, the animal and plant tissues

Chemical reaction:

Nanometer material, inflating with higher speed, synthesization with higher speed

Extraction:

The vortex extraction

Depolymerization:

Nanometer powder, dough powder
