Application

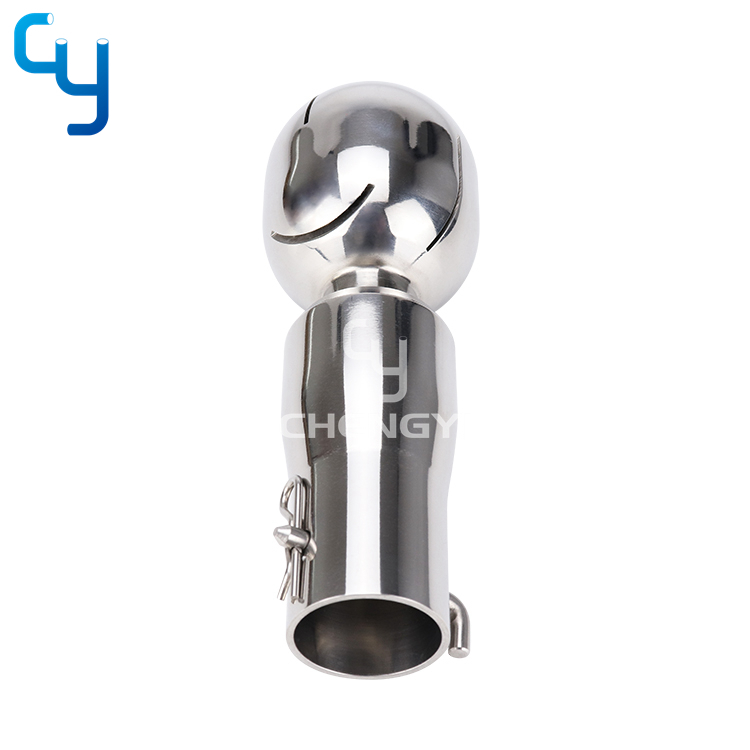

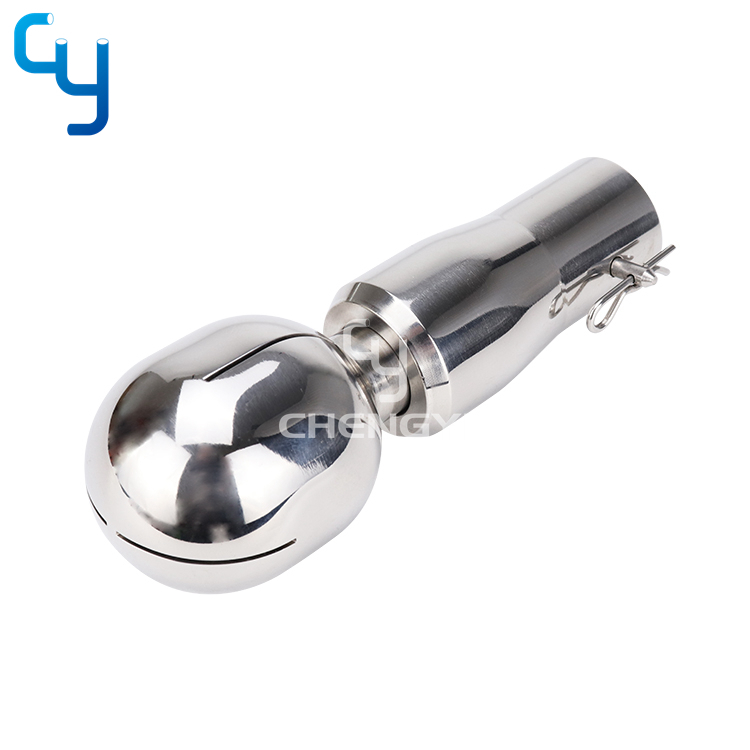

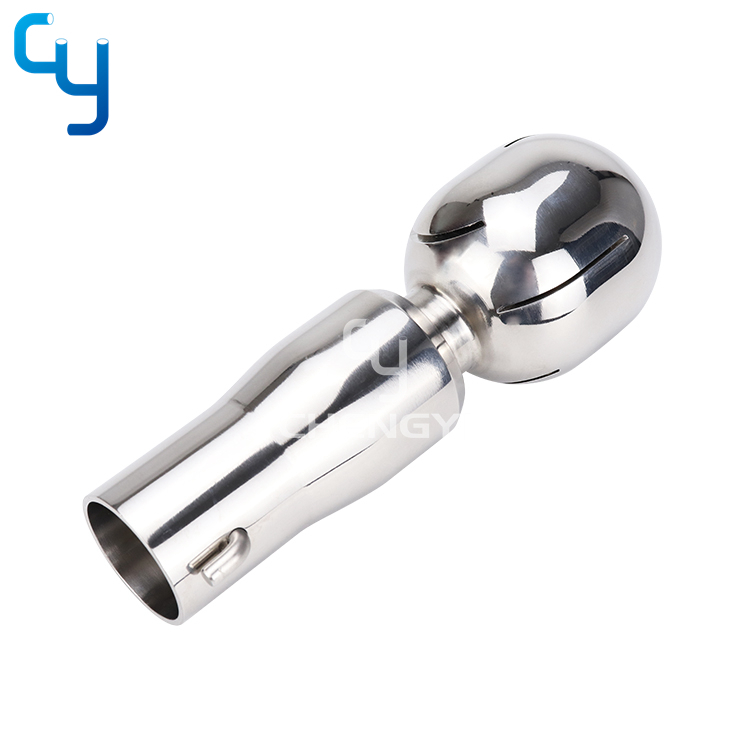

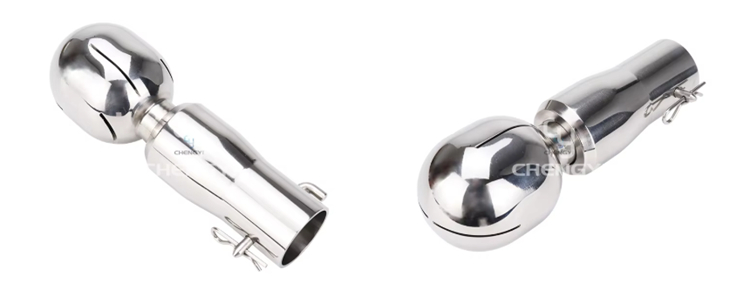

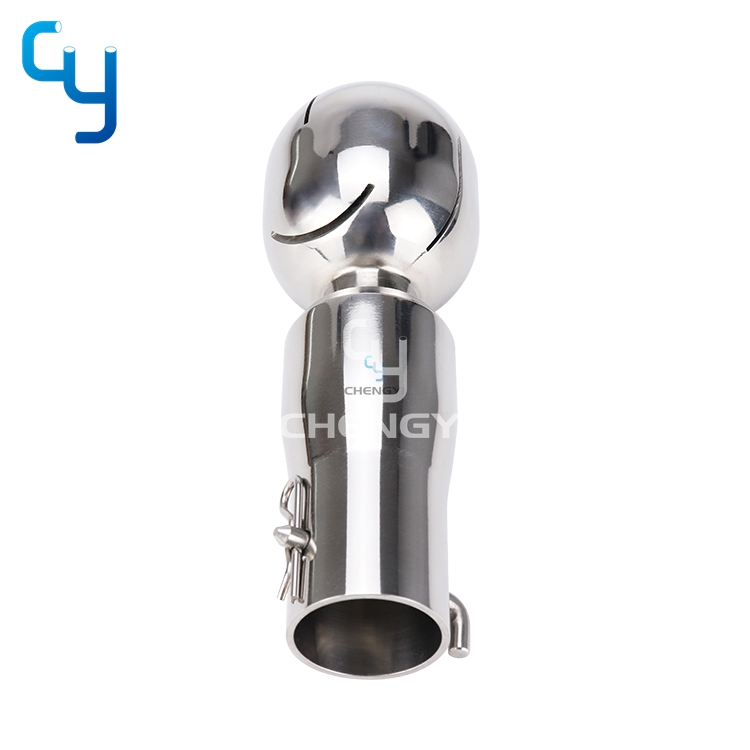

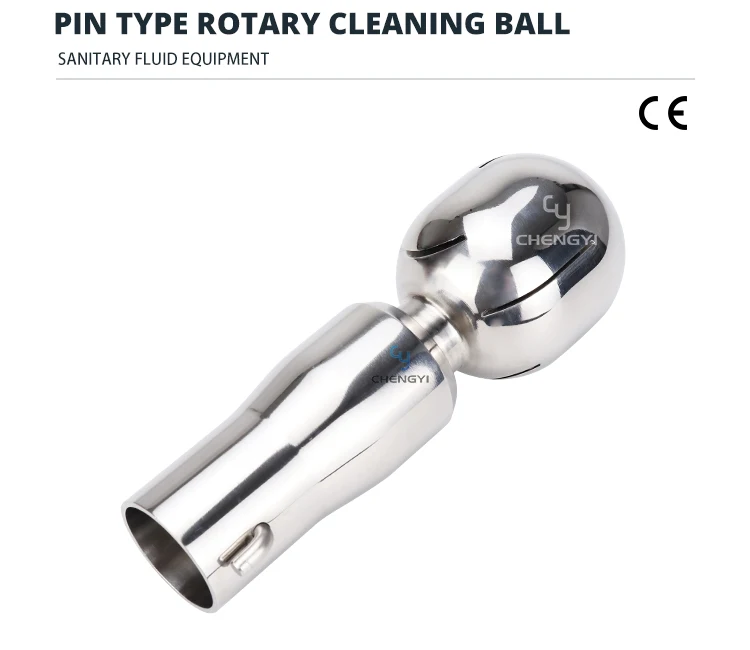

Rotary cleaning ball: it’s a kind of rotary sprayer, which use cleanser to spray strongly and clean inside of the tank. It is one which is effectively replace the traditional fixed cleaning ball for it can be used under low pressure with less detergent. The rotary sprayer is suitable for the sanitary and industrial application, include tank, reactor, vessels, etc.

Work principle

Rotary cleaning ball: the cleaning solution make the sprayer rotary by it’s motive power, then the fun jet created the whole tank and reactor with vortex. In that way, clean the remains of vessel surface effectively, reach the function of cleaning.

Design standard

Material:316L

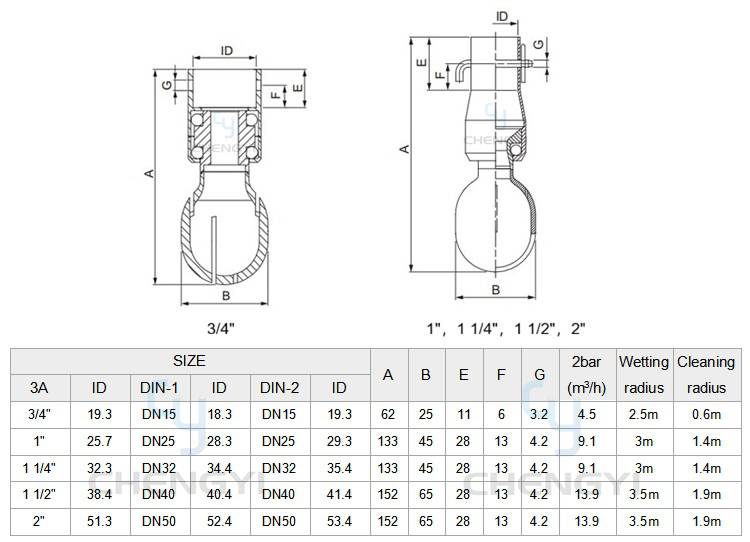

Specification:DN10~DN65

CYSH-25 25mm diameter(DN25)

CYSH-45 45mm diameter(DN45)

CYSH-65 65mm diameter(DN65)
Cleaning radius / wetting radius

CYSH25 max.r=0.6M/2.5M

CYSH45 max.r=1.4M/3M

CYSH65 max.r=2M/3M

Working pressure:1-3bar

Jet form:180°/360°
Connection: thread, weld, bolt, clamp
