Application
This type of butterfly valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage, pharmaceutical and chemical industry area.
Work principle

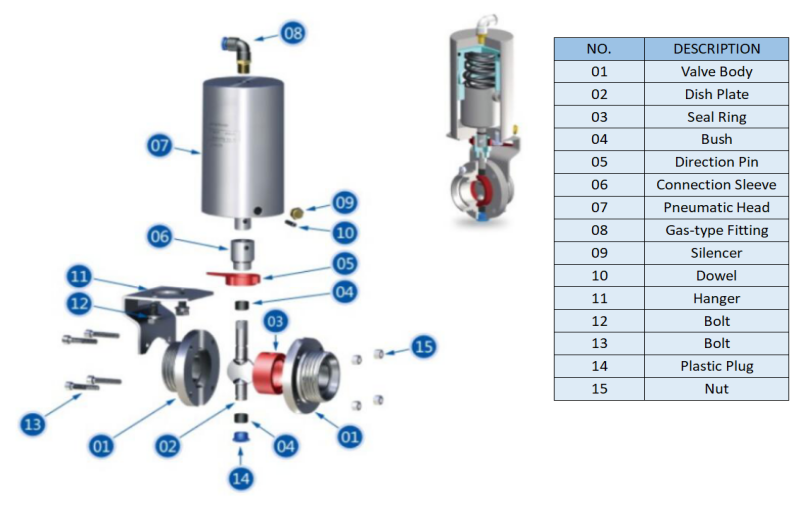

Pneumatic butterfly valve is operated remotely by actuator.
Actuator is to cover the axial movement of piston to be 90℃ rotation of valve shaft. So that the valve can be open or close to achieve the requirement of control and open/close for the pipeline system. They have three type of actuator: normally open (NO), normally closed (NC), air/air (A/A).
Technical Data
Material | Contact with the product parts | 304/316L(1.4301/1.4404) |
Non contact product parts | 304(1.4301) | |
Sealing material | Standard | VMQ (silicon rubber) |
Option | EPDM,FPM (Fluorine rubber) | |
Pressure | Working pressure | 0～10bar |
Control air pressure | 5～8bar | |
Temperature | Working temperature | VMQ:(-50～+180℃) EPDM:(-20～+135℃) FPM:(-30～+230℃) |
Sterilization temperature | 150℃≤30min | |
Surface treatment | Internal surface finish | Ra0.4～0.8μm |
External surface finish | Ra0.8～1.6μm | |
Connection | Connection:clamp, weld, thread, flange, etc | |
Connection | 3A, DIN, SMS, IDF, RJT, ISO | |
Standards | 1"-4", DN25-DN100 | |
Optional driven | Brainpower | |
Pneumatic control | Pneumatic head and fixed bracket | |

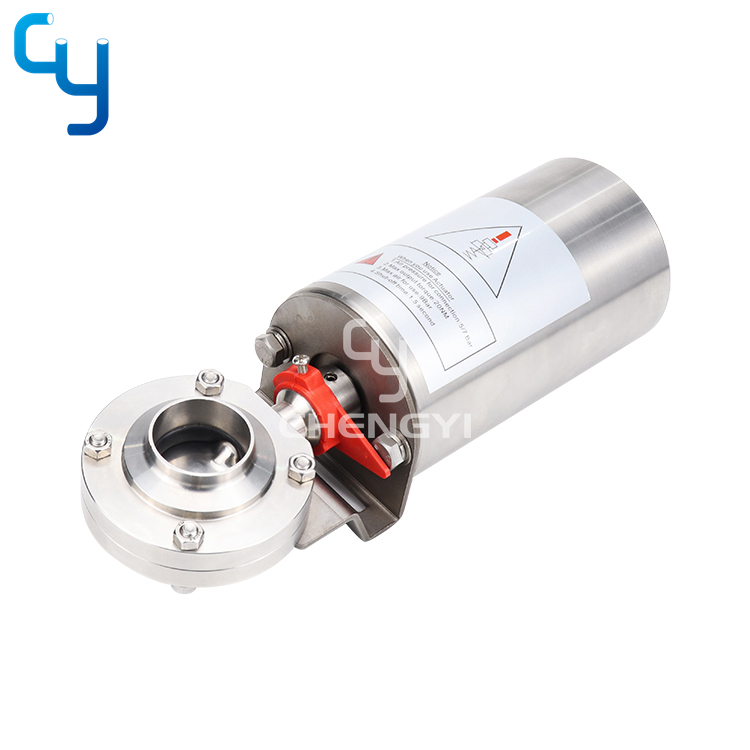

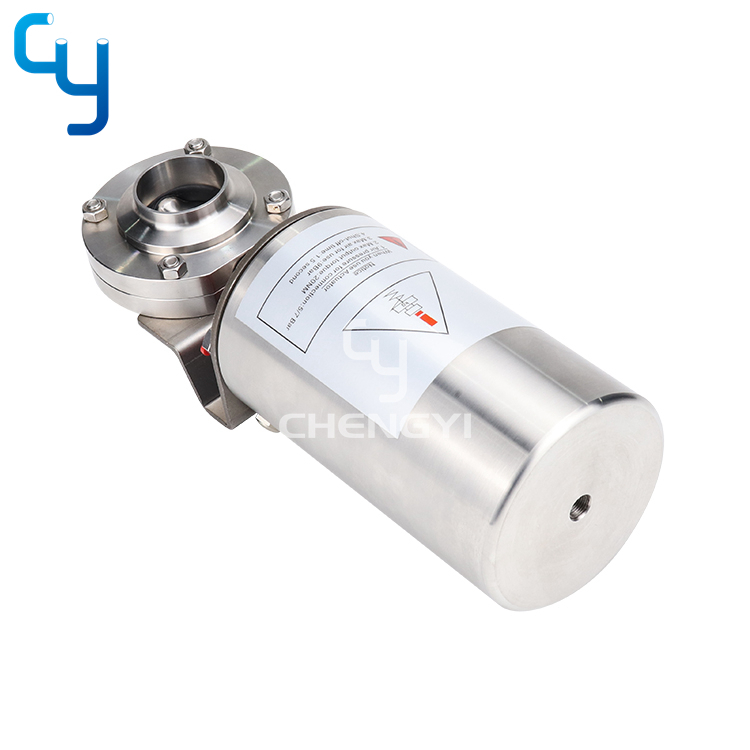

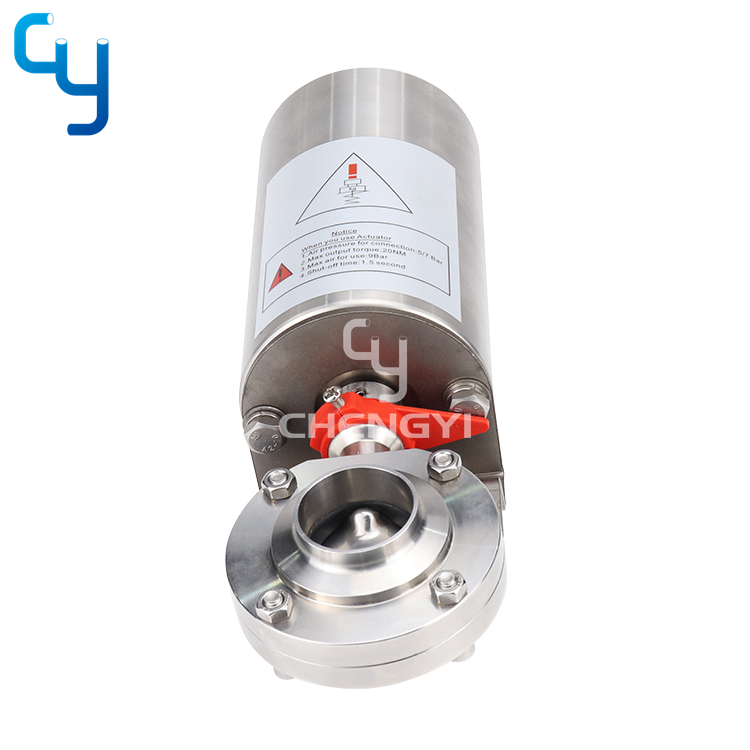

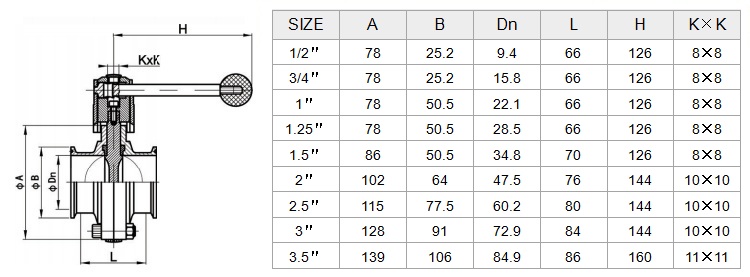

Quick-install/welded pneumatic butterfly valve
Quick-install/welded pneumatic butterfly valve
Threaded pneumatic butterfly valve
Threaded pneumatic butterfly valve
Connection type
Welded Clamp Threaded
Welded-threaded Union-threaded Three-piece
