Application

This type of ball valve series is a kind of sanitary valve which used to control the material transfer. It is widely used in food, beverage processing, pharmaceutical and chemical industry area.

Work principle

With the 90°rotary handle, drive the precise manufacturing ball body which with through cavity, turn on or off, so that can control the medium flow.

Design features

Easily disassemble without special tools

Small operating torque

Valve can be replaced in any connections, and the length will not change.

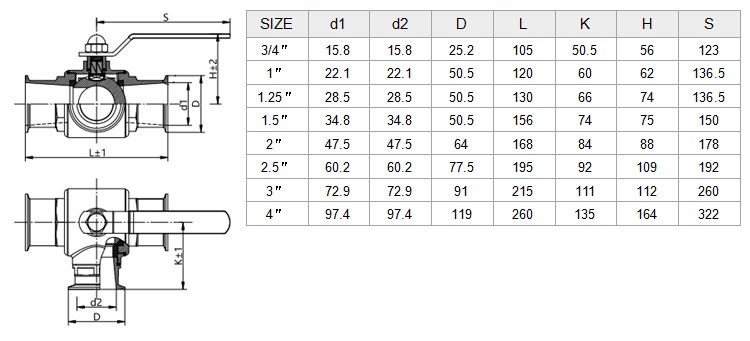

Specification

Specification：3/4"-4", DN20-DN100

Working pressure：10bar
Working temperature：-10℃～+150℃
Connection：clamp, weld, thread

Connection standard: ISO, DIN, IDF, SMS, 3A, etc

Diaphragm material: PTFE

Material：304, 316L

Operation mode：Manual

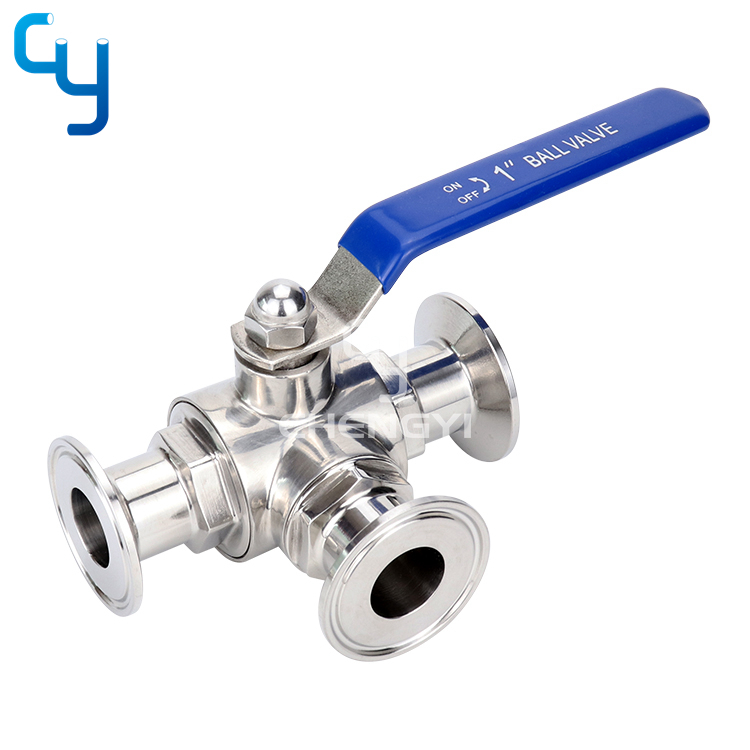

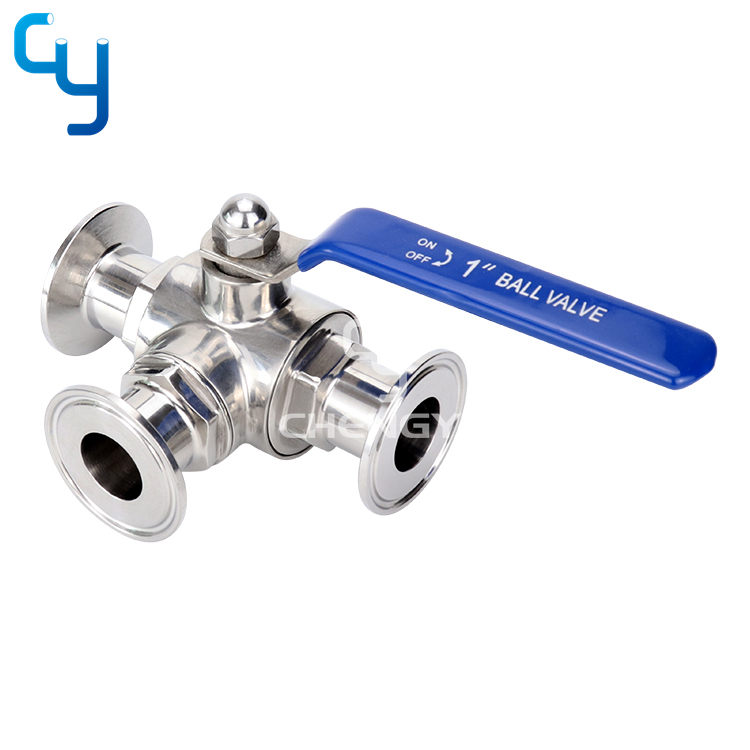

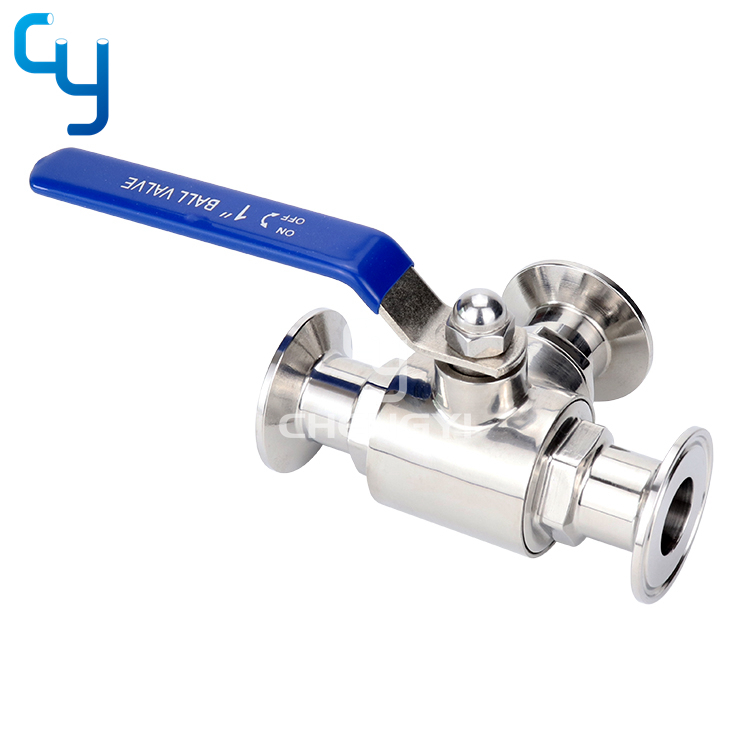

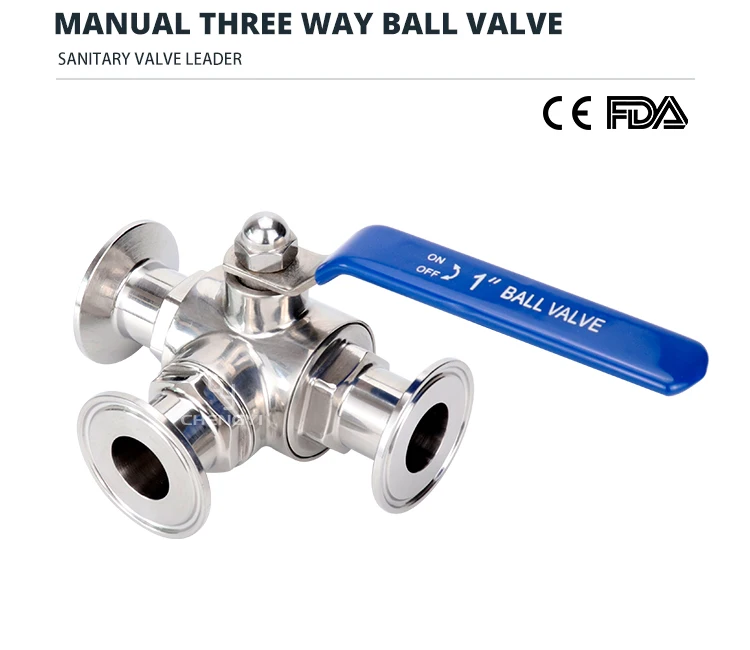

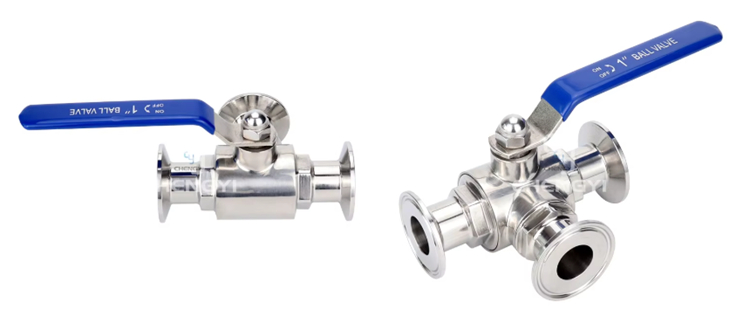

 Clamped/welded three-way manual ball valve

  Clamped/welded thee-way pneumatic ball valve
