Application
The sanitary tank bottom valve is a kind of highly clean diaphragm valve which is installed at the bottom of the tank and is used in the fields of biopharmaceutical or food processing industries. Mainly used to empty the the material inside of the tank and keep no residue.
Technical Data
Material | Contact with the product parts | 316L1.4404) |
Non contact product parts | 304(1.4301) | |
Sealing material | Standard | PTFE |
Pressure | Working pressure | 0~10bar |
Temperature | Working temperature | PTFE-20~+130℃ |
Sterilization temperature | 150℃≤30min | |
Surface treatment | Internal surface finish | Ra0.4~0.6μm |
External surface finish | Ra0.8~1.6μm | |
Connection | Connection standard:3A, DIN, BPE, SMS, IDF, ISO | |
Connection: clamp, weld | ||
Optional driven | Pneumatic control | |
Option | Steam inlet, disinfection valve | |
Specification | 3/4"-2", DN20-DN50 |

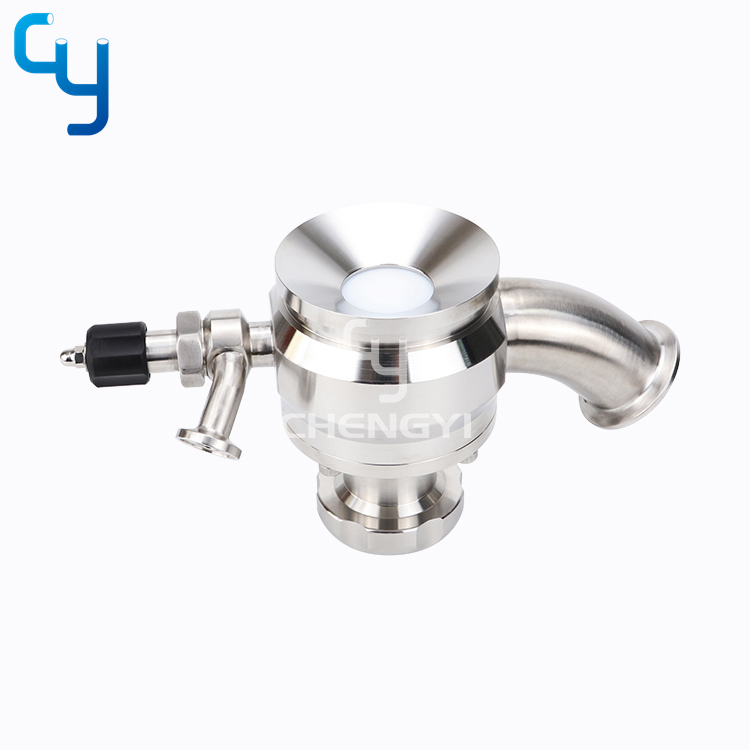

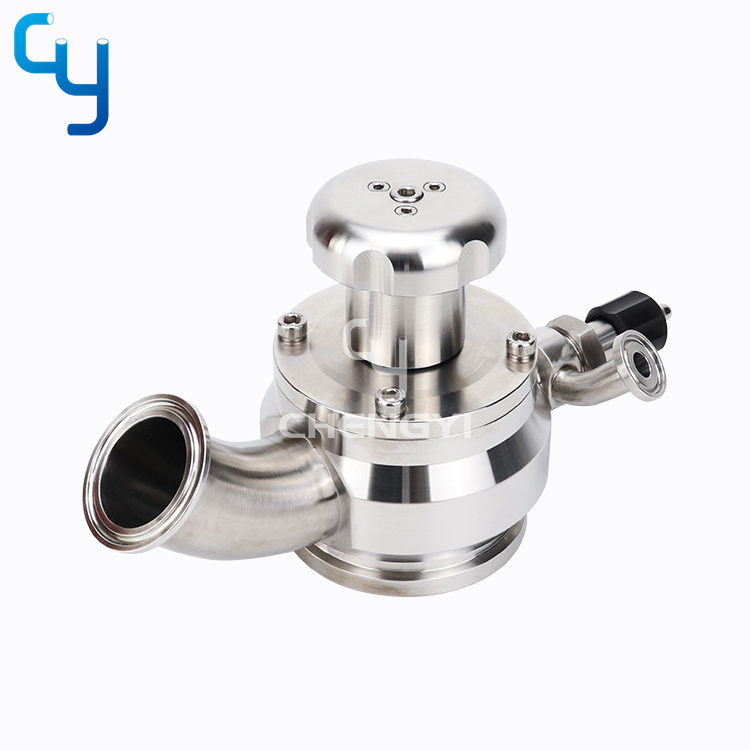

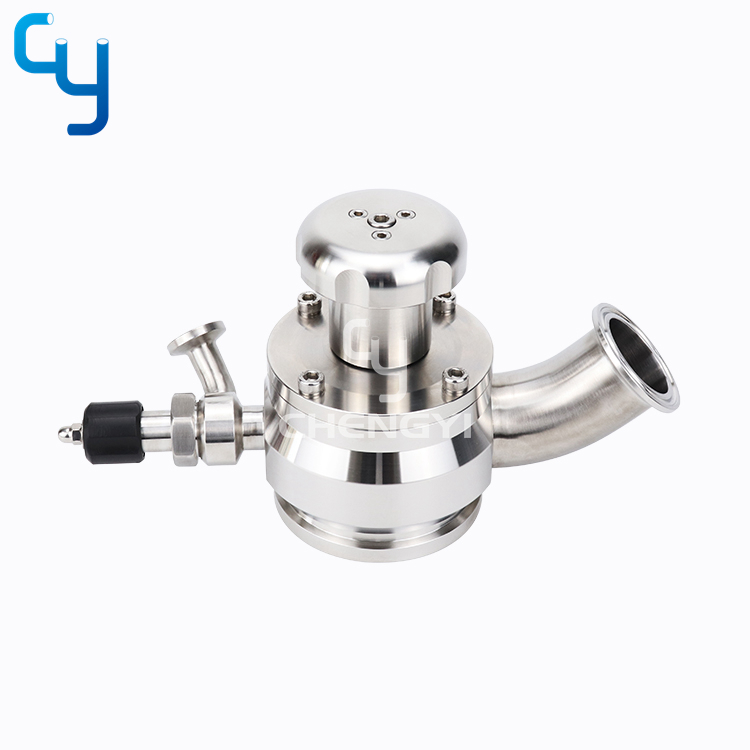

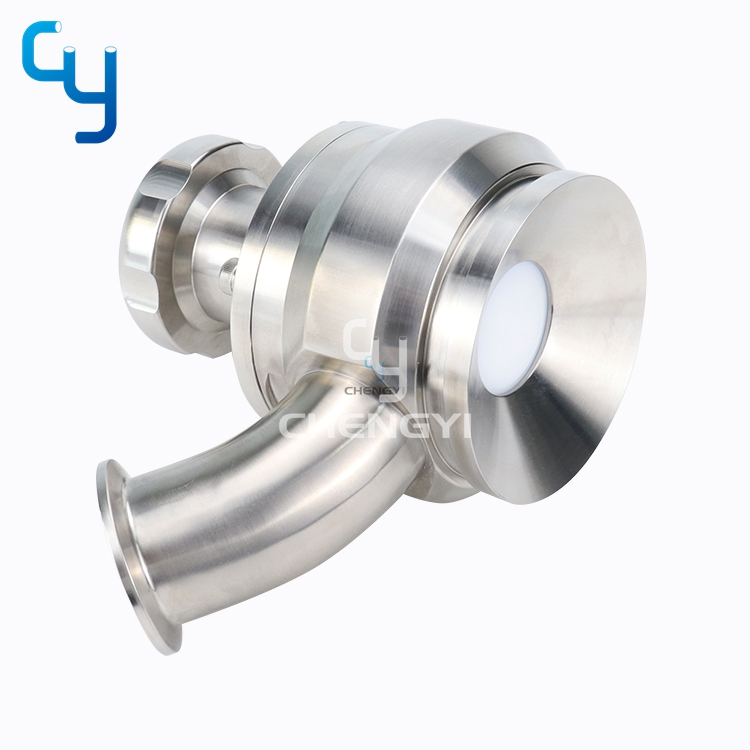

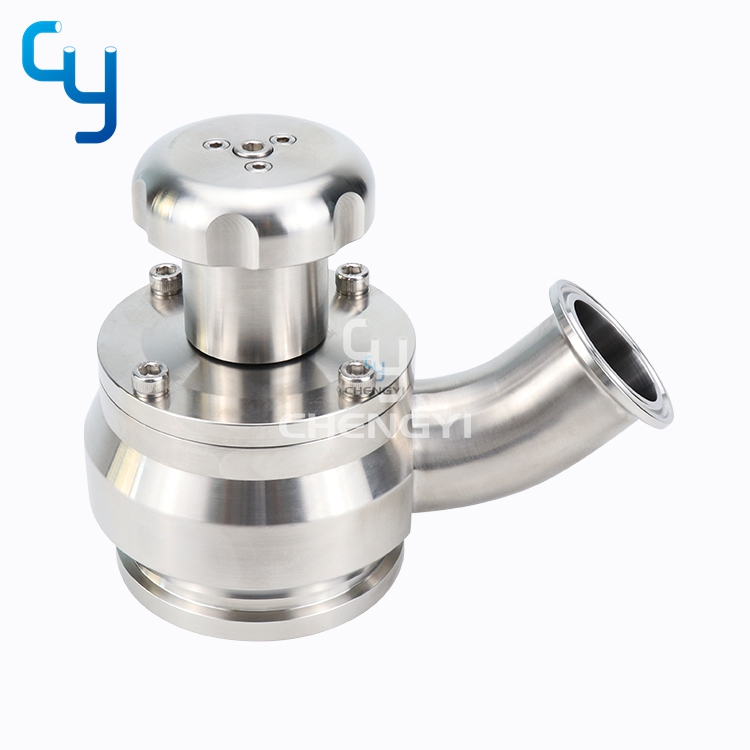

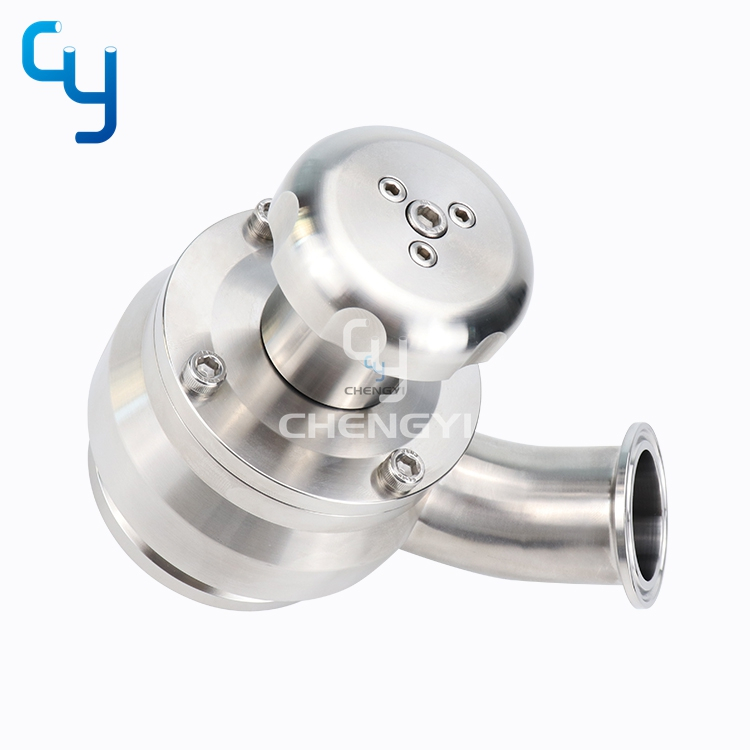

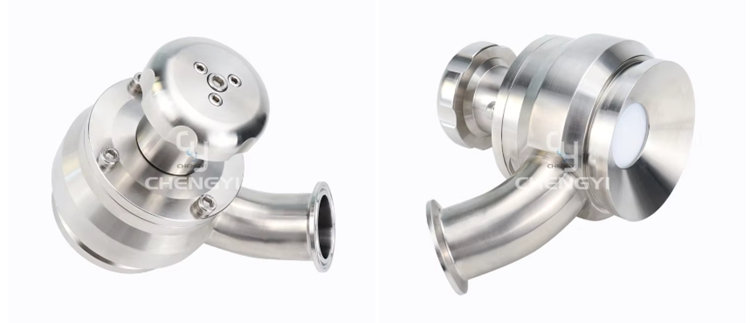

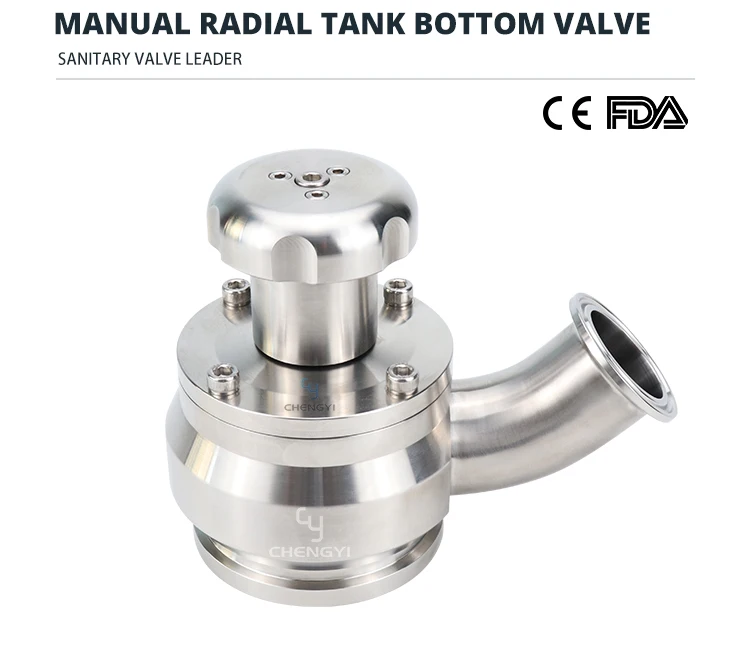

Manual radial tank bottom diaphragm valve
