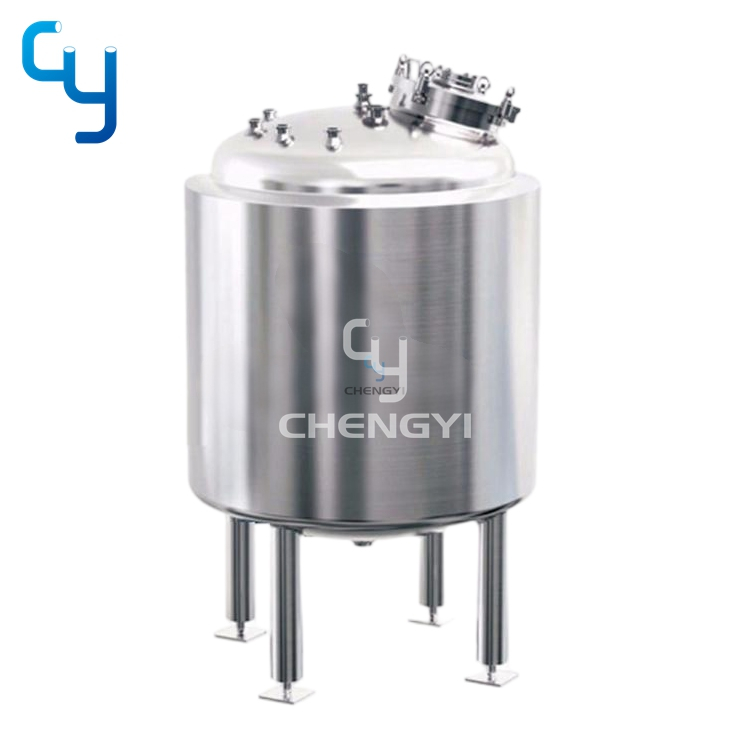

PW storage tank, which meets to GMP certificate requirements, is designed, manufactured and inspected in accordance with the pressure vessel standard (GB150-2011) and the steel welded atmospheric pressure vessel standard (NB/T 47003.1-2009).
PW storage tank adopts vertical circular tank. The top is standard elliptic or dished head, the bottom is standard conical,elliptic or dished head. The transition section of inner shell uses circular arc transition, which is without dead leg, easy to clean. It can be single layer, double layer (tank body and bottom head are with insulation), jacket type ( tank body and bottom head with jacket and insulation) or make according to customer’s requirements. Inner surface is mirror polish, which meets CIP, SIP and sanitary requirements.

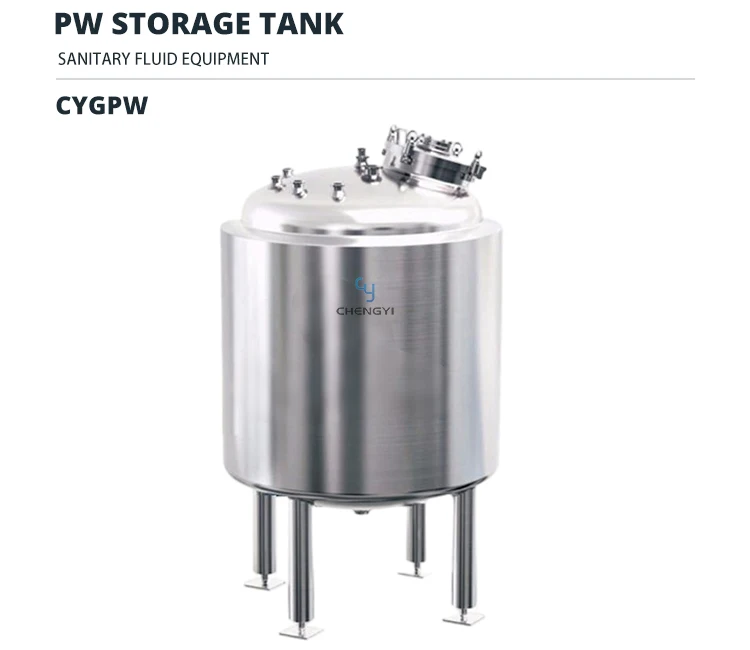

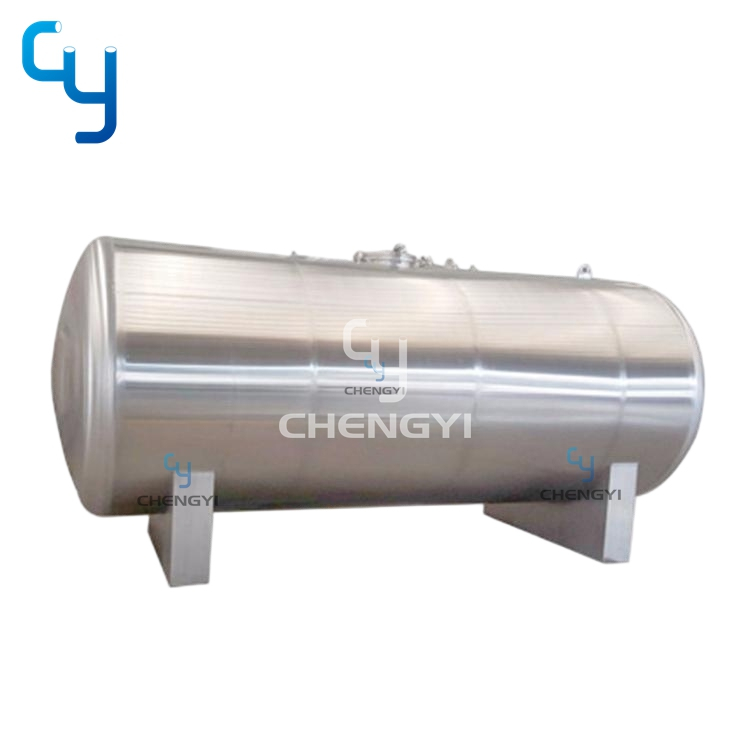

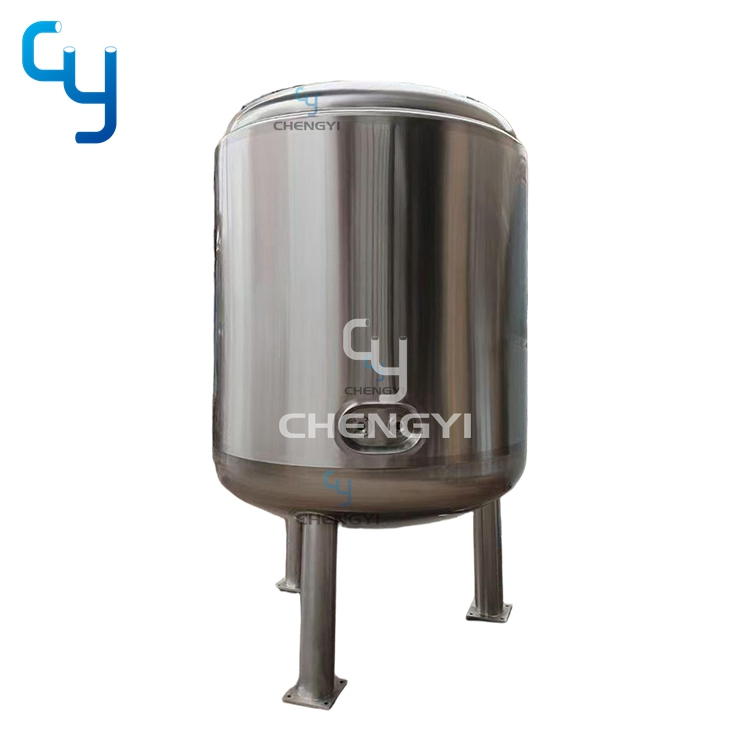

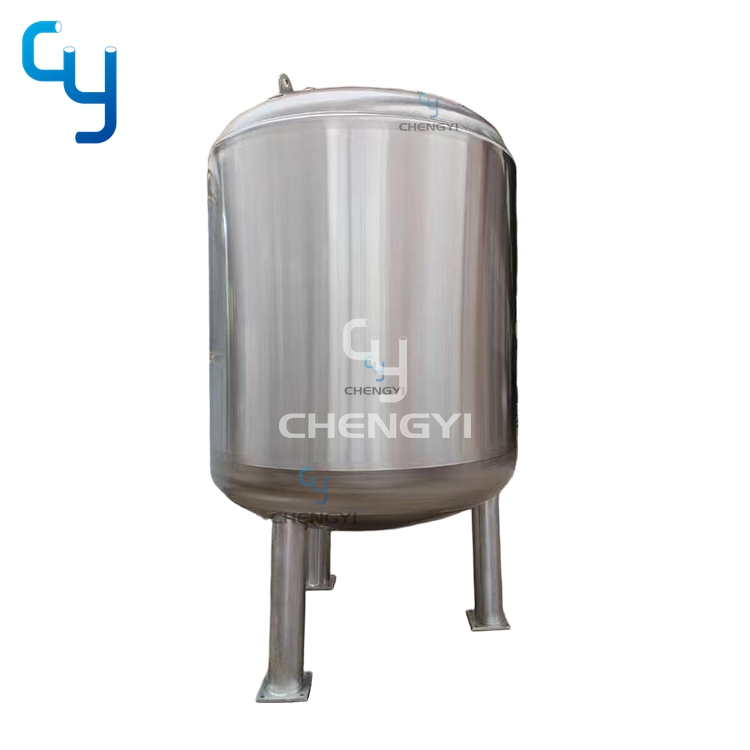

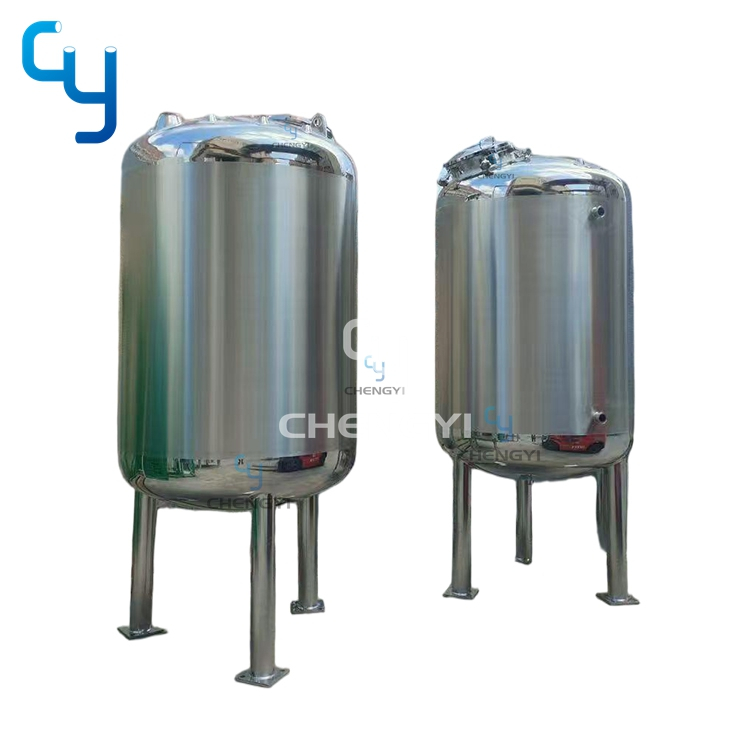

PW storage tank structure is vertical or horizontal structure.

Feature

Insulation material is rock wool (keep warm) or PU (keep cold).

The connection adopts Tri-clamp, inner shell use 304 or 316L, inner surface is 0.28~0.6μm by mirror polish,outer surface polished by satin finish or sand blasting according to customers’requirements.

Volume range is 1000L～20000L, and we can make other specification according to customer’s actual requirements.

Application

It is applied to PW storage, intermediate buffer in pharmaceutical industry. And it is also applied to room temperature and heating storage of milk, juice in food and beverage industries.

Tank optional configuration

PW storage tank can be optionally configured with sight glass, manhole, cleaning ball, vent filter, pressure gauge, thermometer (digital display or Dial type), level gauge and so on. It also can be configured according to customer’s requirements.

Design parameter

Material

Connection

Design parameter

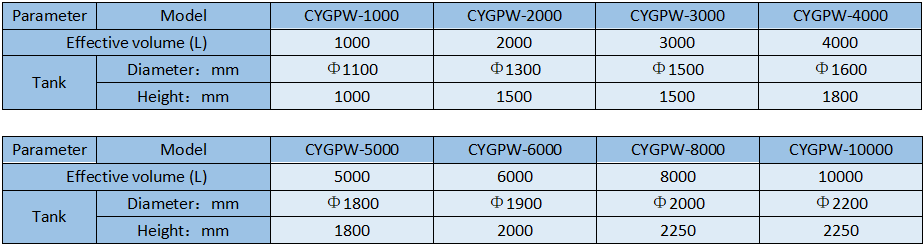

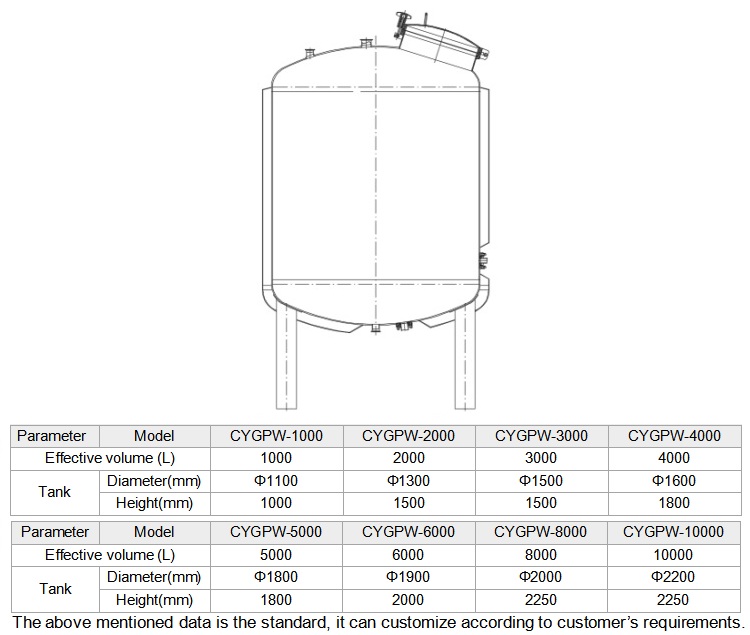

Normal Model and Main Technical parameters

The above mentioned data is the standard, it can customize according to customer’s requirements.
